Education & Development KitsDevelopment ToolsSingle Board Computers (SBCs)

Aaeon PICO-ADN4-B10-0001 4 x

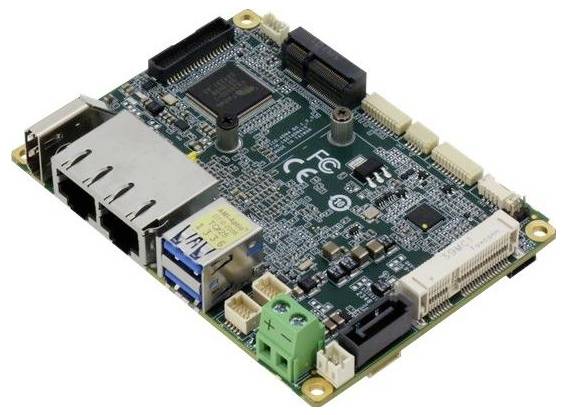

A small, rectangular computer motherboard with various ports, including Ethernet and USB connections, surrounded by multiple components.
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 379.00 / piece)
€ 379.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only available for business customers
14-day return policy included
Report legal concerns

Technical specifications

  • Concurrent Displays: 2
  • Other Features: DI/O x4, 4-pin FAN header
  • Microarchitecture: Alder Lake-N
  • Power Supply: Mating Connector: Terminal Block, 2-Pin
  • Base Power (TDP): 12 W
  • RAM: Slots: SODIMM (DDR5 4800 max. 16GB)
  • Expansion Slots: M.2: 2230 E Key
  • Expansion Slots: mPCIe: fullsize *1
  • Storage: 2,5“ SSD Interface: SATA
  • Storage: mSATA Slot: fullsize *1
  • Display Interfaces: Int.: LVDS 18/24bit 2Ch
Product type

SBC

Processor cores (No.)

4 x

Engineering Series Name

PICO-ADN4

Cooling

Passive

Operating voltage

12 V DC

CPU turbo clock speed (max.)

3.6 GHz

CPU

Intel Processor N97

CPU speed

2 GHz

Interfaces

2,5 GbE, GbE, USB 3.2 Gen 2x1 x2, USB 2.0 x4, RS-232/422/485 x2, RS-232 x2, SMBUS, , , , HDMI

Max. temperature

+70 °C

Min. temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 3639392 Aaeon PICO-ADN4-B10-0001 4 x

User & Safety Instructions

User & Safety Instructions 3639392 Aaeon PICO-ADN4-B10-0001 4 x

Description

PICO-ADN4-B10-0001 ;Pico-ITX, Intel Processor N97,-20...+70°C
