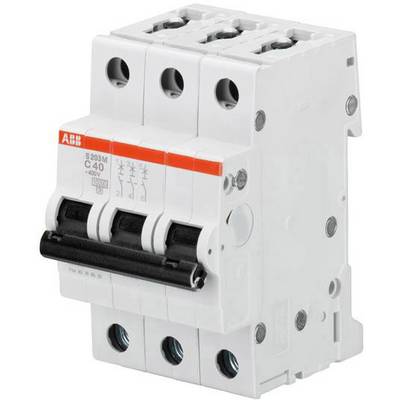

ABB 2CDS273001R0165 S203M-B16 Circuit breaker 3-pin 16 A 230 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
3
Release characteristics
B
Nominal current - rounded value
16 A
Nominal current
16 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.82
€ 20.18
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Highlights & Details
ABB circuit breaker S203 M-B16 B16 A 3-pin 10 kA
- Number of pins 3
- Trigger characteristic B
- Nominal current (in) 16 A
- Rated operating voltage: according to IEC 60898-1; according to IEC 60947-2 400 V AC 440 V AC
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
B
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Factory colour
Multicolour
- Dim
(W x H x D) 52.5 x 88 x 69 mm
- Content
1 pc(s)
- Insulation class
II
- Nominal voltage
230 V
- Width
52.5 mm
- Height
88 mm
- Depth
69 mm
- Weight
0
AC/DC
69 mm
16 A
400 V
50-60 MHz
B
440 V
3
3
3
3
FALSE
7.5 W
IP20
3
FALSE
0.75-35 mm²
0.75-25 mm²
-25-55 °C
FALSE
TRUE
3
10 kA
10 kA
25 kA
25 kA
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1826892 ABB 2CDS273001R0165 S203M-B16 Circuit breaker 3-pin 16 A 230 V
User & Safety Instructions
User & Safety Instructions 1826892 ABB 2CDS273001R0165 S203M-B16 Circuit breaker 3-pin 16 A 230 V
Description
The small Power Switch System Pro M compact S 200 M are current-limiting. You have two different trigger mechanisms, the delayed thermal release mechanism for overload protection and the electromechanical release mechanism for short-circuit protection. They are in different Ausfuhrungrn (B, C, D, K, Z), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), switching capacity (up to 10 kA at 230/400 V AC) and nominal currents (up to 63A). All of the safety switch for the product family are in accordance with the IEC/EN 60898-1 S 200M and IEC/EN 609 47-2 which allows it to be used for private, commercial and industrial applications.
The floor-mounted auxiliary contact can be installed on the S200M, around 50% to save space.
