Absima 1:8 Brushless Premium ESC "CATS-8V2" 200A Model car brushless speed control

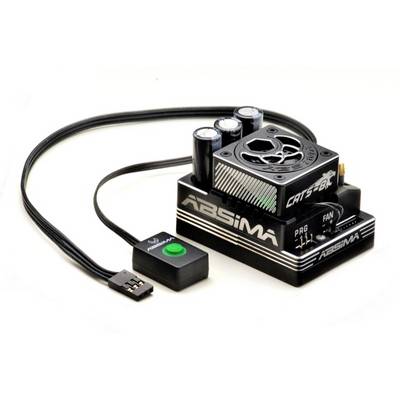

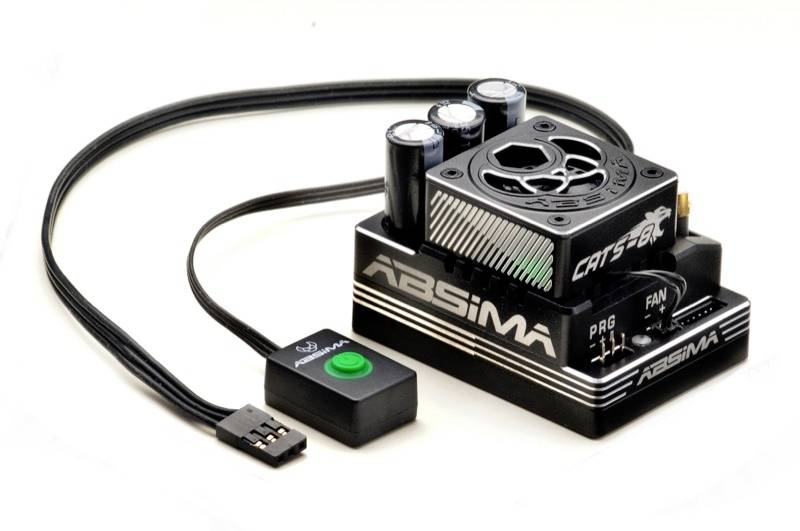

Black ABSIMA electronic speed controller with cooling fan, capacitors, wiring, and a small green push-button switch on a white background.

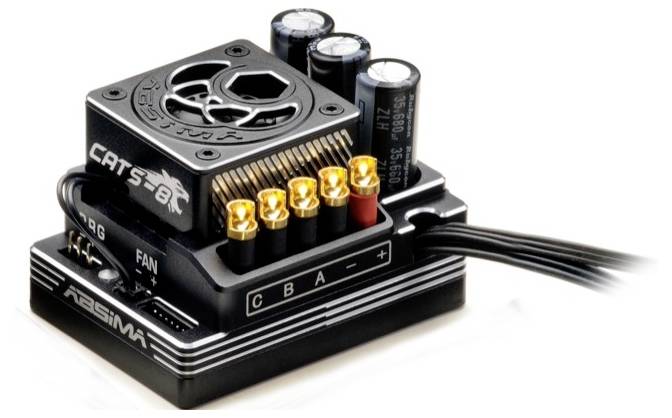

Brushless motor electronic speed controller with gold terminal connectors and attached wires on a white background.

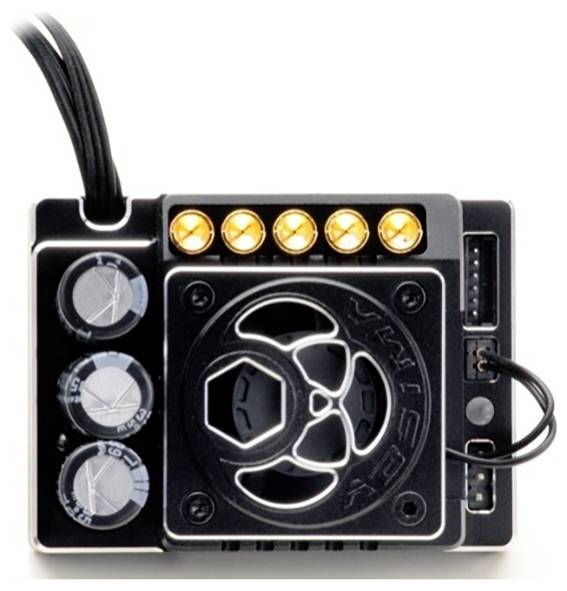

Black electronic module with five amber LEDs, three dials, and a central cooling fan on a white background.

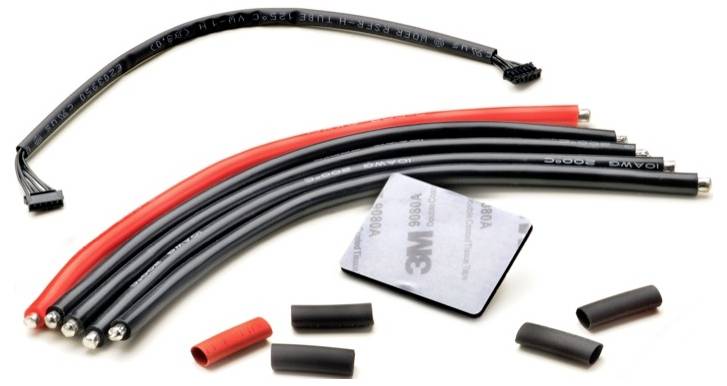

Assorted electrical wires and heat-shrink tubing with a 3M adhesive pad, shown as a cable management kit.

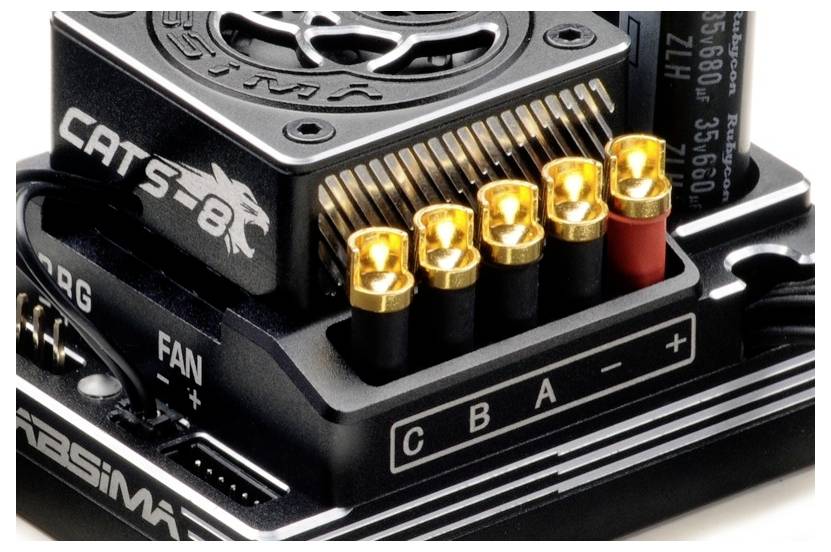

Close-up of a CAT'S-B8 electronic device with five illuminated gold connector pins labeled C, B, A, -, and +.
1/5
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
4 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 219.99 / piece)
€ 219.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 4 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Absima 1:8 brushless premium line ESC "CATS-8V2" 200A - upper class in model sports

  • Advanced cooling system for constant performance;More than 33 adjustable parameters for individual setup; Extraordinary large boost & turbo timing control; Supports several driving and power modes; Sensor and sensor-free operation

Technical specifications

Product type

Model car brushless speed control

Max. operating voltage

22.2 V

Dim

(L x W x H) 60 x 48 x 36.2 mm

Min. operating voltage

7.4 V

Weight

142 g

Connector system

Open cable ends

Permanent current

200 A

Operating voltage

7.4 - 22.2 V

Forward / reverse / brake

Yes (programmable: Forward/brake or forward/brake/reverse)

Manufacturer part #

2110101V2

No. of LiPo cells

2

Width

48 mm

Height

36.2 mm

Length

60 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3760329 Absima 1:8 Brushless Premium ESC "CATS-8V2" 200A Model car brushless speed control

Description

CATS-8 Competition ESC - Maximum performance for all, who want to drive premium! The CATS-8 Competition ESC is a powerful high-end speed controller for 1/8 RC cars and was developed especially for racing applications. Due to reliable power transmission, efficient heat management and extensive adjustment options, this regulator provides for a particularly precise and constant driving behavior. Together with a Absima motor and a LiPo-battery the ESC unfolds its full power rating and provides optimal acceleration as well as maximum control on the track. Ideal for ambitious RC racers looking for a powerful, precisely adjustable and reliable 1/8 ESC.

This text is machine translated.

Scope of delivery

  • 1 pieces Cats ESC including fan
  • 5-way 10AWG motor & battery cable
  • 1 x sensor cable 200mm
  • 3M adhesive pad
  • User manual
