Absima CR1.8 Chassis Brushed 1:8 RC model car Electric Crawler 4WD RtR 2,4 GHz
EAN:
Part number:
Item no:
Number
Total (€ 605.00 / piece)
€ 605.00
incl. VAT
14-day return policy included
Highlights & Details
1:8 Green power electric model car RC Crawler "YUCATAN CR1.8" DARK GRAY 4WD RTR
- Programmable 80 A Hobbywing speed controller
- 2-speed manual transmission
- Locking differentials front & rear (independant of each other)
- Lighting front/rear portal axles
- 25 kg steering servo with metal drive
Technical specifications
- Approach angle 65°
- Departure angle 48°
- Steering angle max. 43°
- Rims: 2.2 beadlock-rims with 12 mm standard hex
- Supersoft tires - maximum traction
- Shock absorber: Aluminum oil pressure shock absorber
- Damper oil viscosity: 500CPS
- Damper Insertion Length 100 mm
- Gear ratios: 2-speed (Hi 1/15.1 / Lo 1/37.1) remote controlled
- Gear: Module 0.8/32dp
- Pinion: 16Z / main gear wheel 44T
- Speed controller: Hobbywing 80A brushed/waterproof with T-plug (programmable)
- BEC 6V@4A;2S-3S* LiPo batteries can be used)
- Metal gears: (digital & waterproof)
- Product type
RC model car
- Motor type
Brushed
- Model craft type
Crawler
- Scale
1:8
- Drive
4WD
- Motor type
775 "high torque"
- Dim
(L x W x H) 63.5 x 29 x 30 cm
- Model version
RtR
- Speed (max.)
30 km/h
- Weight
4.2 kg
- Age category
14 years and over
- Ground clearance
95 mm
- Remote control
6-channel 2.4 GHz (4.8 - 12.0V LiPo-enabled)
- Frequency
2,4 GHz
- Factory colour
Dark grey
- Model
YUCATAN Cr1.8 Crawler
- Engine type
Electric
- Width
29 cm
- Height
30 cm
- Length
63.5 cm
- Wheelbase
370 mm
- Tyre width
50 mm
- Tyre Ø
13.2 cm
- Required accessories
Drive battery
Charger
Transmitter battery
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373306 Absima CR1.8 Chassis Brushed 1:8 RC model car Electric Crawler 4WD RtR 2,4 GHz
Description
The most successful crawler chassis CR3.4 (Sherpa / Khamba) grows to CR1.8 !
With THE YUCATAN now true size is shown, because here comes a high-end "Ready-to-Run" Crawler in the scale 1:8. BUT YUCATAN also means that tried and tested is preserved and thus all the extraordinary technical highlights from the small CR3.4 brothers Sherpa and Khamba can be found again in the CR1.8. Through the 1:8 chassis even more extreme maneuvers are now possible and through the size of the body details could be emphasized even better, which give the vehicle a beautiful driving picture.
This text is machine translated.
With THE YUCATAN now true size is shown, because here comes a high-end "Ready-to-Run" Crawler in the scale 1:8. BUT YUCATAN also means that tried and tested is preserved and thus all the extraordinary technical highlights from the small CR3.4 brothers Sherpa and Khamba can be found again in the CR1.8. Through the 1:8 chassis even more extreme maneuvers are now possible and through the size of the body details could be emphasized even better, which give the vehicle a beautiful driving picture.
This text is machine translated.
Features
- 80 A speed controller by Hobbywing fully programmable
- Powerful brushed motor of size 775
- Maximum speed of over 30 km/h in 3S LiPo mode
- 5 mm CNC-machined aluminum frame
- Heavy-duty aluminum 4-handlebar suspension system
- Oil-filled aluminum shock absorbers with 5 mm piston rods
- Shock springs in medium strength (SOFT & HARD are available as an option)
- Stabilizer set included
- Portal axes
- Hydraulic steering shock absorber design
- 25 kg steering servo with aluminum servo arm
- 3 pieces 0.9 kg mini-servos (waterproof) for the 2-speed manual transmission and The differential locks/unlock buttons are already installed
- 2-speed manual transmission with standard gear ratio 1/37.1 (low-speed) to 1/15.1 (high-speed)
- Lock and unlock the front and rear differentials independantly of each other, all electronically via the remote control and 2 built-in mini-servos
- Aluminum motor bracket
- Adjustable slipper clutch
- The battery compartment has a dimension of approx. (L/W/H) 160 x 48 x 25mm and is thus designed for 2S or flat 3S LiPo batteries
- The 6-channel radio system with 2.4 GHz gives you total control over your vehicle - whether light unit, 2-speed transmission, differential locks or setting the maximum speed

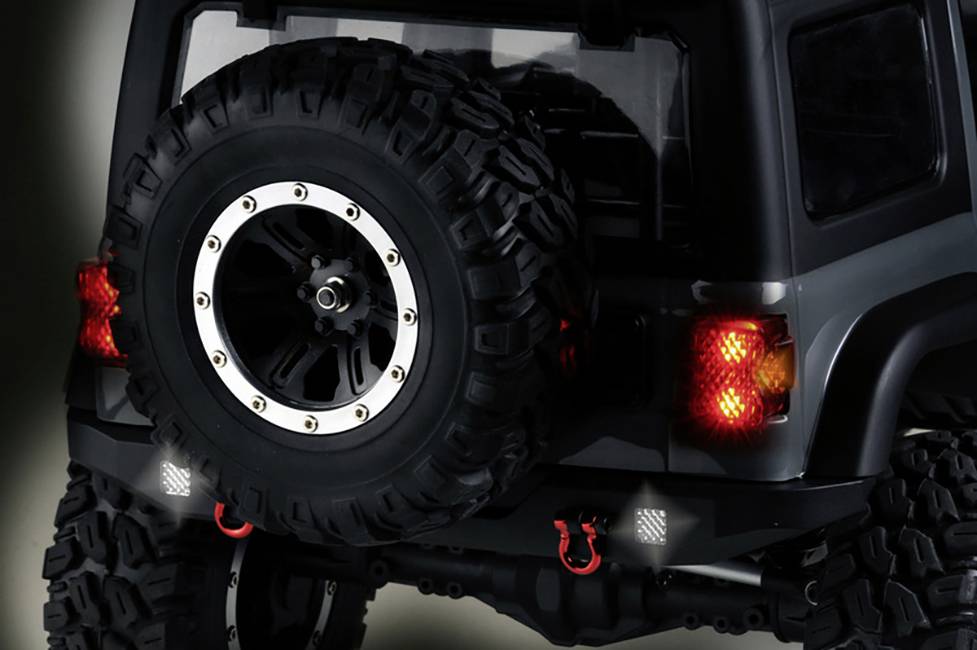

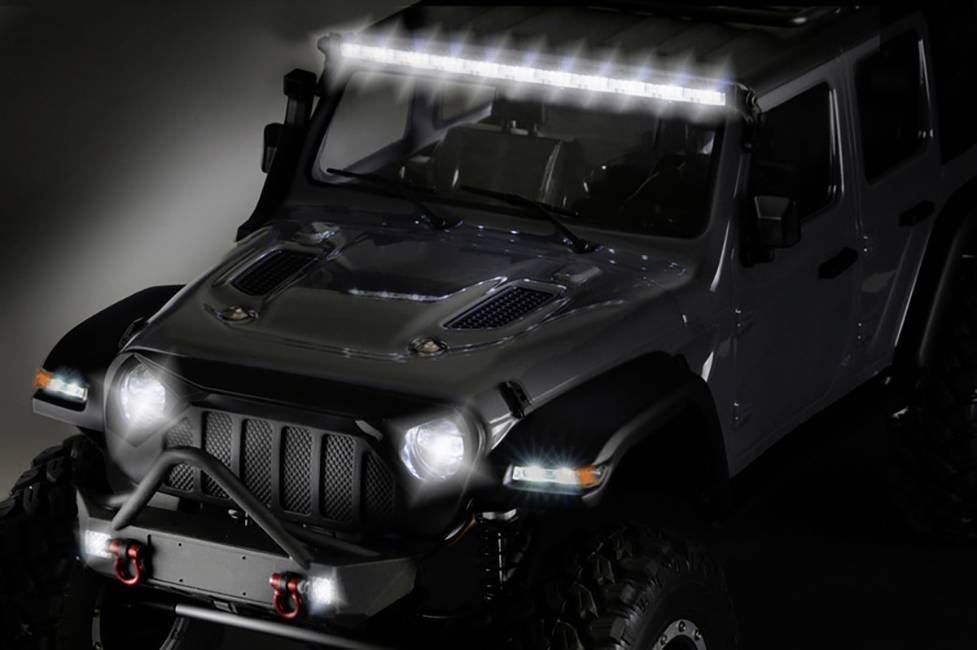

- Lighting unit with front lights, rear lights, indicator lights (when steering is moving), position lights, hazard lights (front and rear), brake light, light strip on the roof
- 2.2" beadlock wheels with aluminum rings and 12-bolt design
- Super-soft tires with realistic side wall flex for maximum traction on everyone Rocks
- 12 mm aluminum standard wheel trailer suitable for all common crawler rims (observe portal axles!)
- Rock lids and molded inner fenders protect the chassis from dirt and Damage
- 1.2 mm PC "Flip-Top" body with magnet and screw holder

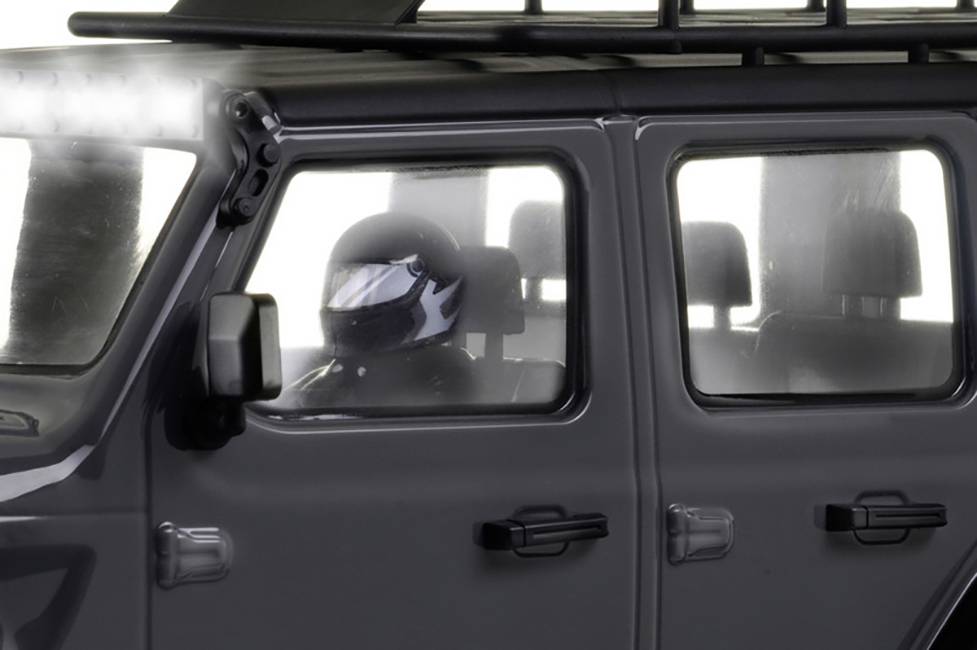

- Complete interior including driver figure
- Many attachment parts like towing hook (front and rear), rear view mirror, snorkel, full spare wheel, roof carrier, Tank filler neck, door handles, hood holders, number plates.
Scope of delivery
- 1 x Absima CR1.8 YUCATAN RTR
- 1 x 6-channel 2.4 GHz remote control system
- Stabilizer set front/rear
- 1 x wrench and 1 x hexagonal key
- Sticker sheet
- OPERATING INSTRUCTIONS (DE/EN/FR).
Hints
No toys. Recommended for ages 14 years and over.
System requirements
- Drive battery NiMH or LiPo
- Charger for drive battery
- 4 x AA-Mignon cells for the remote control
- Optional program box for setting the speed controller parameters.
