Name: Absima Revenge CTM V3 Model car brushless motor kV (RPM per volt): 3880 Turns: 10.5
Brand: Absima
SKU: 3404487
Availability: BackOrder

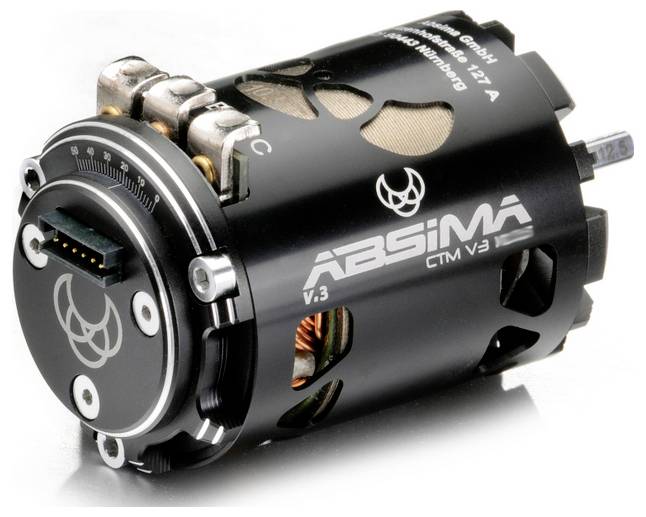

'Black electric motor with silver details, marked with "Absima CTM V3". Shows connections and design elements.'

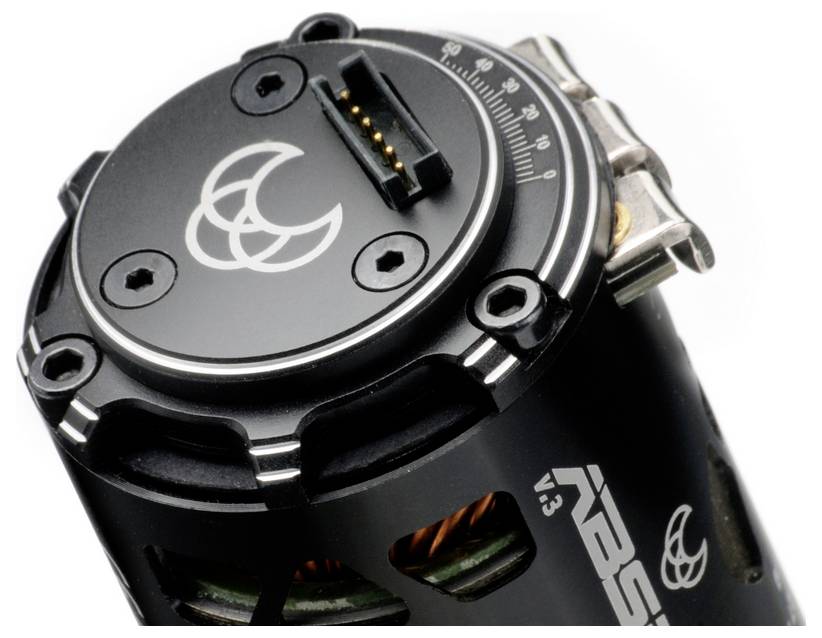

'Close-up of a black metal component with symbols and numbers. Electronic connections and screws visible.'

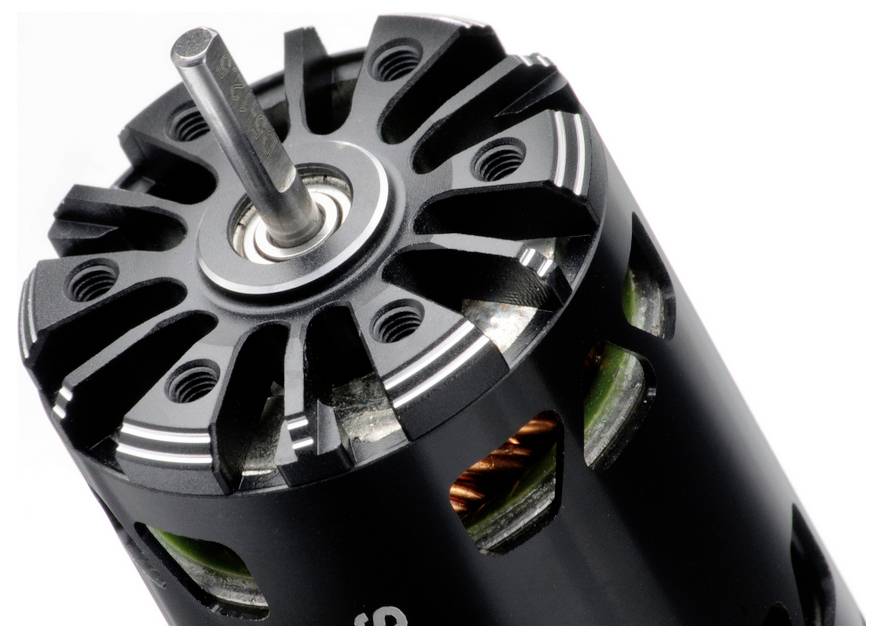

Black electric motor with visible copper coils and cooling fins, with a shaft bearing on top. Primarily used for driving models.

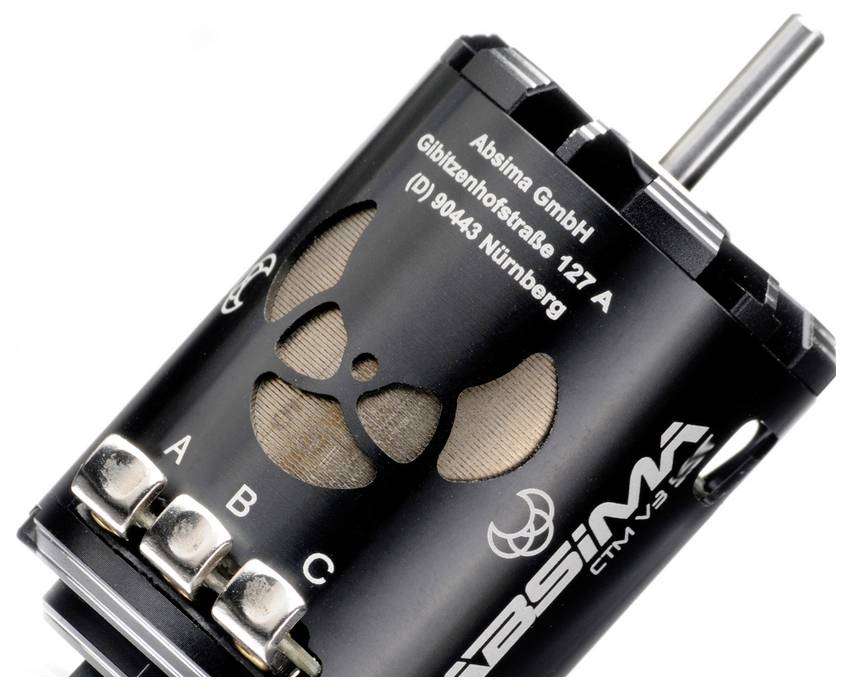

Electric motor by Absima with silver accents, product designation and address, suitable for model cars.<br><br>Note: The translation maintains the original meaning, using British English terminology while preserving the structure of the original German text.

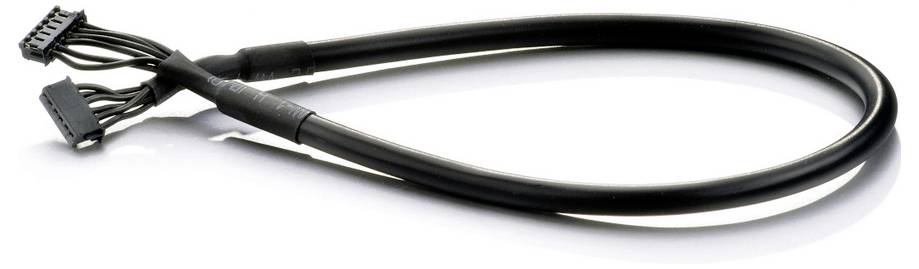

Black power cable with multiple plug connections at the ends. Used for connecting computer components.

1/6

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 99.99 / piece)

€ 99.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Absima 1:10 high performance brushless motor "Revenge CTM V3" 10.5T stock

CNC milled lightweight housing
High torque stator
Extremely stable and balanced rotor
Optimized air cooling
Stainless Steel Bearings
Silver-plated soldering tags
Adjustable motor timing
Sensor-controlled
2 pin
Designed for maximum performance

Technical specifications

Turns: 10.5T
Rpm per V: 3880 KV
Power 330 W
Continuous current 45 A
Efficiency: 95%
Operation (VOLT) 1-3S LiPo
Pole (motor) 2 pole
Sensor
Adjust timing
Ø Shaft 3,175 mm
Wavelength 15.2 mm

Product type: Model car brushless motor

kV (RPM per volt): 3880

Shaft Ø: 3.175 mm

Output power: 330 W

Dim: (Ø x L) 35.8 mm x 51.8 mm

Efficiency: 95 %

Weight: 165 g

Manufacturer part #: 2130059

Length: 51.8 mm

(Ø): 35.8 mm

Turns: 10.5

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3404487 Absima Revenge CTM V3 Model car brushless motor kV (RPM per volt): 3880 Turns: 10.5

Description

NEW DESIGN - LESS WEIGHT - EXCELLENT PERFORMANCE ! YOUR ARGUMENTS FOR THE REVENGE V3 ENGINE SERIES · One year of development is stuck in the new generation of brushless REVENGE CTM V3 competition engines. On the outside, we have changed the housing design to reduce weight and ensure maximum cooling and excellent heat dissipation. The heart of the engines is a new, unique high torque stator to achieve a Maximum of performance and speed. Of course, all motors are controlled by sensor (sensor cable included) with adjustable timing and are supplied with stainless steel ball bearings.

This text is machine translated.
