Name: Absina 910002 Extension 4 mm² Cable length 5 m
Brand: Absina
SKU: 3411849
Availability: InStock

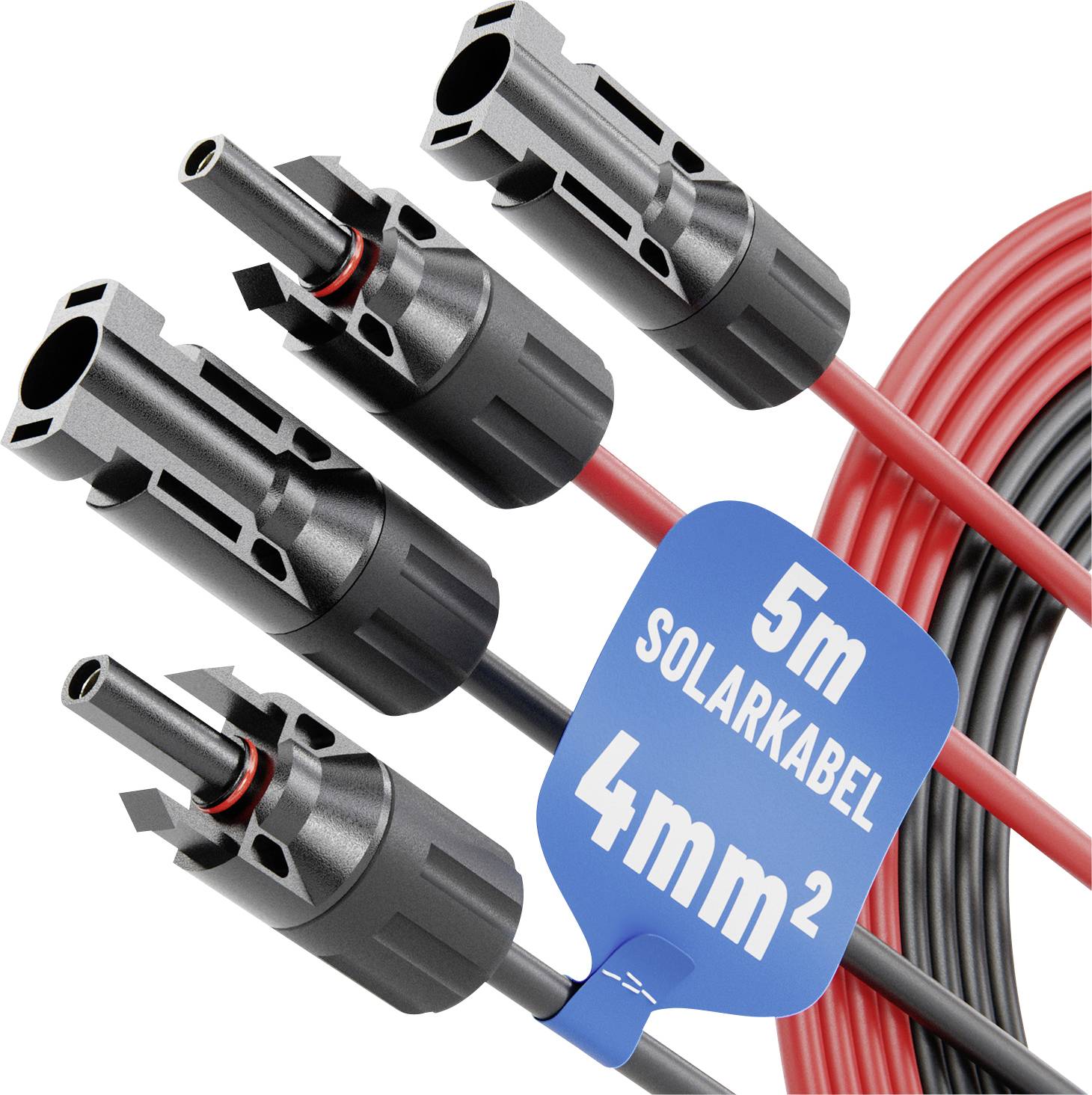

'5m Solarkabel 4mm²' red and black cables with connectors, designed for solar panel connections, highlighting length and gauge.

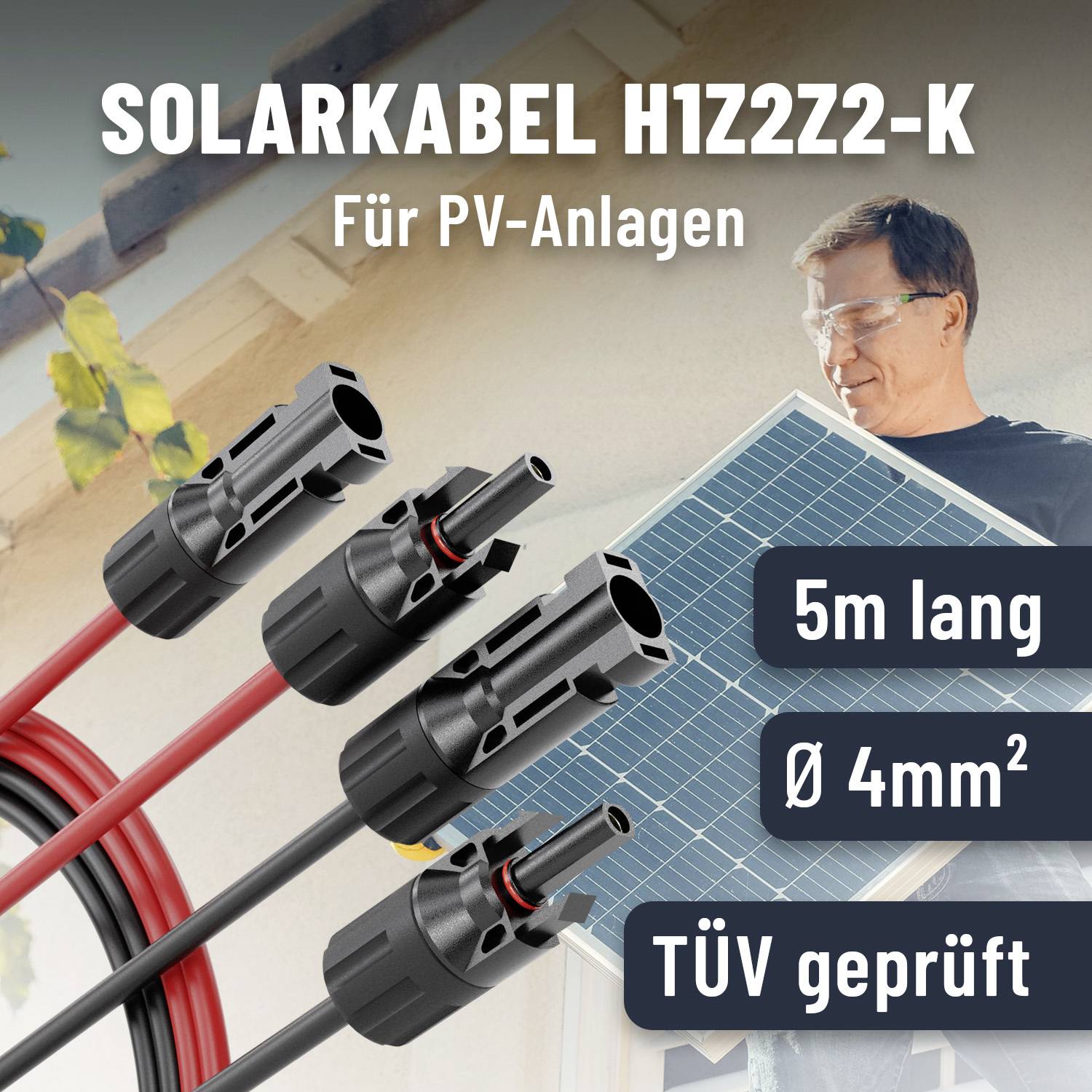

'Man holding solar panel; Text shows details of solar cable H1Z2Z2-K: 5m long, diameter 4mm², TÜV certified, for photovoltaic systems.'

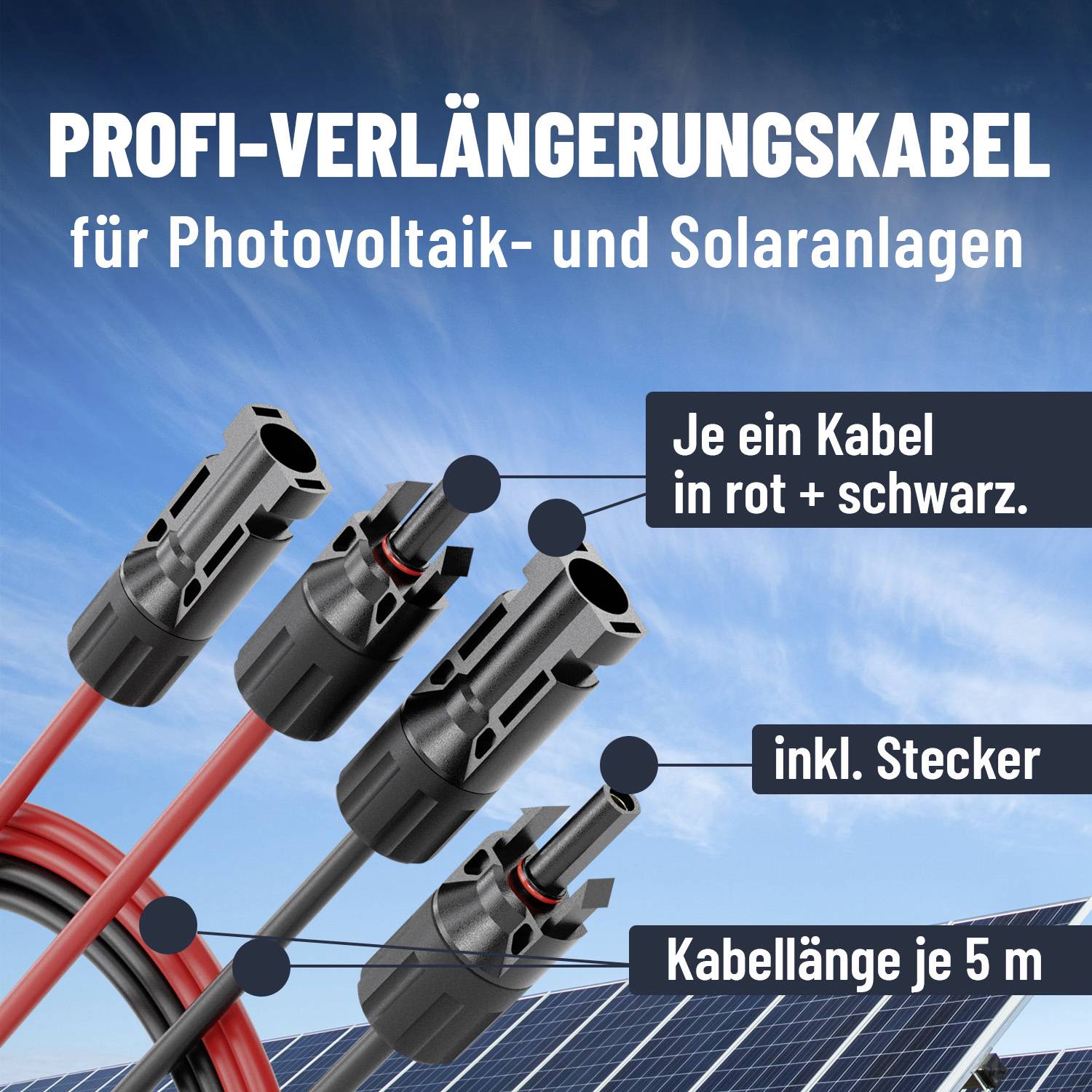

'Professional Extension Cable for Photovoltaic and Solar Systems' with red and black cable, including plug, length 5 m.

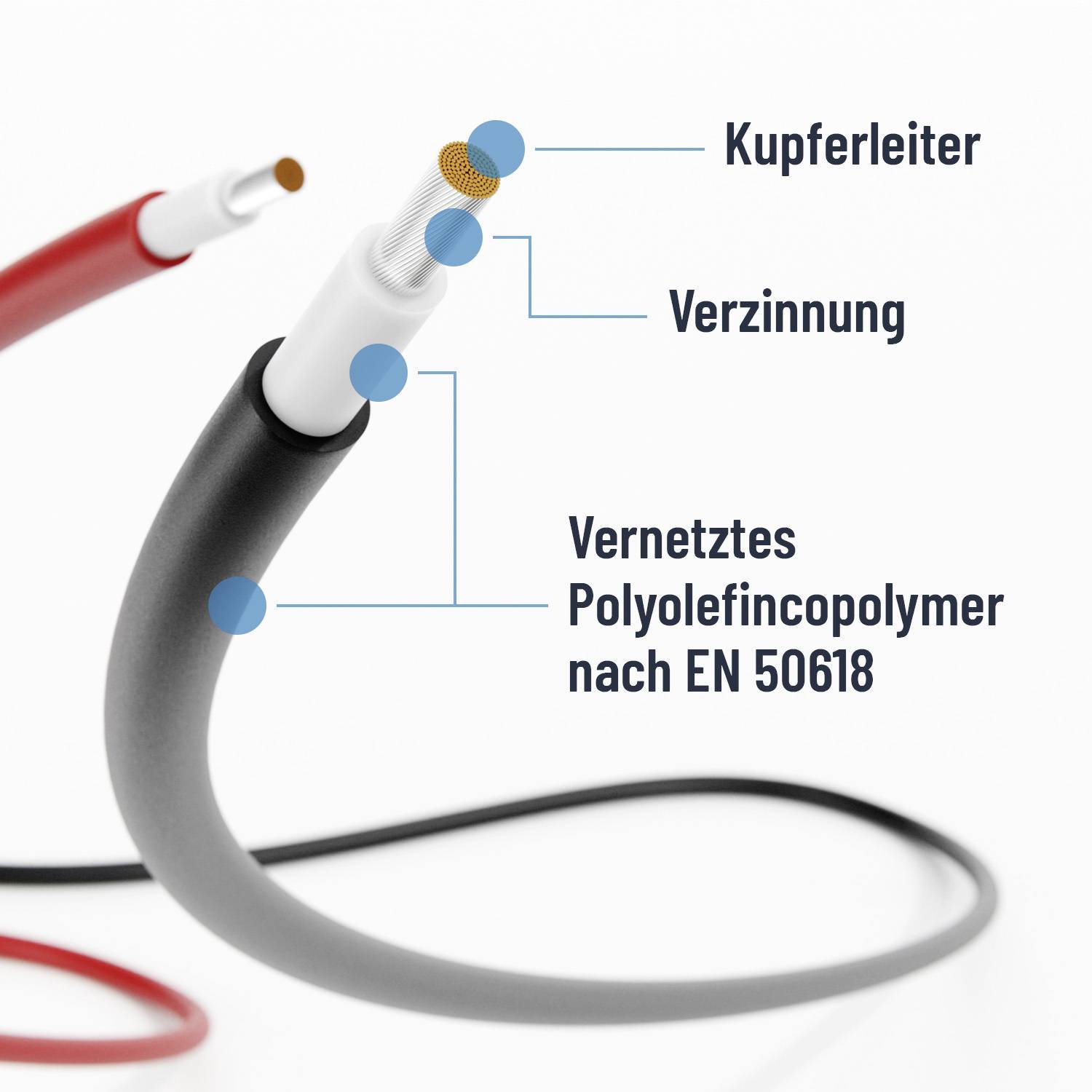

A cable cross-section reveals copper conductors, tin plating, and cross-linked polyolefin copolymer in accordance with EN 50618.

Worker in a yellow vest holding a black cable. Text: 'Flexible & robust. Perfectly suitable as an outdoor cable'. Background: Landscape.

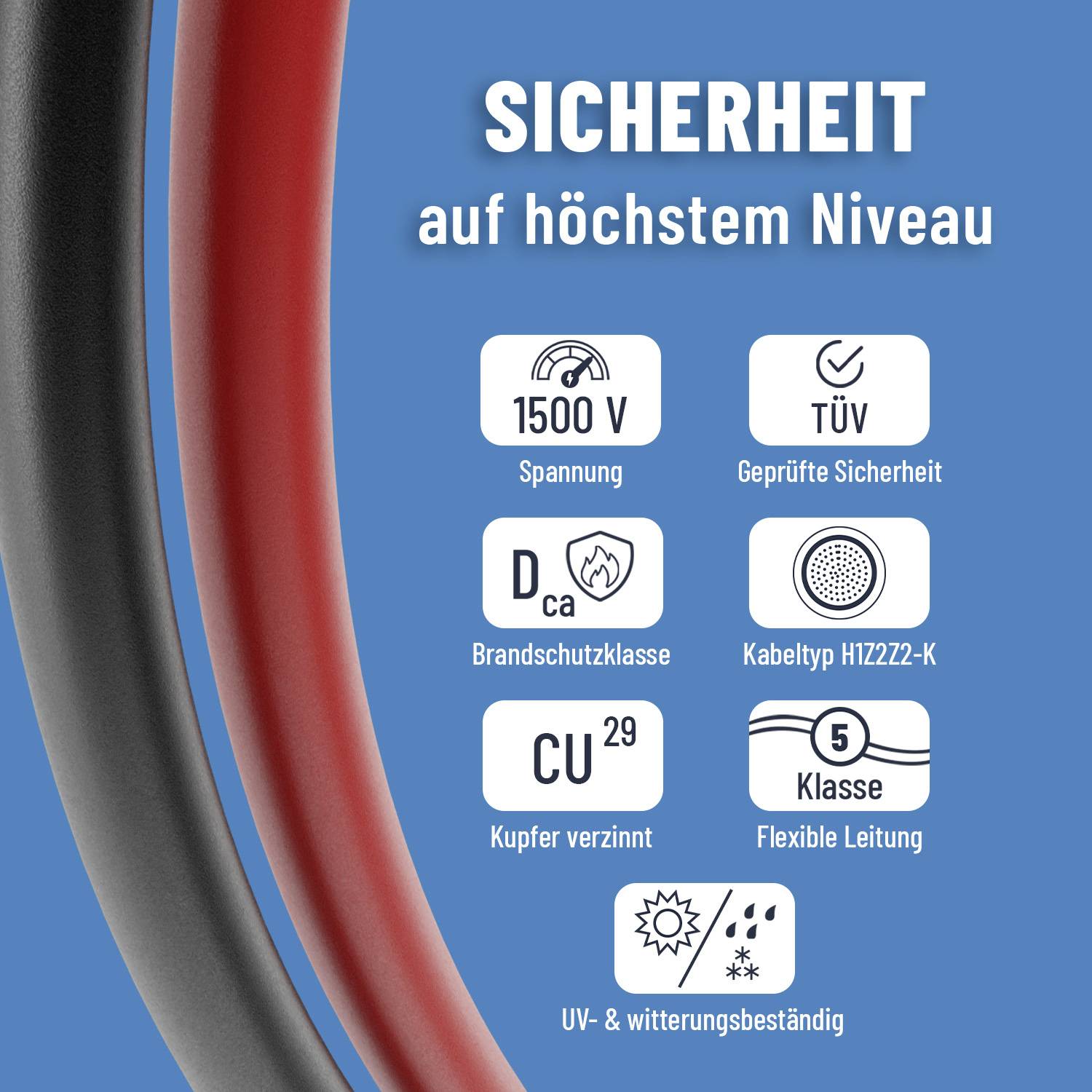

Black and red cable in front of a blue background. Text: 'Safety at the Highest Level'. Electrical voltage and material specifications.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 26.99 / piece)

€ 26.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Absina solar cable set MC4

- Thanks to excellent conductivity and corrosion resistance, the photovoltaic cable ensures efficient energy transmission - suitable for use in all photovoltaic systems, balcony power plants or for cabling solar modules.
- The 4mm² solar cable is UV-resistant and has a high temperature resistance of -40°C to +90° - thus the solar cable can be used outdoors.
- Solar cable for mobile or fixed installation in photovoltaic systems in accordance with EN 60364-7-712 - Approved for use indoors, outdoors, in hazardous areas, in industrial or agricultural systems.
- Wire insulation & sheath material: Cross-linked polyolefin copolymer / conductor material: Tin-plated copper / conductor class: 5 fine-wired / rated voltage DC: 1.5kV / test voltage: 6.5kV / halogen-free / short-circuit and ground-proof.

Technical specifications

Product type: Extension

Cable length: 5 m

Cross section per core: 4 mm²

Cross section: 4 mm²

Cable type: H1Z2Z2-K

Halogen-free: Yes

Nominal voltage: 1500 V

Nominal voltage U0: 1000 V

Shielded: No

Sold per metre: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3411849 Absina 910002 Extension 4 mm² Cable length 5 m

User & Safety Instructions

User & Safety Instructions 3411849 Absina 910002 Extension 4 mm² Cable length 5 m

Description

Solar cables are an essential component of photovoltaic systems to transport the generated power from the solar modules to the inverters and other consumers. In order to ensure maximum flexibility and range of the system, it may be necessary to extend the cables. Our solar cable extension offers you the ideal solution for this

This text is machine translated.
