Buy Adam Hall K4CATBOXXM3 Audio/phono, DMX, XLR Adapter [1x RJ45 - 4x XLR plug 3-pin] 0.3 m

A black audio splitter cable branches from one rectangular plug into four smaller connectors, typically used for professional audio equipment.

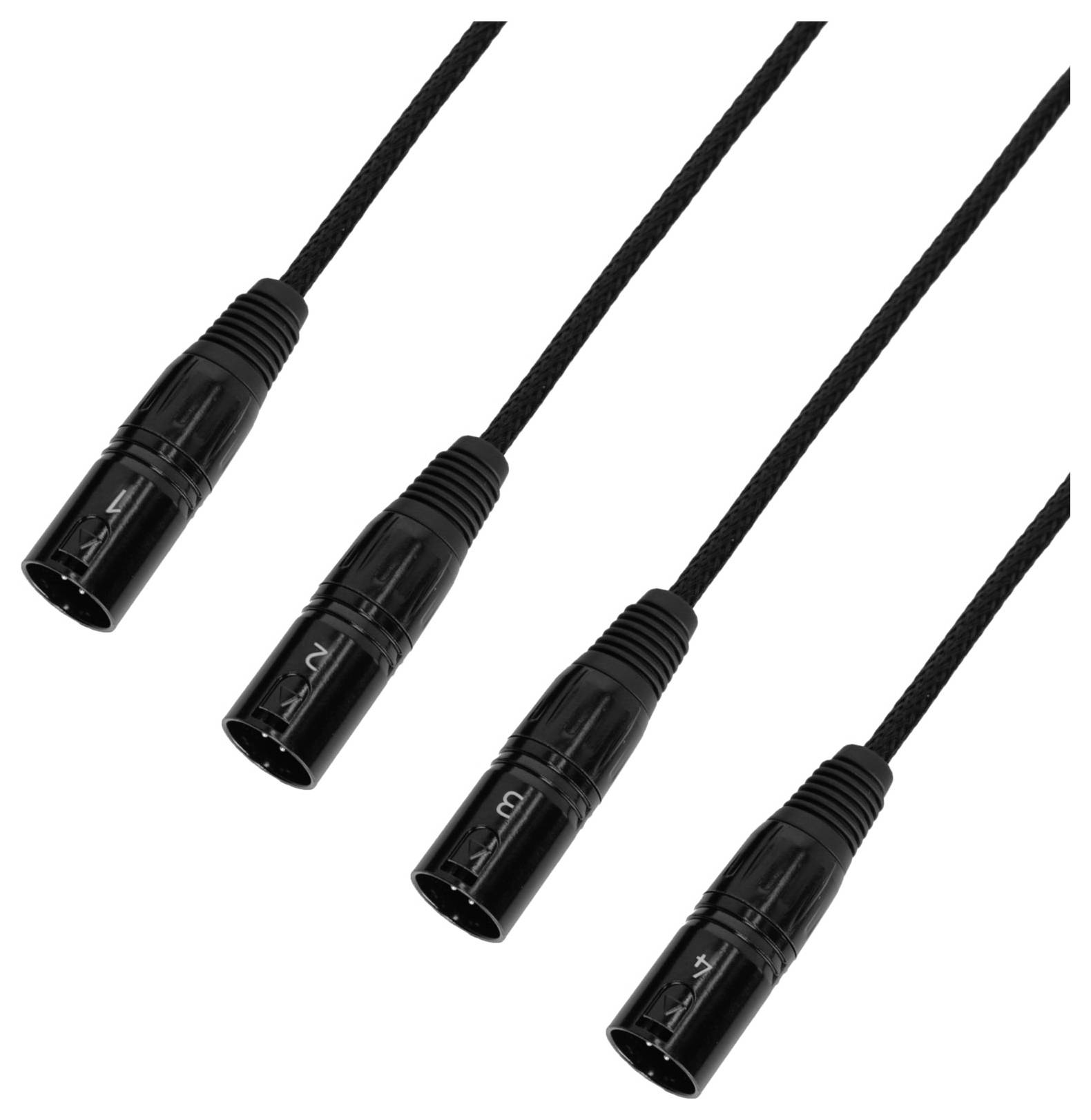

Four black XLR cables with connectors are aligned and shown against a white background, suggesting connectivity or audio equipment use.

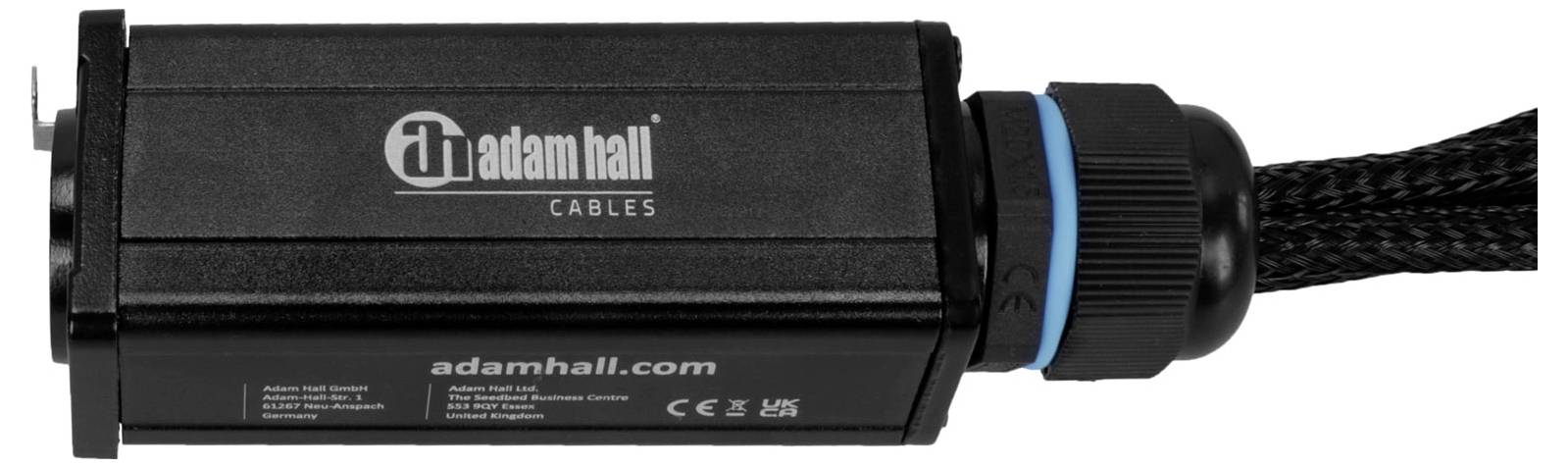

The image shows a black 'adam hall cables' connector with branding and web address 'adamhall.com', featuring a blue accent ring.

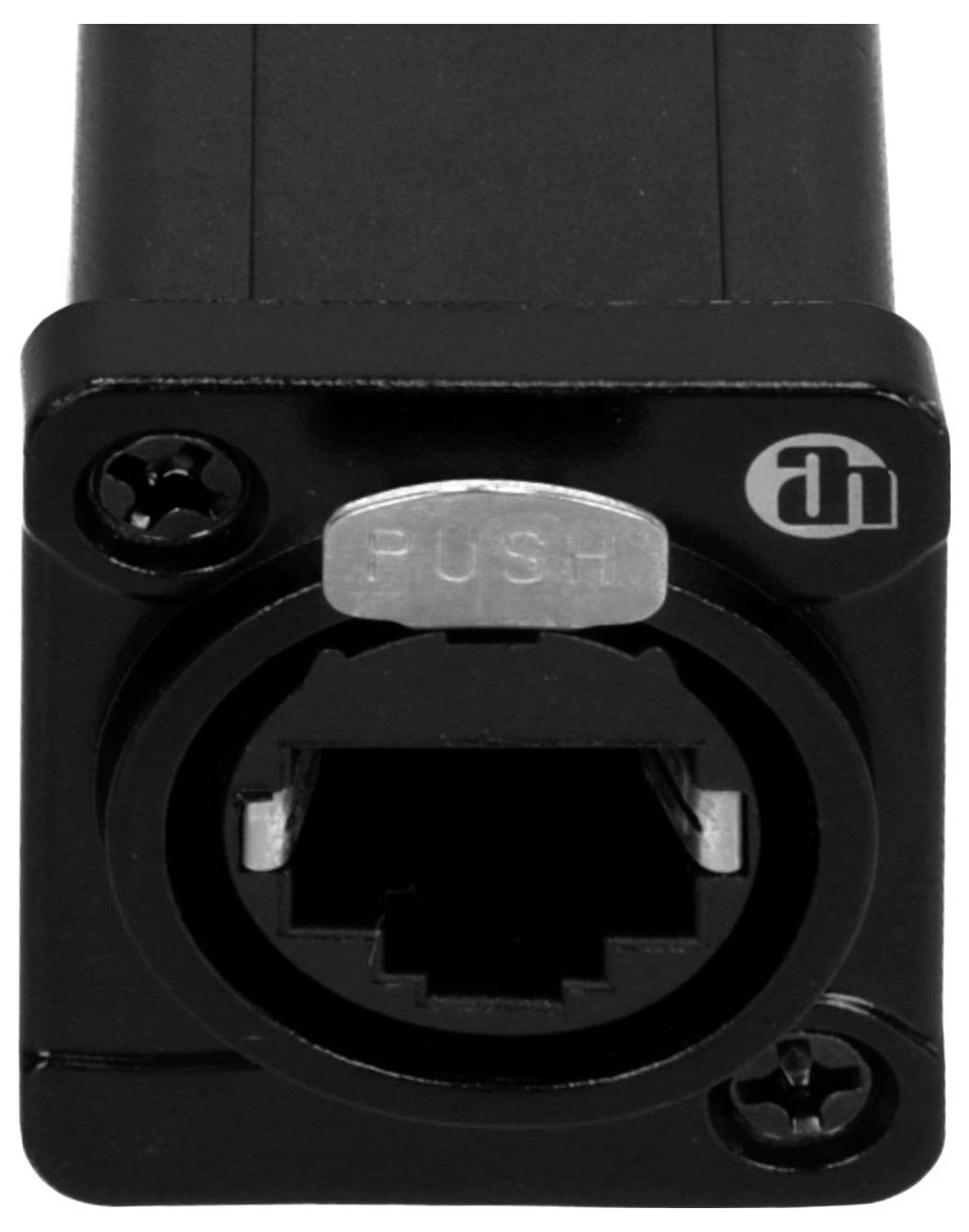

A close-up image of a black RJ45 connector on a panel, featuring a 'PUSH' release tab and two screws for secure attachment.

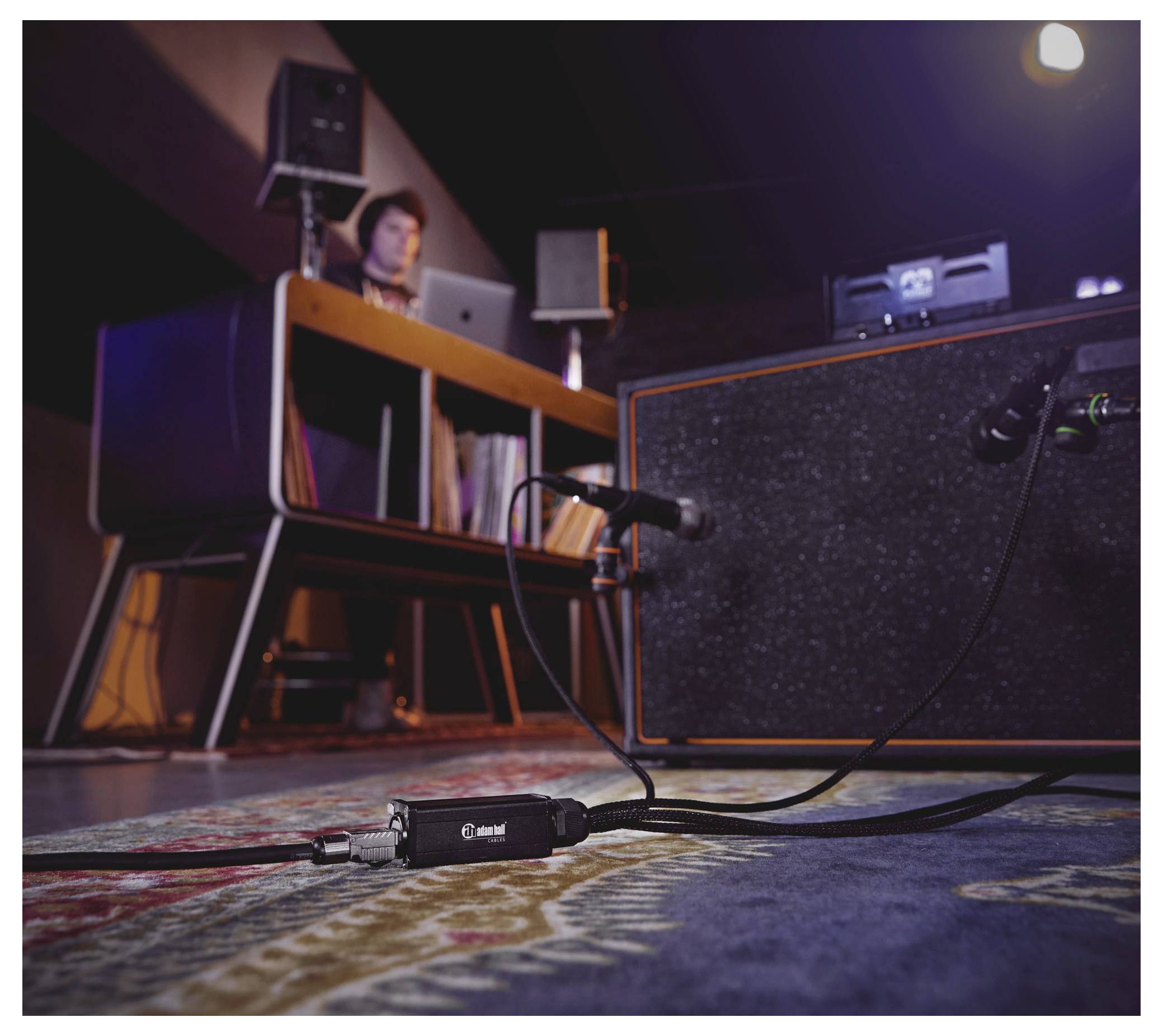

A recording studio with a focus on a guitar pedal and cable on a rug, connecting to equipment. Background shows a person at a desk with audio gear.

1/5

Fast track dispatch on Wed, 16 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 35.29 / piece)

€ 35.29

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Adam Hall audio & DMX via shielded CAT adapter box

Four balanced signals via CAT cables: The adapter box allows the transport of four separate symmetric signals (audio & DMX) via the 4 pairs of wires of a standard network cable.
Male XLR connectors: Equipped with four XLR 3-pin male connectors, Ideal for direct feed into stage boxes or mixing desks.
High ruggedness and protection: The cables have a robust braided sheath for each pair of wires, which provides optimum protection against external influences.
Professional standardization: The wiring is done in accordance with the AES72 schema 5E and is compliant with all other CATBOX products, WAS simplifies system integration.

Technical specifications

Cable use: Audio/phono
DMX
XLR

Cable type: Combo cable

Version: Adapter

No. of A connectors: 1 x

No. of B connections: 4 x

Type A: RJ45

Type B: XLR plug 3-pin

Weight: 288 g

Cable length: 0.3 m

UKCA: yes

Product type: Audio/phono

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3553751 Adam Hall K4CATBOXXM3 Audio/phono, DMX, XLR Adapter [1x RJ45 - 4x XLR plug 3-pin] 0.3 m

Description

The Adam Hall 4 STAR CATBOX XM3 is the smart solution for eliminating cable mess. Transport up to four balanced audio or DMX signals in a flash and space-saving way using a single CAT.6a network cable. The robust adapter box with XLR plugs is wired according to the professional AES72 schema 5E and perfect for the hard stage or the studio everyday life – simply plug in and benefit.

This text is machine translated.

Features

Wired according to the AES72 schema 5E

Hints

The different versions are consistent with each other. This means that the numbering of the plugs is identical for every product of us
