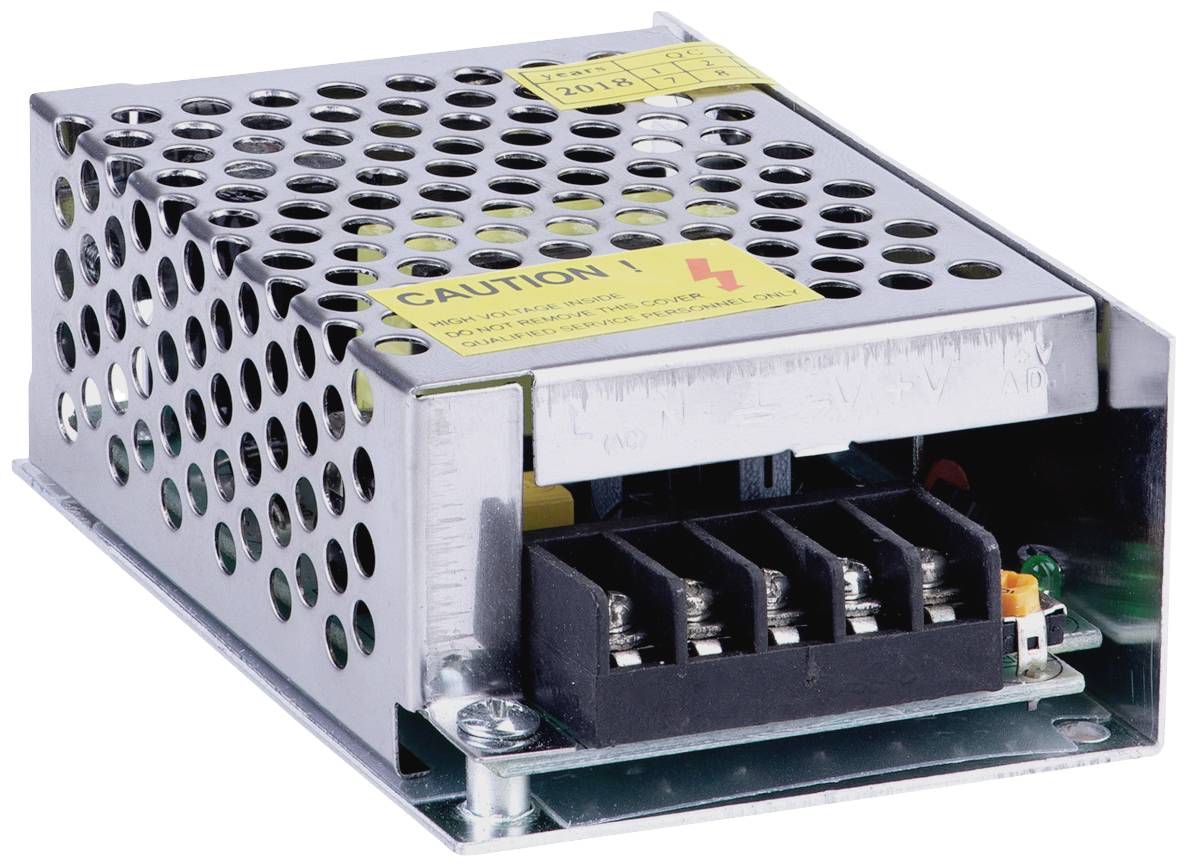

Akyga AK-L1-025 Industrial PSU 14 V DC 2 A 25 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
LED ADAPTER AK-L1-025 12V / 25W
Highlights & Details
- Output 14 V DC / 2 A
- Power 25 W
Technical specifications
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Operating temperature 5 °C - 50 °C
- Product dimensions (L x W x H): 84x59x33 mm
- Supply voltage 100-265 V
- IP rating: IP20
- Supply line: Screw
- Product type
Industrial PSU
- Input voltage (max.)
265 V
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Min. input voltage
100 V
- Dim
(L x W x H) 84 x 59 x 33 mm
- Output voltage (max.)
14 V DC
25 W
IP20
- Type
closed
- Operating temperature (max.)
50 °C
- Operating temperature (min.)
5 °C
- Weight
99 g
- Width
59 mm
- Height
33 mm
- Length
84 mm
- Type
AK-L1-025
- Output voltage (min.)
8.5 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2865410 Akyga AK-L1-025 Industrial PSU 14 V DC 2 A 25 W
User & Safety Instructions
User & Safety Instructions 2865410 Akyga AK-L1-025 Industrial PSU 14 V DC 2 A 25 W
Description
The Akyga® AK-L1-025 is a 25W power supply for industrial automation systems, machine control and lighting based on LED technology used to power LED strips, LED lights, LED panels, RGB LED drivers and other operated electronic devices. With 8.5 - 14V DC controlled by a potentiometer. The current carrying capacity of 2A allows for example, a 5m LED strip to be supplied with parameters of 4.8 W/m.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
This text is machine translated.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
