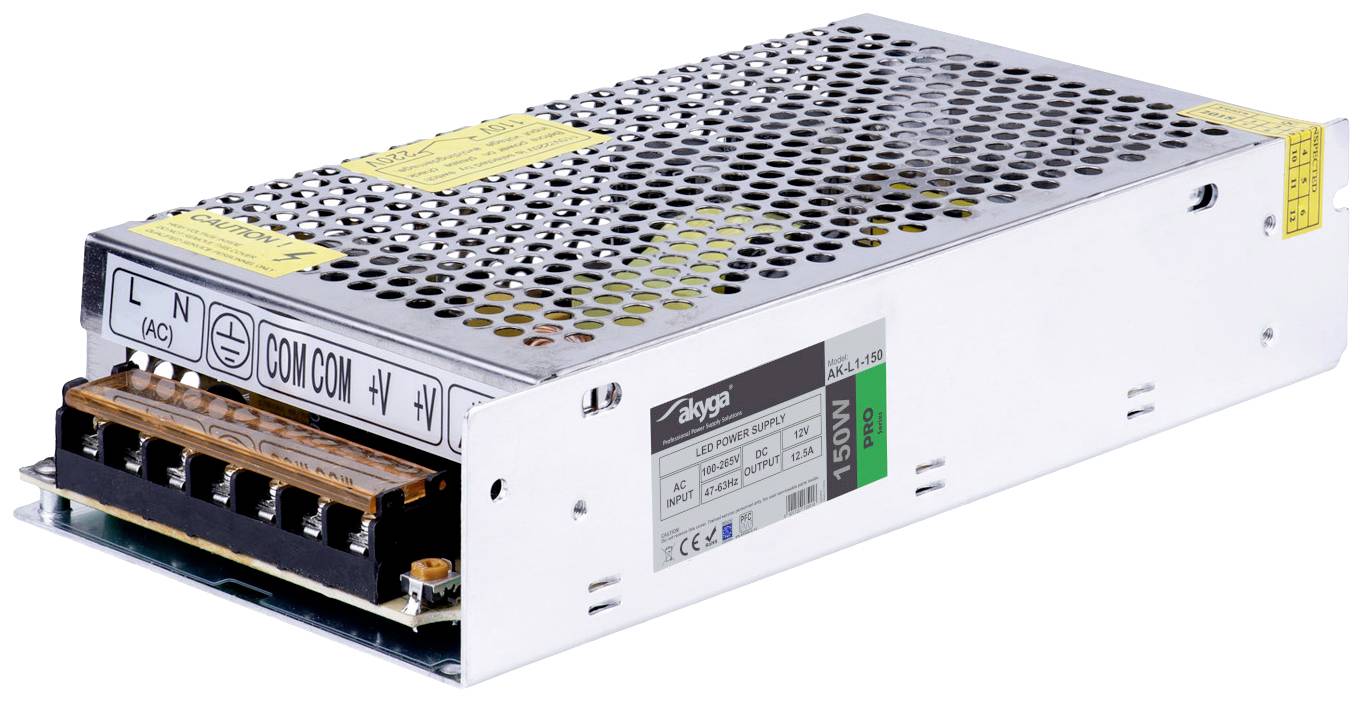

Akyga AK-L1-150 Industrial PSU 15 V DC 12.5 A 150 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Only 6 Piece(s) available

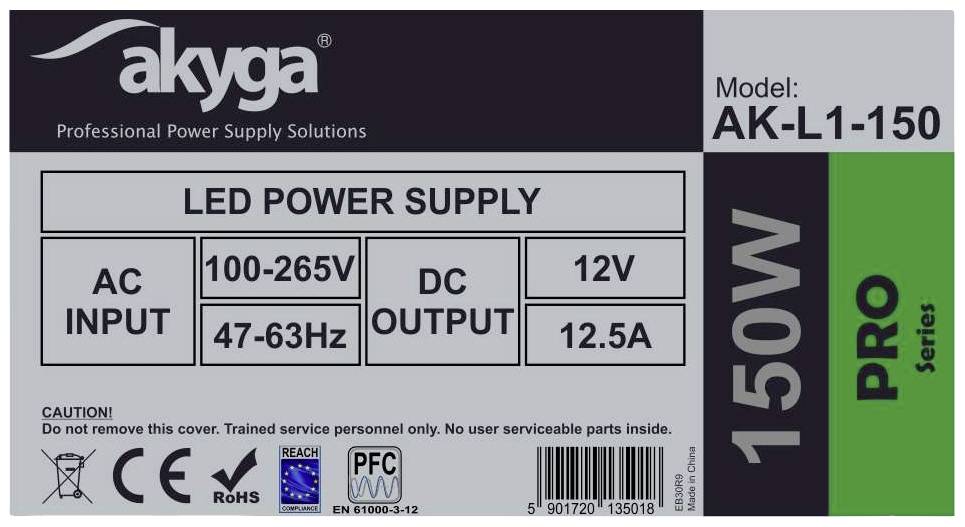

LED POWER SUPPLY AK-L1-150 12V / 150W
Highlights & Details
- Output 15 V DC / 12.5 A
- Power 150 W
Technical specifications
- OVP fuse: Yes
- OCP Backup: Yes
- OPP fuse: Yes
- OTP fuse: Yes
- SCP fuse: Yes
- Operating temperature 5 °C - 50 °C
- Product dimensions (L x W x H): 199x97x42 mm
- Supply voltage 100-265 V
- IP rating: IP20

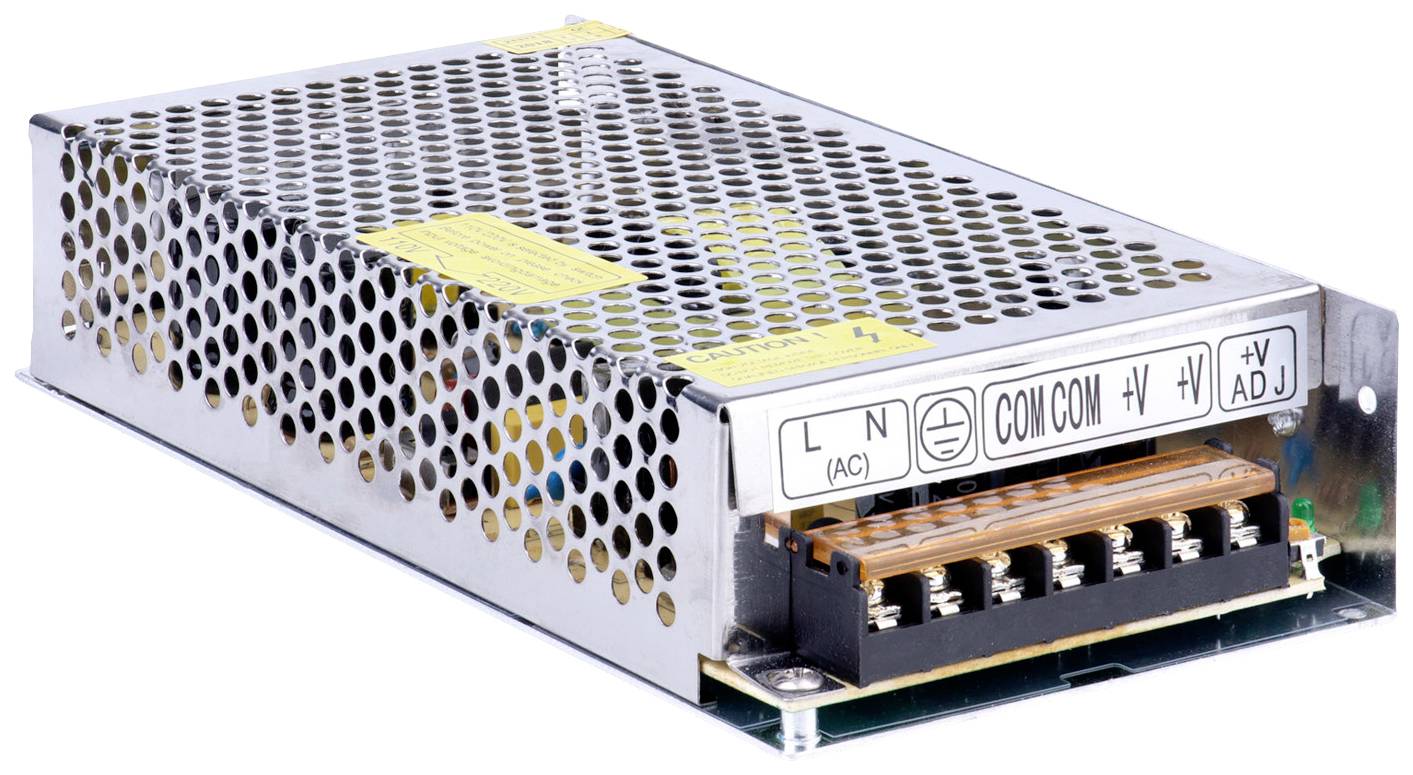

- Supply line: Screw
- Product type
Industrial PSU
- Input voltage (max.)
265 V
- Max. output current
12.5 A
- Output current (max.) - rounded
12.5 A
- Min. input voltage
100 V
- Dim
(L x W x H) 199 x 97 x 42 mm
- Output voltage (max.)
15 V DC
150 W
IP20
- Type
closed
- Operating temperature (max.)
50 °C
- Operating temperature (min.)
5 °C
- Weight
439 g
- Width
97 mm
- Height
42 mm
- Length
199 mm
- Type
AK-L1-150
- Output voltage (min.)
11 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2865414 Akyga AK-L1-150 Industrial PSU 15 V DC 12.5 A 150 W
User & Safety Instructions
User & Safety Instructions 2865414 Akyga AK-L1-150 Industrial PSU 15 V DC 12.5 A 150 W
Description
The Akyga® AK-L1-150 is a 150W power supply unit for industrial automation systems, machine control and lighting based on LED technology , which is controlled by a potentiometer for power supply of LED strips, LED lamps, LED panels, RGB LED drivers and other electronic devices with 11 - 15V DC. Current carrying capacity of 12.5A allows, for example, a 31m LED strip to be powered with parameters of 4.8 W/m. It is possible to supply two different circuits at the same time.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
This text is machine translated.
To properly connect the power supply to the LED strip, multiply the length of the strip in meters by the thickness of the tape, and then select the power supply at a distance of min. 10% to ensure long and trouble free system operation, unless the manufacturer of the LED strip recommends otherwise.
