Akyga AK-SC-E27 Charging cable adapter [1x Type 2 (IEC 62196-2) socket - 4x PG socket] 3 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Cable length 3 m
- Connection 1: Type 2 (IEC 62196-2) socket
- Connection 2: German socket (Schuko) CEE 7/4
- Product color: Black
- Supply voltage 250 V
- Number of phases: 1 phase
- Max. Current 16 A.
- Power: 3.5 kW
- Flame protection UL94V-0
- IP rating: IP54
- Mounted socket: Silver
- Manufacturing material TPE
- Product type
Charging cable adapter
- Type A
Type 2 (IEC 62196-2) socket
- Type B
PG socket
- No. of phases
1-phase
- Cable length
3 m
- Nominal voltage
250 V AC
- Nominal current
16 A
- Nominal current - rounded value
16 A
IP54
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging capacity
3.5 kW
- Factory colour
Black
- Height
260 mm
- Length
70 mm
- Width
330 mm
- No. of A connectors
1 x
- No. of B connections
4 x
- Weight
1.13 kg
Documents & Downloads
Datasheet
Datasheet 3731385 Akyga AK-SC-E27 Charging cable adapter [1x Type 2 (IEC 62196-2) socket - 4x PG socket] 3 m
User & Safety Instructions
User & Safety Instructions 3731385 Akyga AK-SC-E27 Charging cable adapter [1x Type 2 (IEC 62196-2) socket - 4x PG socket] 3 m
Description
The Akyga® AK-SC-E27 Adapter has been developed to fully exploit the potential of the vehicle-to-load (V2L) function in electric vehicles. With it you can convert your car into a mobile power source, which is perfectly suitable for camping, grill parties, outdoor activities or unexpected power outages.

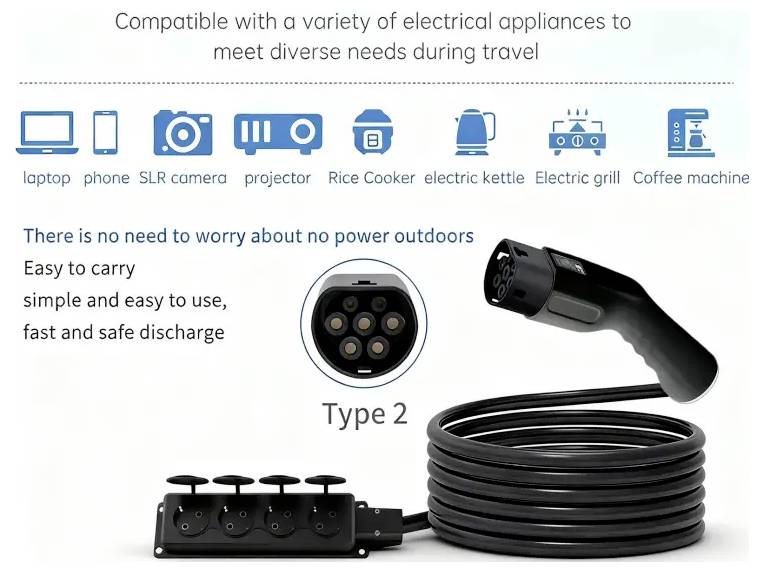

The product is equipped with four standard 230 V Schuko sockets to which you can connect different household appliances or electrical tools at the same time. The maximum output power is 3.5 kW at 16 A, so you can operate devices with a stable power source.
A reliable adapter – wherever you need it
The AK-SC-E27 type 2 on Schuko V2L adapter is made from robust materials, which are resistant to mechanical damages and elevated temperatures and thus also during high load, ensure safety during use. The extension cable with protection class IP54 effectively protects against dust, dirt and water splashes and thus enables safe use both at home in the garage as well as outdoors - even with bad weather.
Despite its robust design the adapter is light and handy and hence Ideal for the daily use. Moreover, the 3 meter long cable offers great freedom in the positioning of devices, and four robust CEE 7/4-sockets with earthing guarantee a stable connection.
Versatile power supply thanks to V2L technology

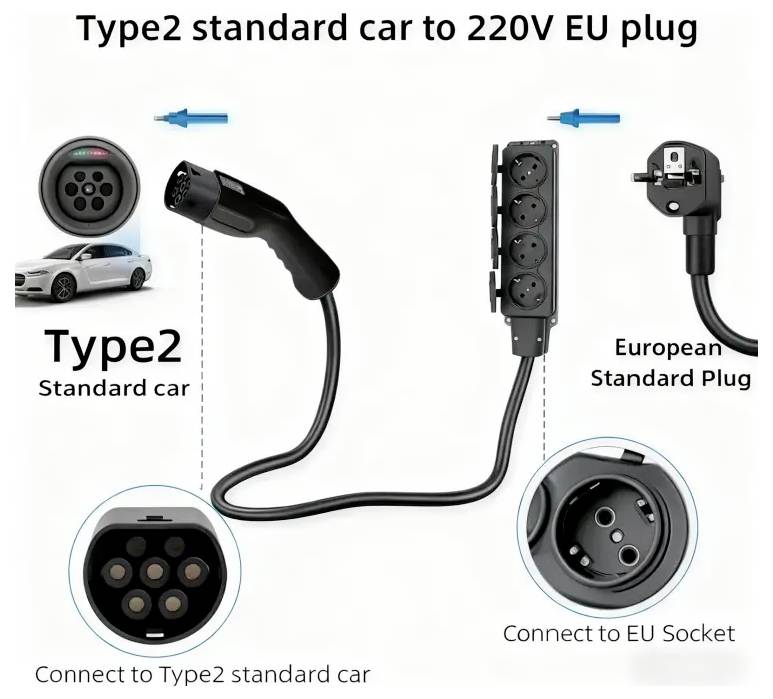

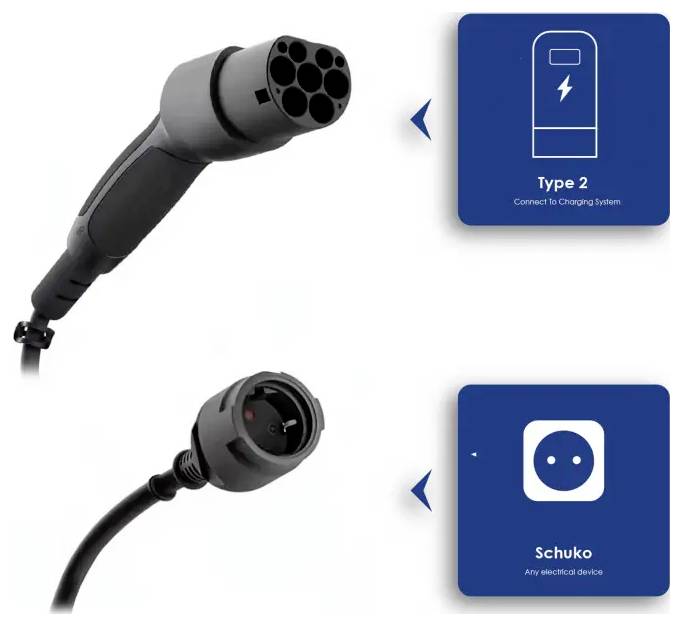

The connection of the V2L adapter is easy and intuitive. There is a type 2 connector at one end, which is connected to the V2L connector in the electric vehicle. At the other end there are four IEC-C7/4 sockets that enable the use of typical European plugs. The adapter is compatible with many electric car models that support the V2L function, including popular brands such as Hyundai, Kia, MG and BYD.
Compatibility and use of the V2L adapter outdoors
The AK-SC-E27 adapter works with most vehicles with a V2L port (e.g. Hyundai, Kia, MG, BYD). It allows you to use your car as an emergency power source, WAS is especially useful in places where there is no access to the mains - while traveling in a mobile home, on a property or for emergency charging of laptops and other portable devices.
Invest in energy independence and convenience while traveling – choose the Akyga® AK-SC-E27 V2L adapter and enjoy the power of your EV battery wherever and whenever you need it!
Note: Before connecting the V2L adapter, ensure that your vehicle battery is at least 30% charged. Otherwise, the power supply or charging of external devices may not be possible.
This text is machine translated.
