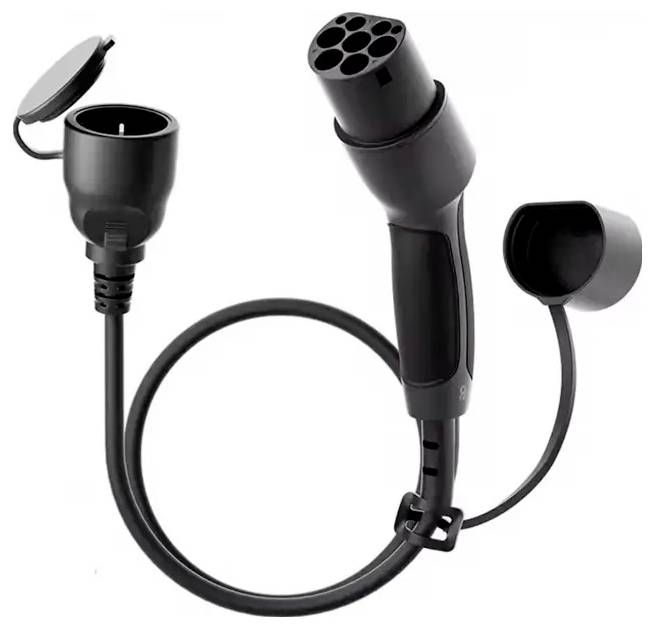

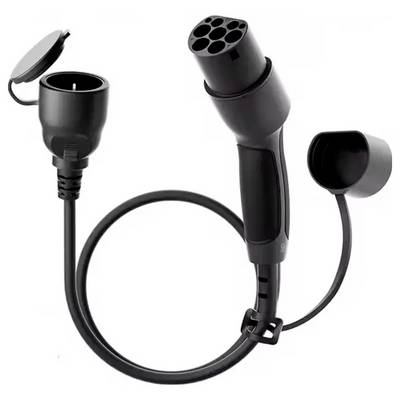

Akyga AK-SC-E28 Charging cable adapter [1x Type 2 (IEC 62196-2) plug - 1x PG socket] 60 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Cable length: 60 cm
- Connection 1: Type 2 (IEC 62196-2) plug
- Connection 2: German socket (Schuko) CEE 7/4
- Product color: Black
- Supply voltage 250 V
- Number of phases: 1 phase
- Max. Current 16 A.
- Power: 3.5 kW
- Flame protection UL94V-0
- IP rating: IP54
- Mounted socket: Silver
- Manufacturing material TPE
- Product type
Charging cable adapter
- Type A
Type 2 (IEC 62196-2) plug
- Type B
PG socket
- No. of phases
1-phase
- Cable length
60 cm
- Nominal voltage
250 V AC
- Nominal current
16 A
- Nominal current - rounded value
16 A
IP54
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging capacity
3.5 kW
- Factory colour
Black
- Height
190 mm
- Length
60 mm
- Width
330 mm
- No. of A connectors
1 x
- No. of B connections
1 x
- Weight
526 g
Documents & Downloads
Datasheet
Datasheet 3731386 Akyga AK-SC-E28 Charging cable adapter [1x Type 2 (IEC 62196-2) plug - 1x PG socket] 60 cm
User & Safety Instructions
User & Safety Instructions 3731386 Akyga AK-SC-E28 Charging cable adapter [1x Type 2 (IEC 62196-2) plug - 1x PG socket] 60 cm
Description
With the Akyga® AK-SC-E28 adapter you can connect devices with classical mains plug (Schuko) to a public charging station for electric cars with type 2 plug. It is a handy solution if you need access to a 230 V power supply but only have one EV charger available - for example while traveling, cycling or while camping.

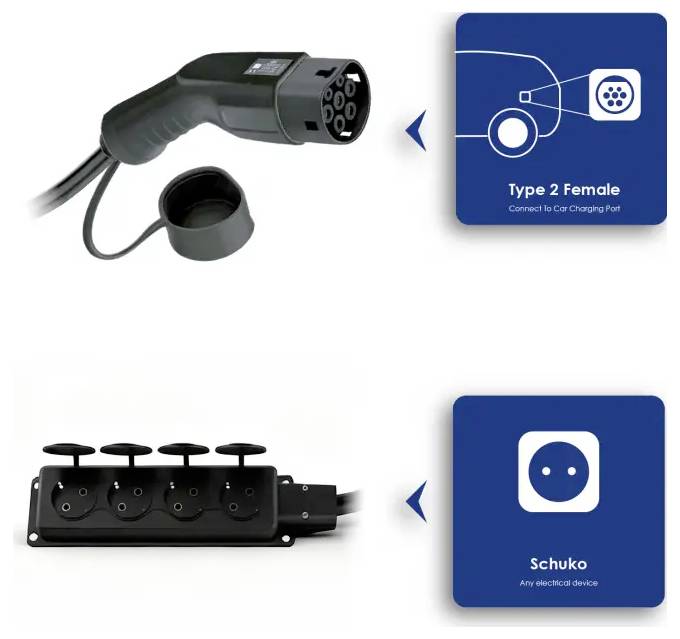

A simple way to convert a type 2 connector into an Schuko socket
The adapter comes with a type 2 plug (IEC 62196) that you can connect to an electric car charger, as well as a Schuko socket to which you can connect a standard mains power supply - e.g. from an electric bicycle, scooter, rectifier or other devices with a nominal power of up to 3.5 kW. This means that each charger can be used with a CEE 7/4 plug, where normally only plugs are available for electric vehicles.
Compact and robust design
The Type 2 / Schuko adapter from Akyga has a 60 cm long cable that offers more freedom while connecting devices. In addition, its construction consists of durable materials that are resistant to mechanical damage and high temperatures. The housing conforms to the IP54 standard, WAS means protection against dust and humidity - thus the adapter is also suitable for use outdoors in demanding weather conditions with increased water or dirt load.
Versatile use of Type 2 adapter on Schuko
The Type 2 on Schuko adapter is especially useful in situations where a standard power source is not available. It is the perfect solution for people, who use electric bicycles and scooters and need additional charging station while traveling. It is an essential accessory for any EV user who attaches importance to flexibility and energy independence.
Step-by-step installation of the adapter
Simply connect the type 2 connector to the selected charging station and ensure a stable and secure connection. Then insert the cable with the Schuko-plug of the device to be charged directly in the adapter socket, in order to ensure an optimum energy transmission.
Before you begin charging, ensure that the station is fully active and ready for operation for maximum efficiency and security. To ensure the long-term functionality of the equipment, first disconnect the cable on the vehicle side with due care and then remove the adapter from the charging station, taking care to ensure proper maintenance of all components.
By choosing an adapter from the renowned Akyga brand, you invest in a proven technical solution with exceptional durability.
This text is machine translated.
A simple way to convert a type 2 connector into an Schuko socket
The adapter comes with a type 2 plug (IEC 62196) that you can connect to an electric car charger, as well as a Schuko socket to which you can connect a standard mains power supply - e.g. from an electric bicycle, scooter, rectifier or other devices with a nominal power of up to 3.5 kW. This means that each charger can be used with a CEE 7/4 plug, where normally only plugs are available for electric vehicles.
Compact and robust design
The Type 2 / Schuko adapter from Akyga has a 60 cm long cable that offers more freedom while connecting devices. In addition, its construction consists of durable materials that are resistant to mechanical damage and high temperatures. The housing conforms to the IP54 standard, WAS means protection against dust and humidity - thus the adapter is also suitable for use outdoors in demanding weather conditions with increased water or dirt load.
Versatile use of Type 2 adapter on Schuko
The Type 2 on Schuko adapter is especially useful in situations where a standard power source is not available. It is the perfect solution for people, who use electric bicycles and scooters and need additional charging station while traveling. It is an essential accessory for any EV user who attaches importance to flexibility and energy independence.
Step-by-step installation of the adapter
Simply connect the type 2 connector to the selected charging station and ensure a stable and secure connection. Then insert the cable with the Schuko-plug of the device to be charged directly in the adapter socket, in order to ensure an optimum energy transmission.
Before you begin charging, ensure that the station is fully active and ready for operation for maximum efficiency and security. To ensure the long-term functionality of the equipment, first disconnect the cable on the vehicle side with due care and then remove the adapter from the charging station, taking care to ensure proper maintenance of all components.
By choosing an adapter from the renowned Akyga brand, you invest in a proven technical solution with exceptional durability.
This text is machine translated.
