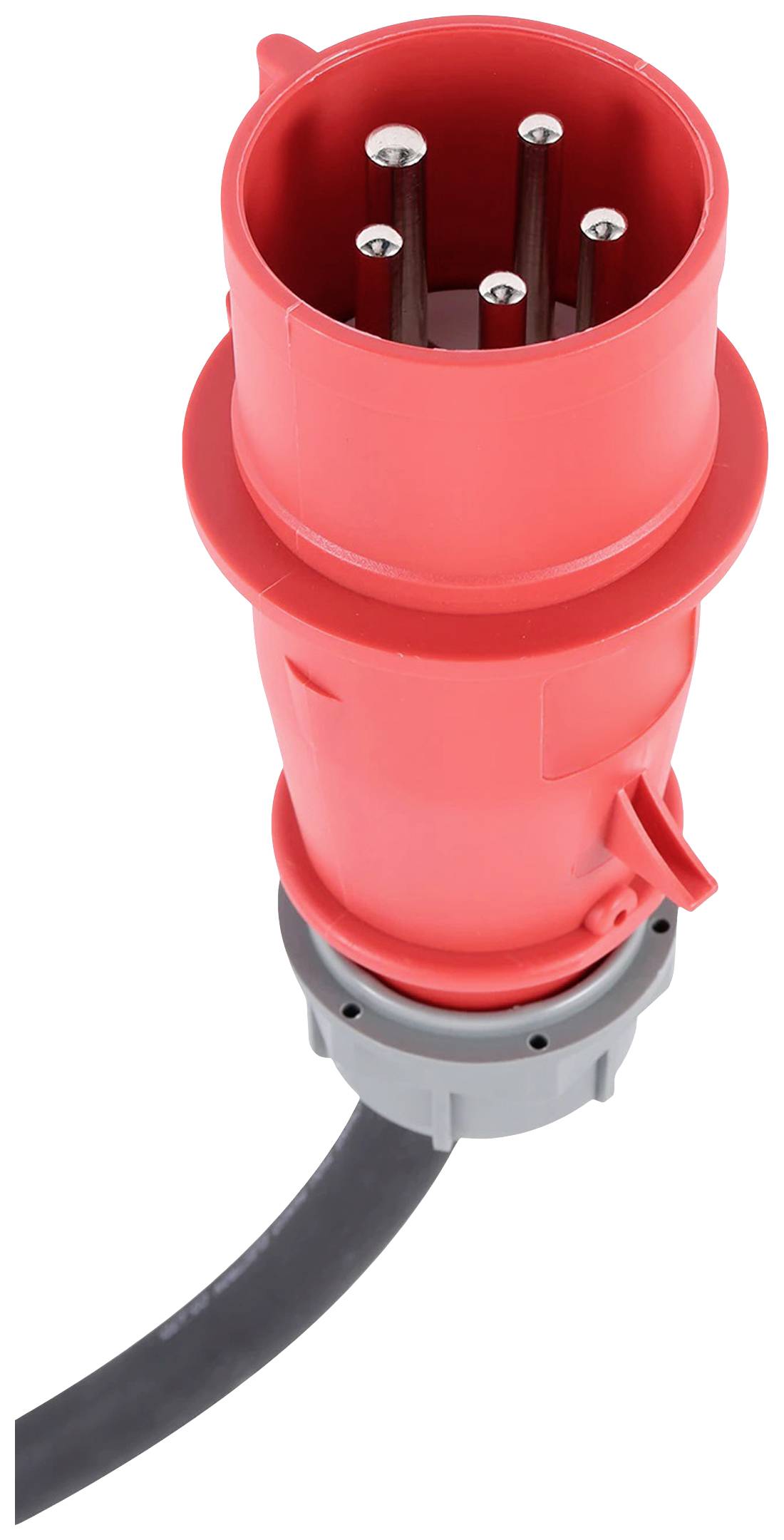

Red, industrial high-current plug with multiple pins on a black cable, suitable for high-performance applications.

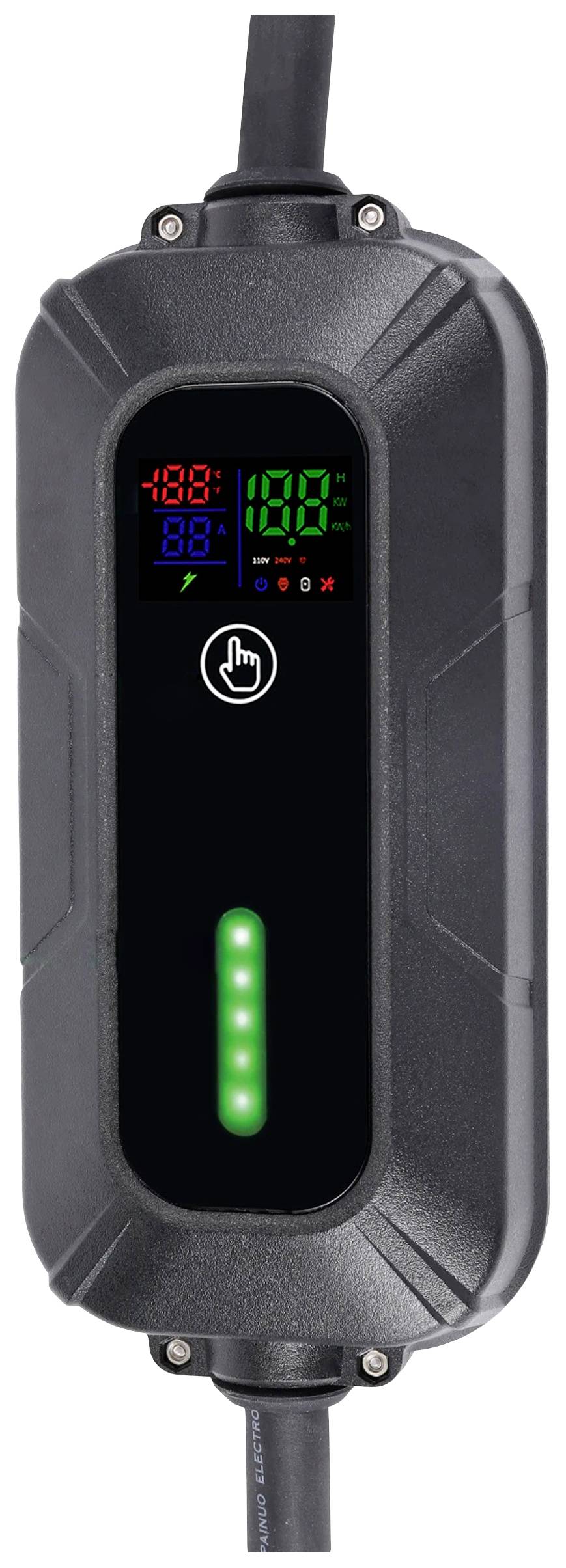

A black charger with a digital display shows numbers in red and green. Horizontal green LEDs are located at the bottom.

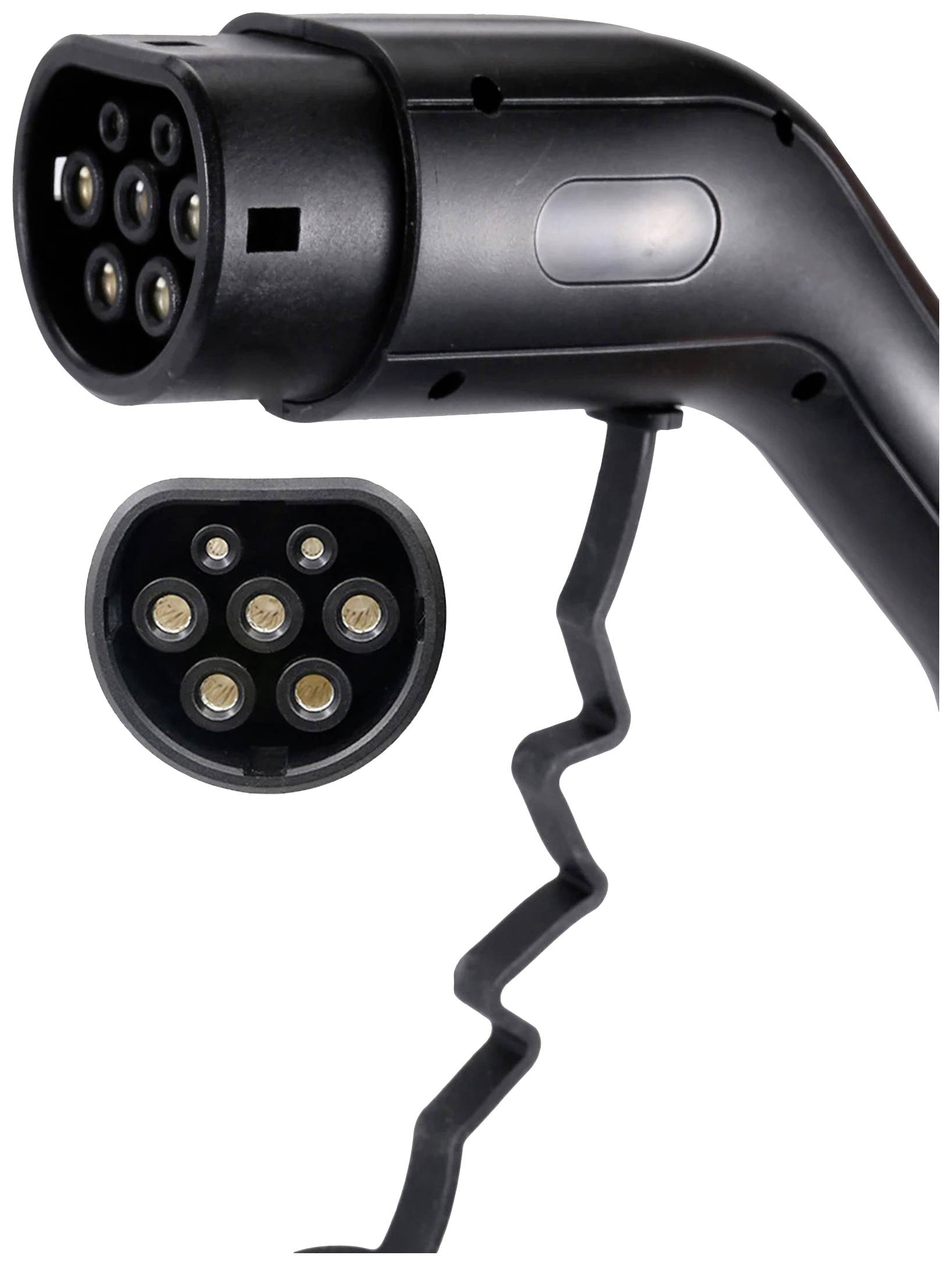

A black electric charging plug with six round contacts, connected to a coiled cable, shows the connections in detail.

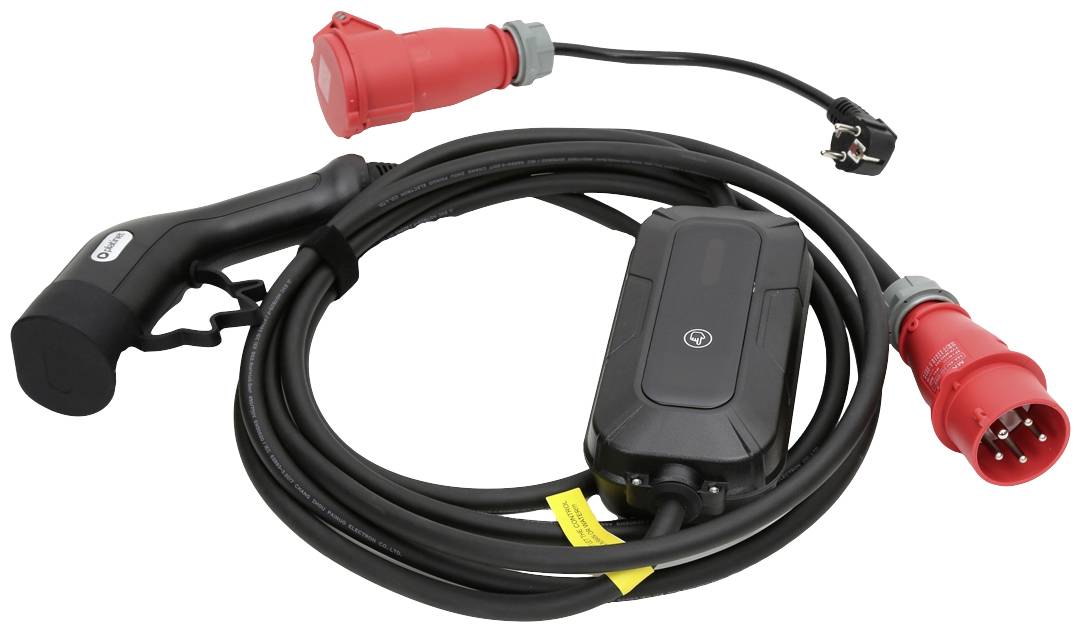

A charging device for electric vehicles with a red plug and black cable. The device is suitable for charging the vehicle.

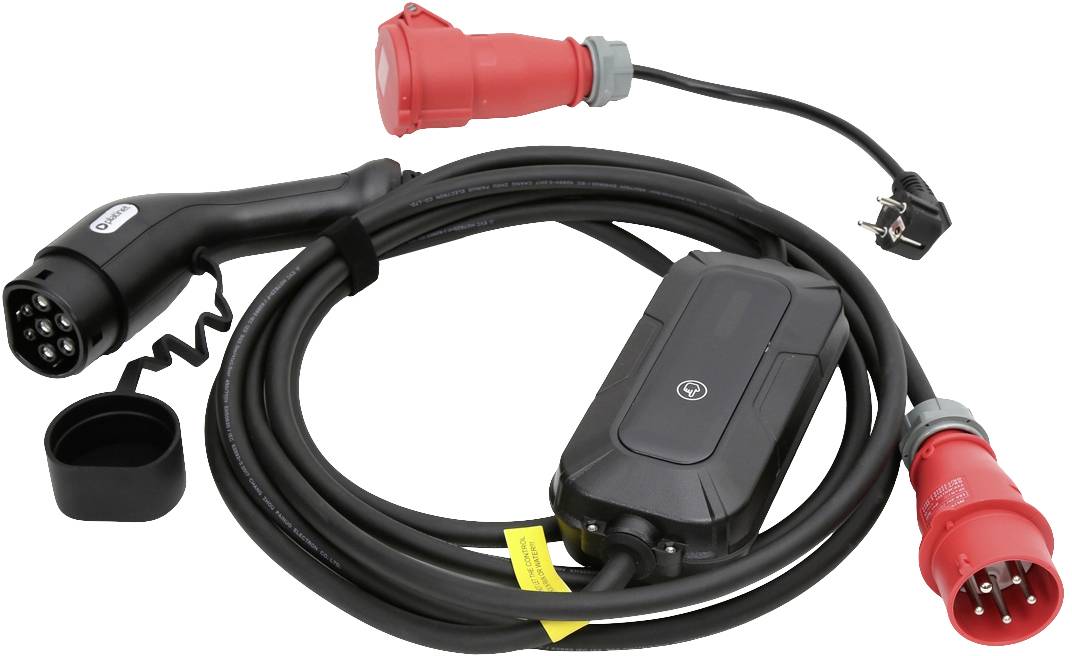

Charging cable for electric vehicles with Type 2 plug, control box and red power supply connector.

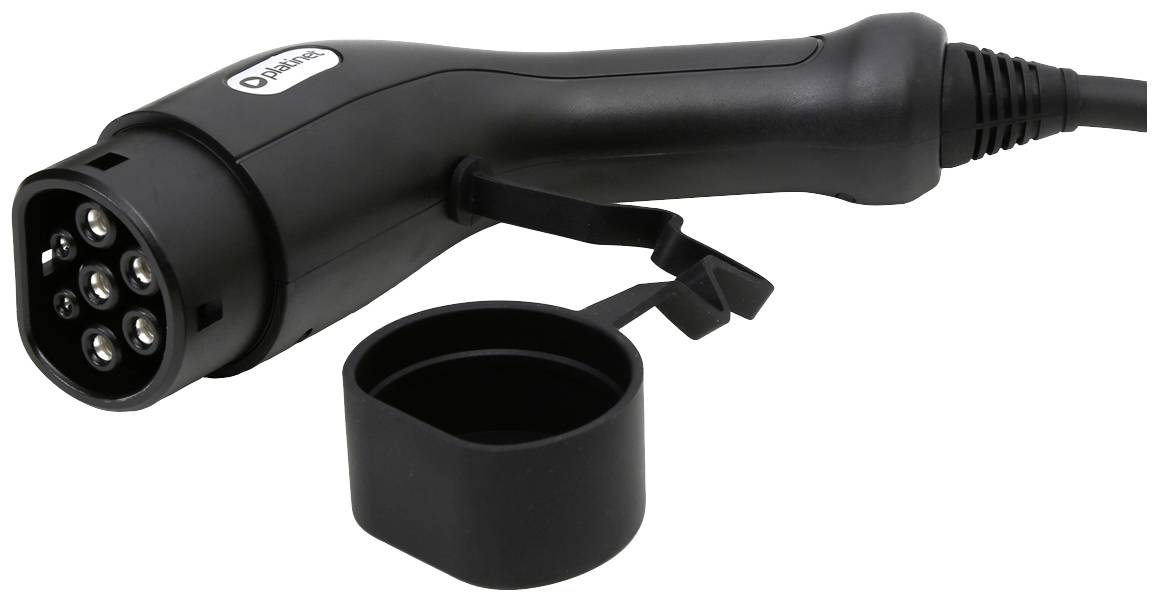

Black Type-2 charging connector for electric vehicles with removable protective cover, showing the seven contacts on the front.

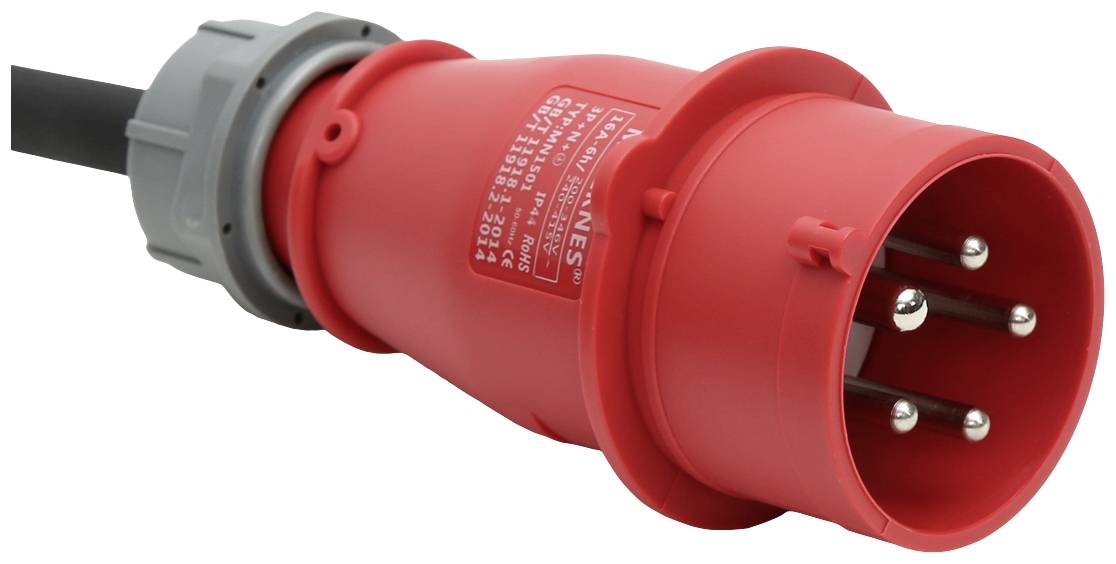

Red three-pin industrial plug with grey cable connection, used for heavy electrical equipment in industrial environments.

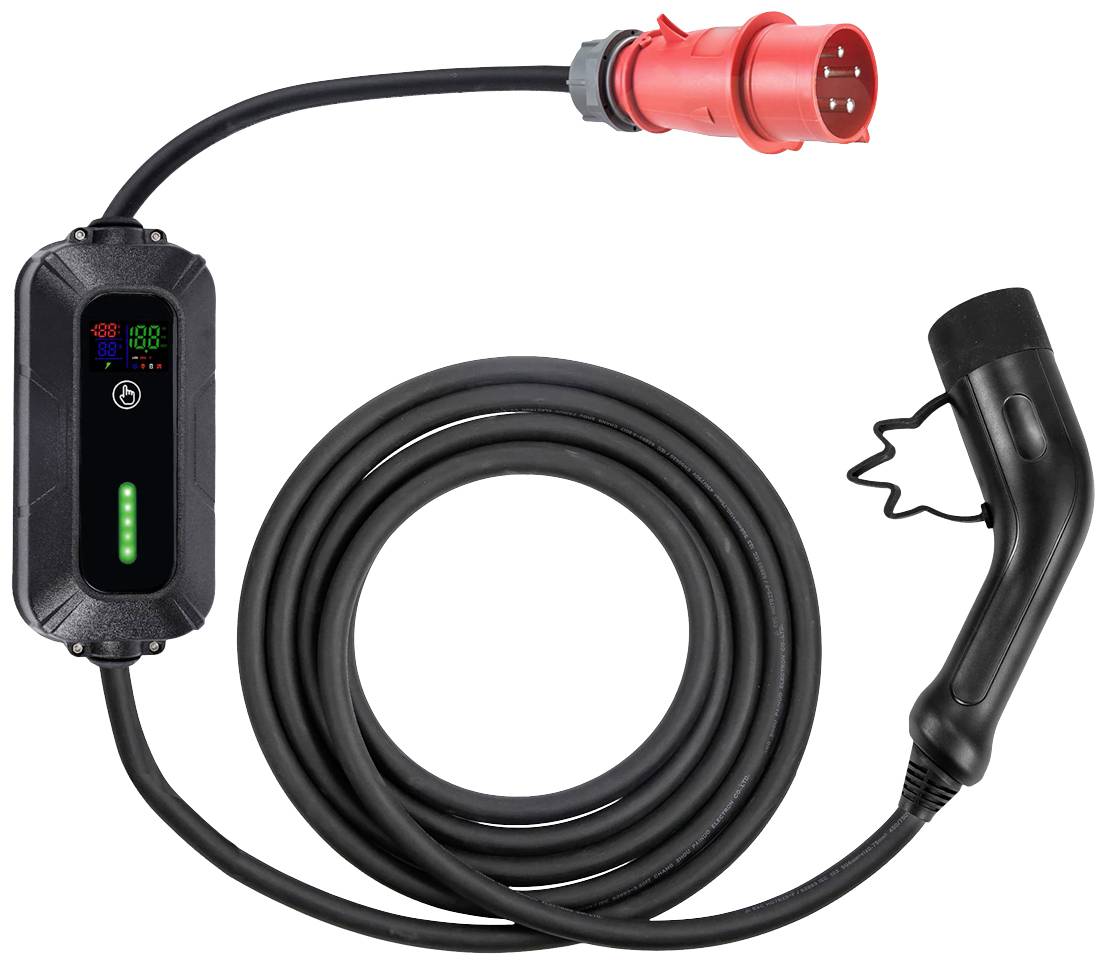

Electric vehicle charging cable with plug, display, and cable. Shows current strength and charges electric cars when connected to a compatible socket.

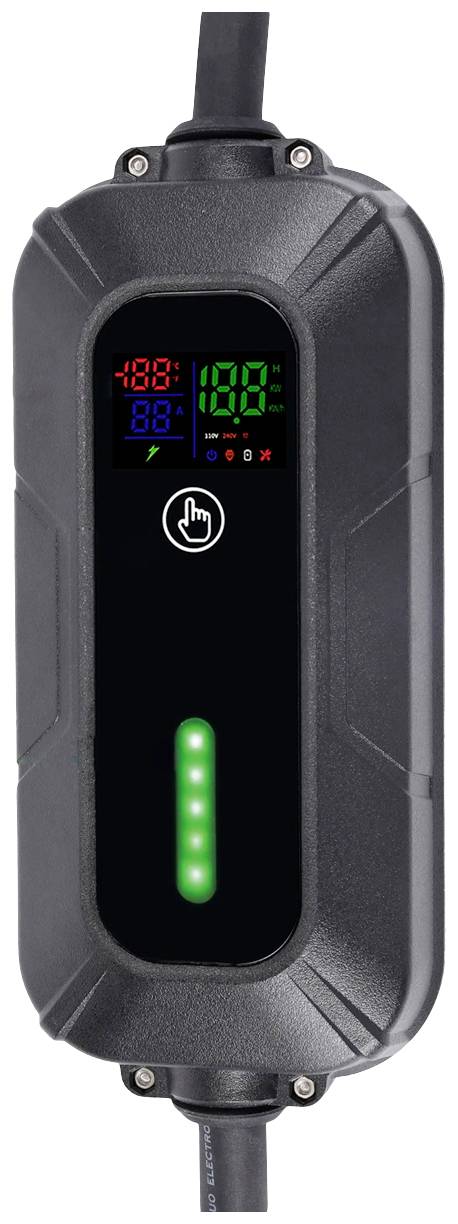

Charger with digital display, showing charging information. Black casing with a touch button, LED lights at the bottom.

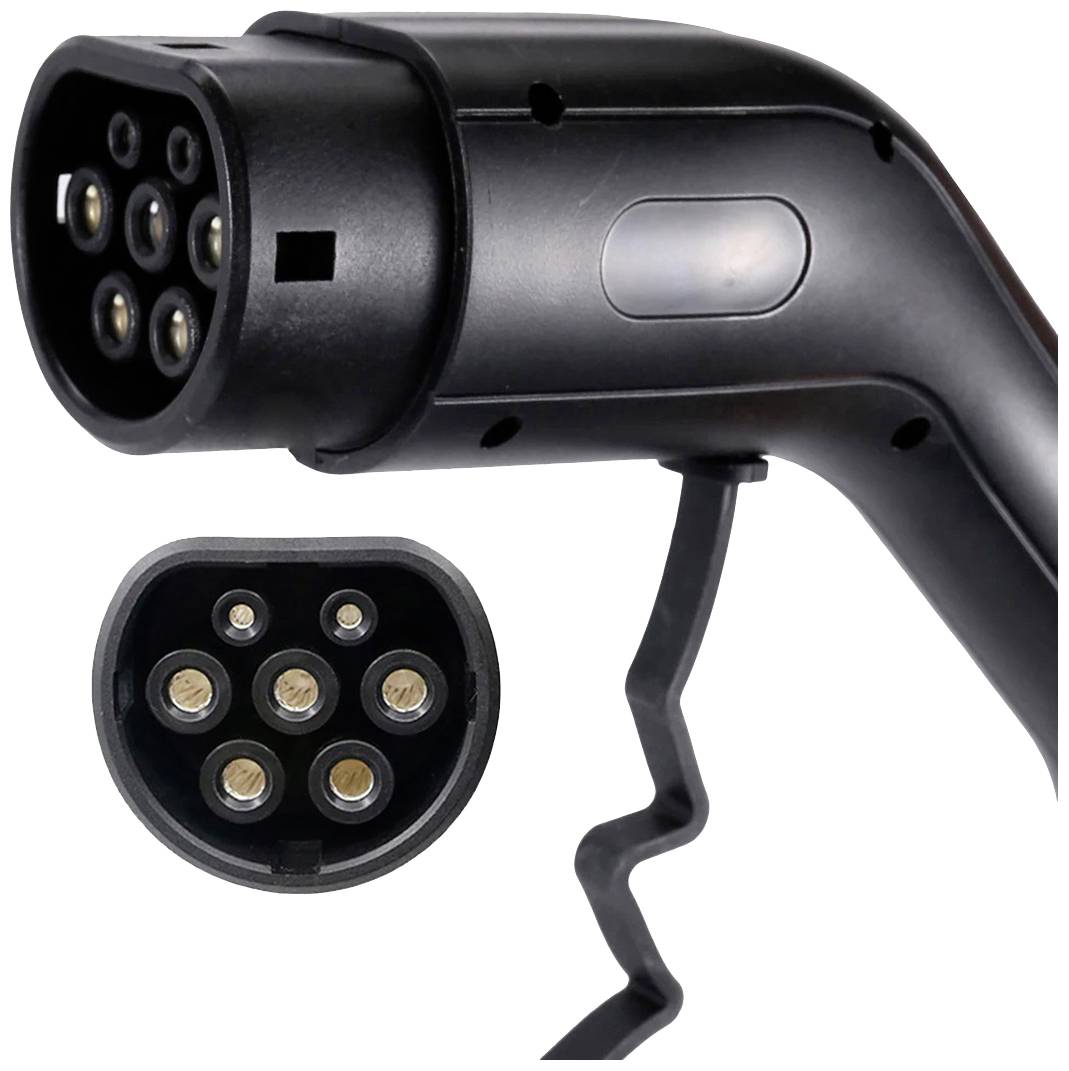

Close-up of a black electric vehicle charging plug with multiple metal pins, suitable for charging electric vehicles.

A red power adapter cable with a round plug on one side and a three-pin standard plug on the other.

1/13

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

13 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 293.28 / piece)

€ 293.28

plus VAT.

Report legal concerns

Highlights & Details

Platinet PPC32AT - Portable 2in1 E-Auto Fast Charging Cable 11kW / 16A

European standard plug (CEE red)
3 phases
Cable length: 5 Meter.

Technical specifications

Nominal input voltage 85 - 380 V AC
Nominal output voltage 85 - 380 V AC
Nominal current: Standard - 16 A (adjustable)
Nominal power 11 kW quick charging
Insulation resistance of the cable: >1000 M? (DC500 V)
Contact resistance 0,5mmΩ MAX
Housing fire protection class UL94V-0
Wire harness size: 3*2.5 mm² + 2*0.5 mm²

Product type: eMobility charging cable

Type A: PG socket

Type B: Type 2

No. of phases: 3-phase

Cable length: 5 m

Cable features: incl. PG

Nominal voltage: 380 V

Nominal current: 16 A

Nominal current - rounded value: 16 A

Charging capacity: 11 kW

Charging current: 16 A

Documents & Downloads

Datasheet

Datasheet 2898029 Platinet PPC32AT eMobility charging cable 5 m incl. PG

User & Safety Instructions

User & Safety Instructions 2898029 Platinet PPC32AT eMobility charging cable 5 m incl. PG

Description

Protection contact on type 2 adapter is a great solution for charging your car, motorcycle or electric scooter. The cable has an earthed socket on one side and a type 2 plug on the other side. This allows any electric car with a safety plug to be charged using a charger with a type 2 socket. This is especially useful if you use a safety contact cable in an electric car and want to charge it using a private or public type 2 charging station.

PLUG & PLAY - SIMPLE OPERATION
The Plug & Play functionality is one of the many advantages of this charger. The vehicle starts charging automatically after the charger is connected to the car. To end the charging process, simply pull the charger plug out of the vehicle.
