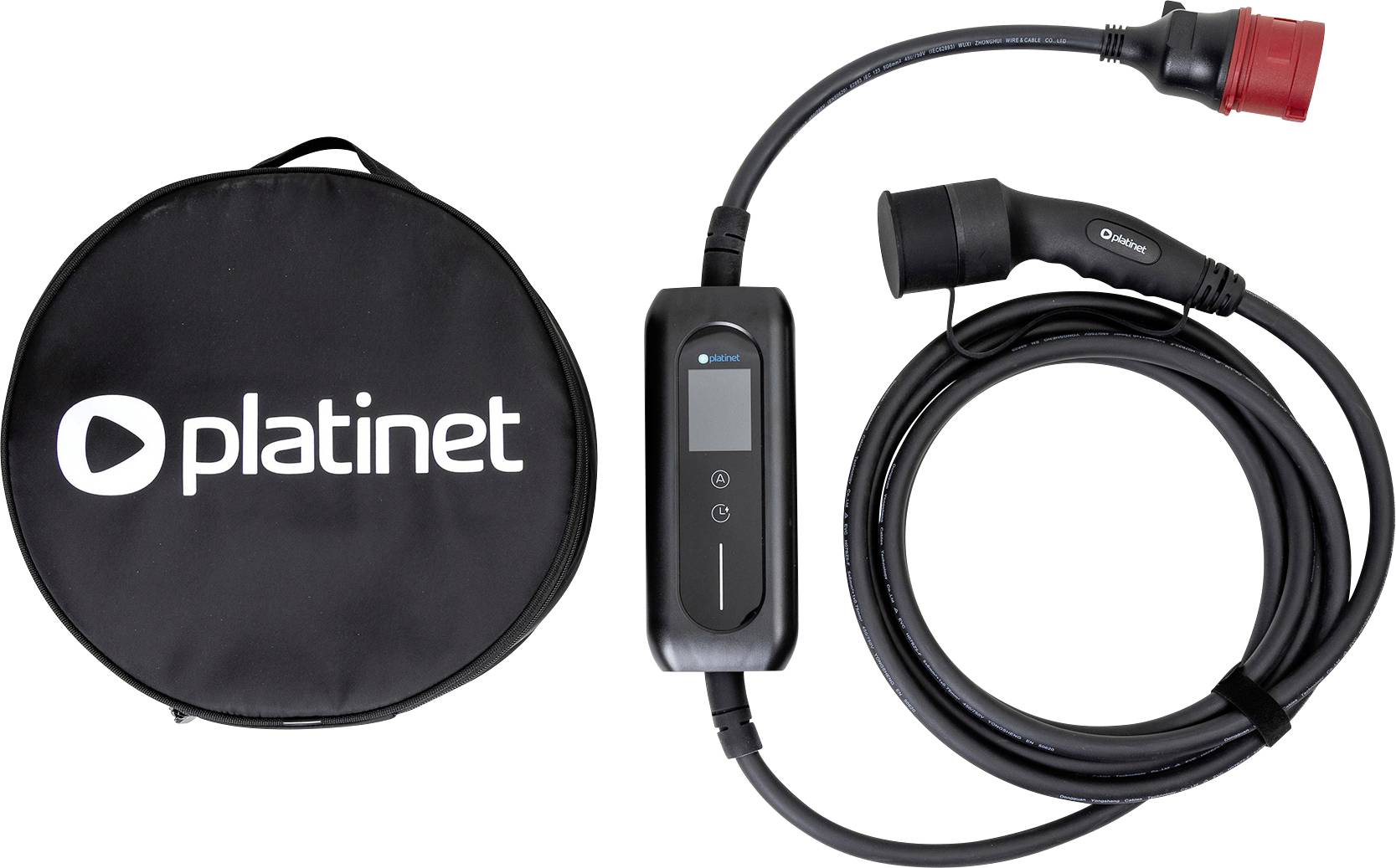

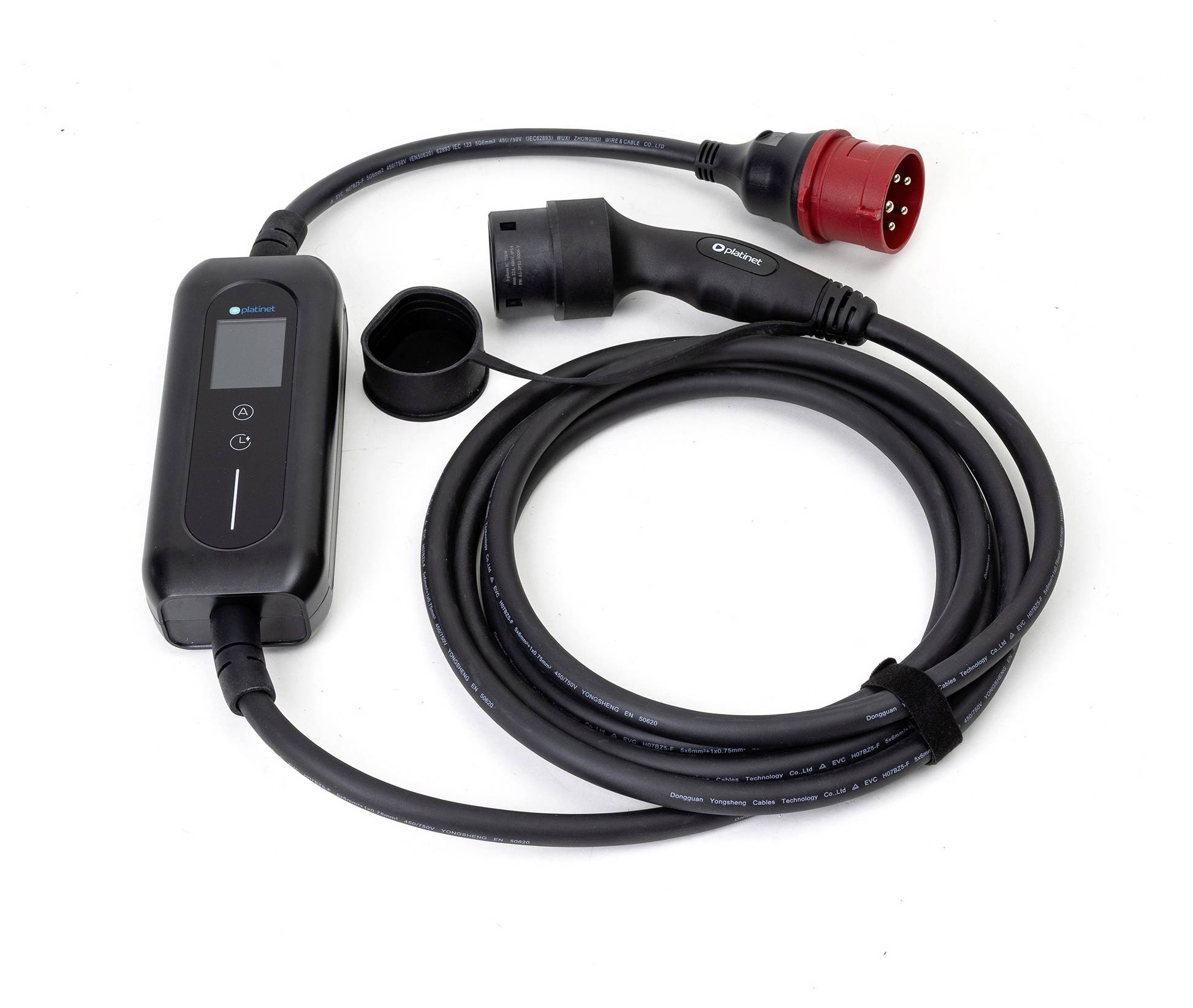

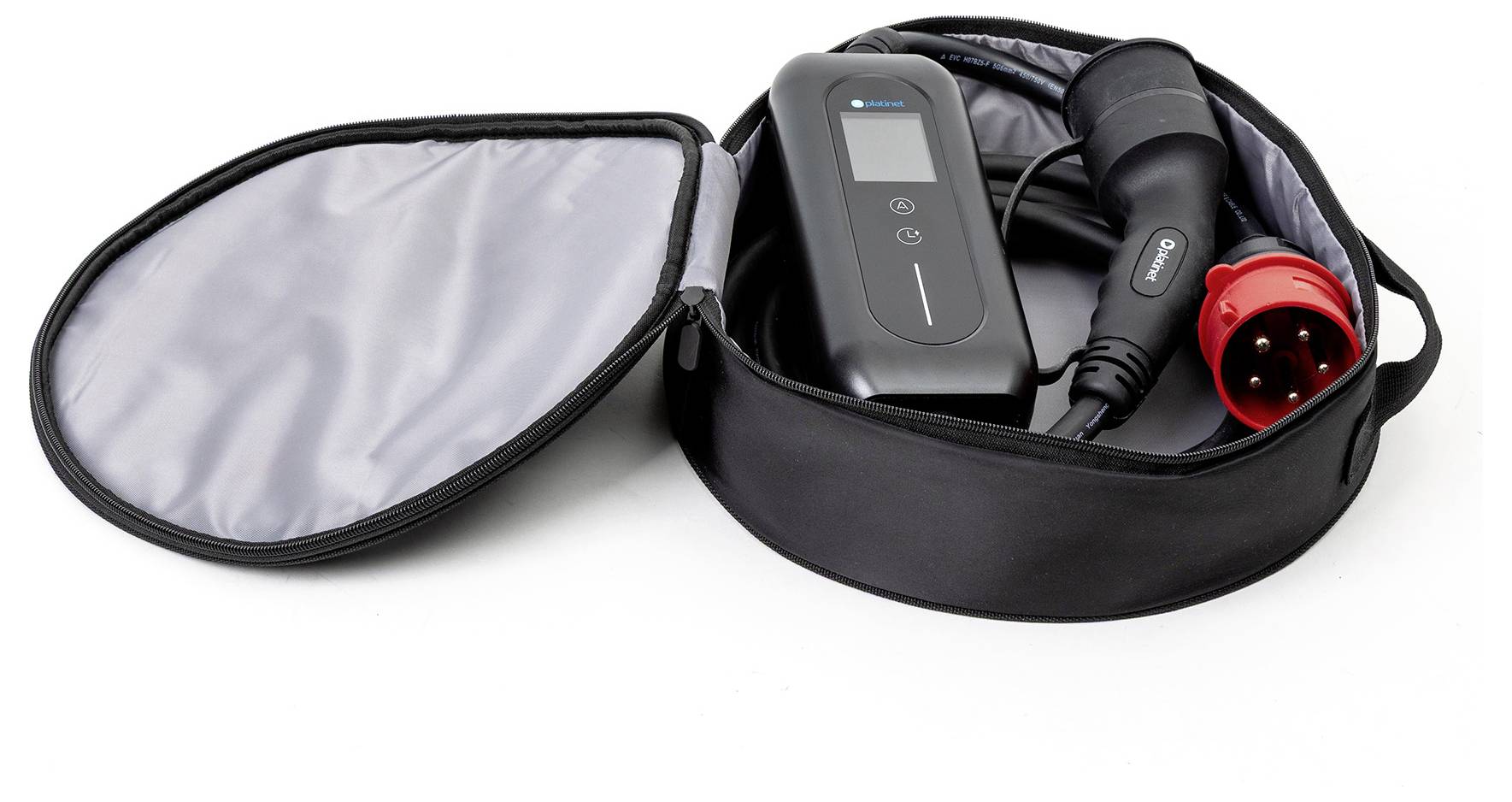

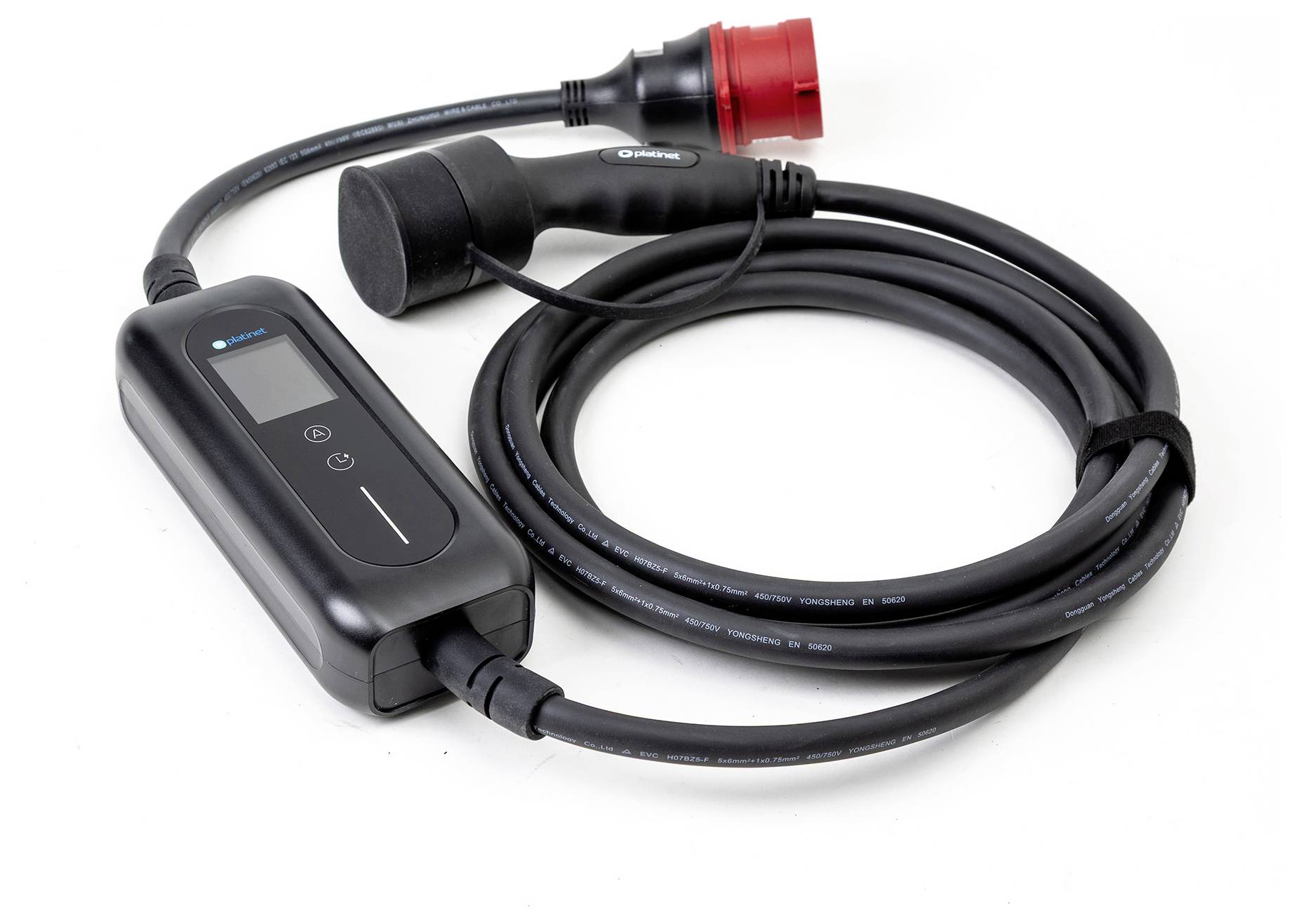

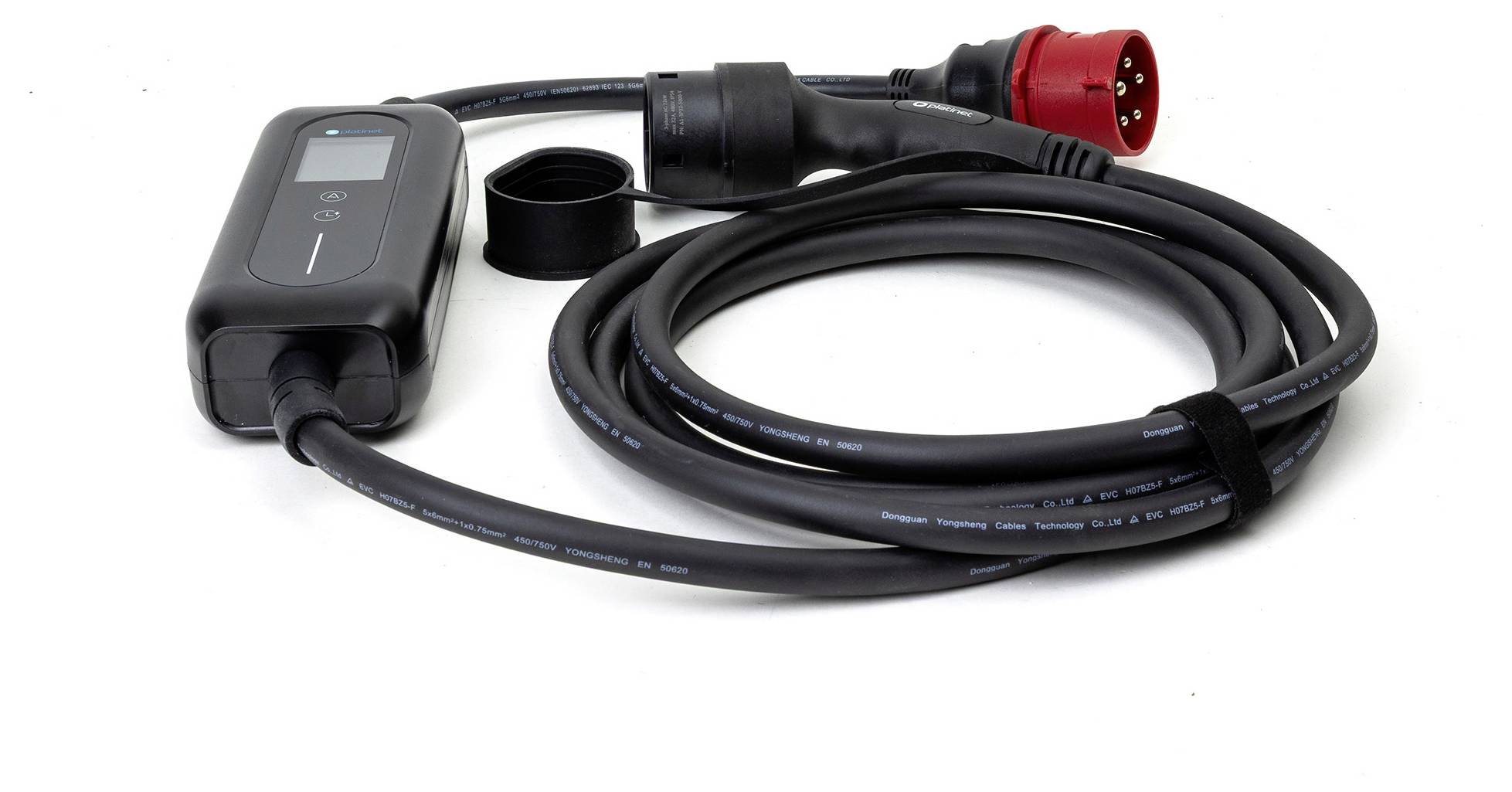

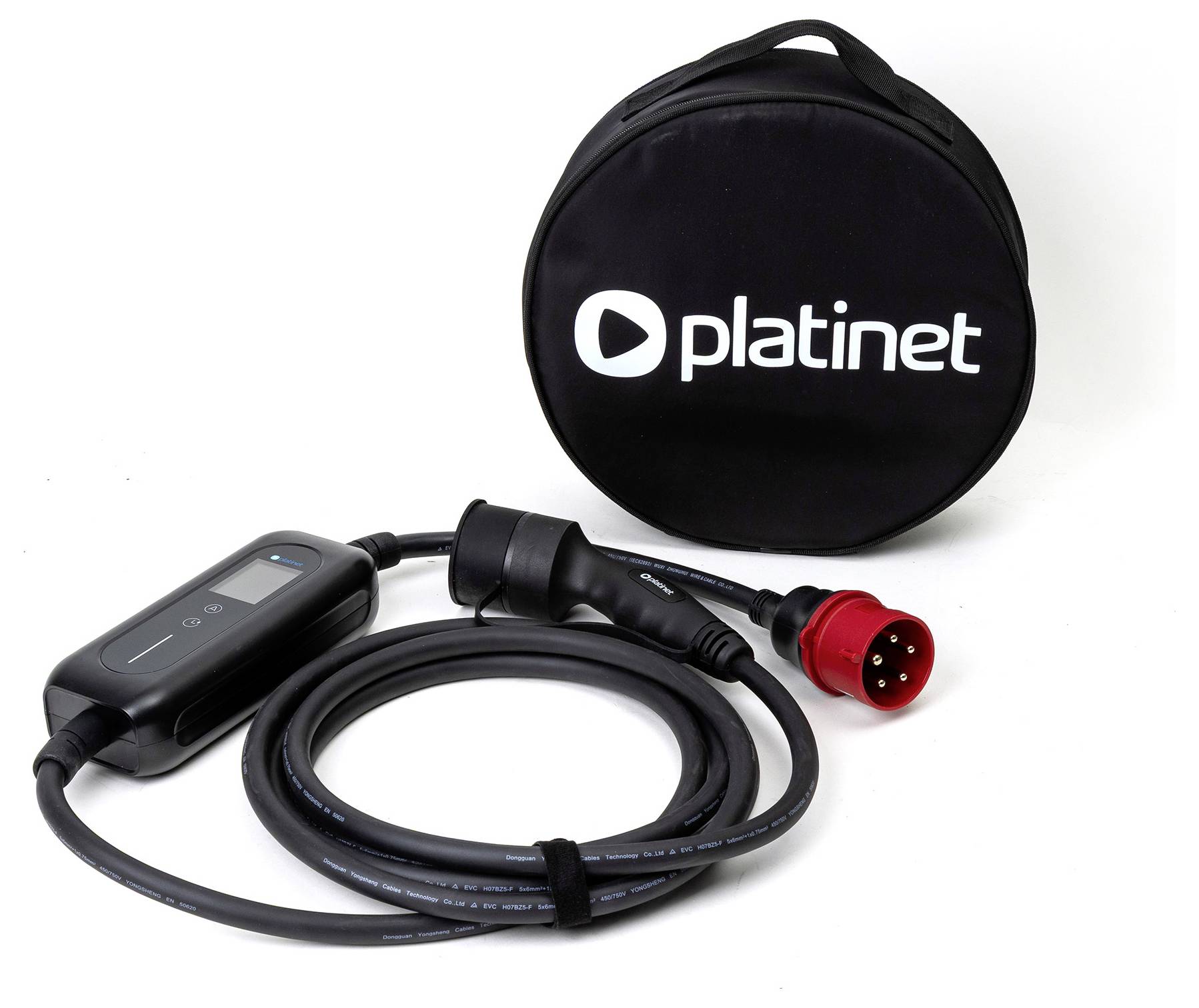

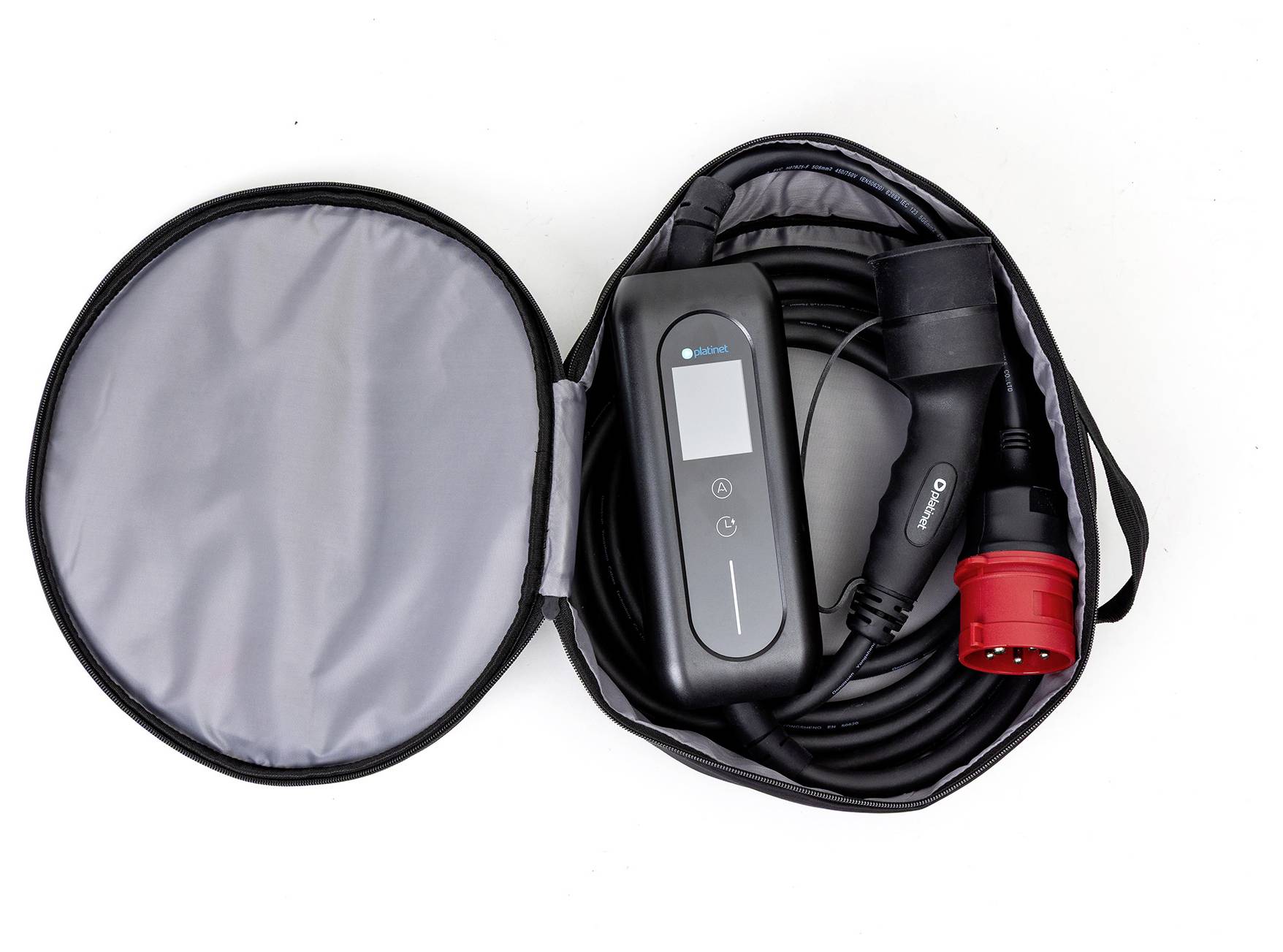

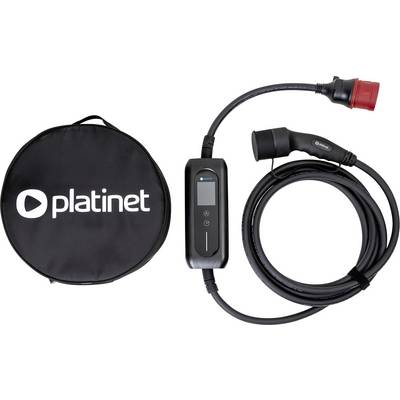

Platinet 46232 eMobility charging cable 5 m
EAN:
Part number:
Item no:
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Platinet EV_PPCW5M11 - 11 kW E-car charging cable with WiFi and Tuya
- Robust design: Has an IP66-certified control box and is thus well protected against dust and water.
- Reliable relay: Has a high-quality relay, which is designed for long-life and constant power
- Remote monitoring: Check the charging status via Wi-Fi.
- Controlling from anywhere: Start or stop the charging process via the mobile APP.
- Bluetooth: Local control without WLAN.
Technical specifications
- Standard Euro-plug (red CEE) 3-phase
- Residual current protection: Type B, AC 30mA + DC 6mA
- Conductor cross-sections: 5x2.5 mm2 + 1×0.75 mm2 (external diameter: O13.2 mm)
- Communication: Wi-Fi and Bluetooth
- Tuya Smart (iOS and Android)
- Product type
eMobility charging cable
- Type A
CEE 16 A
- Type B

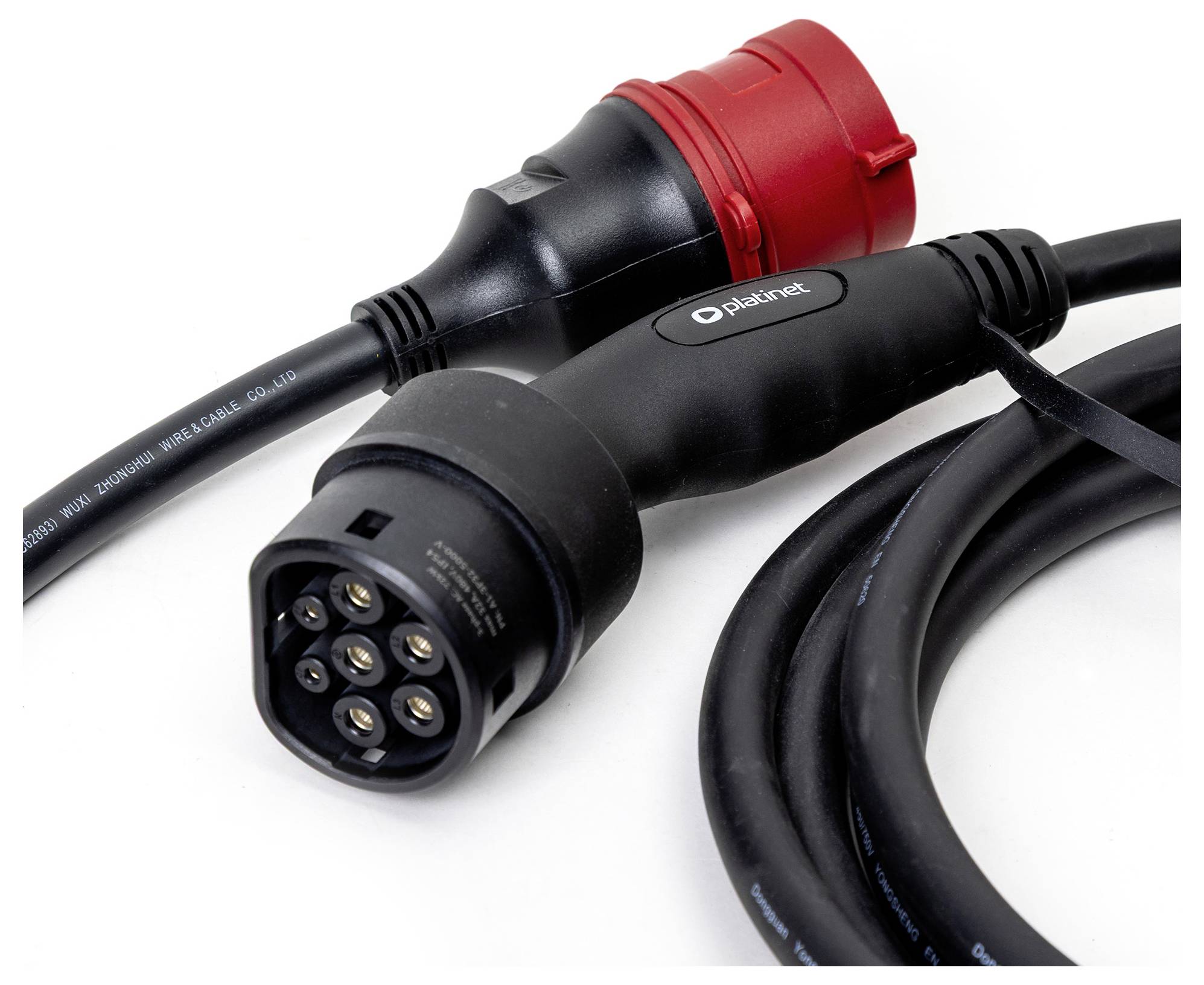

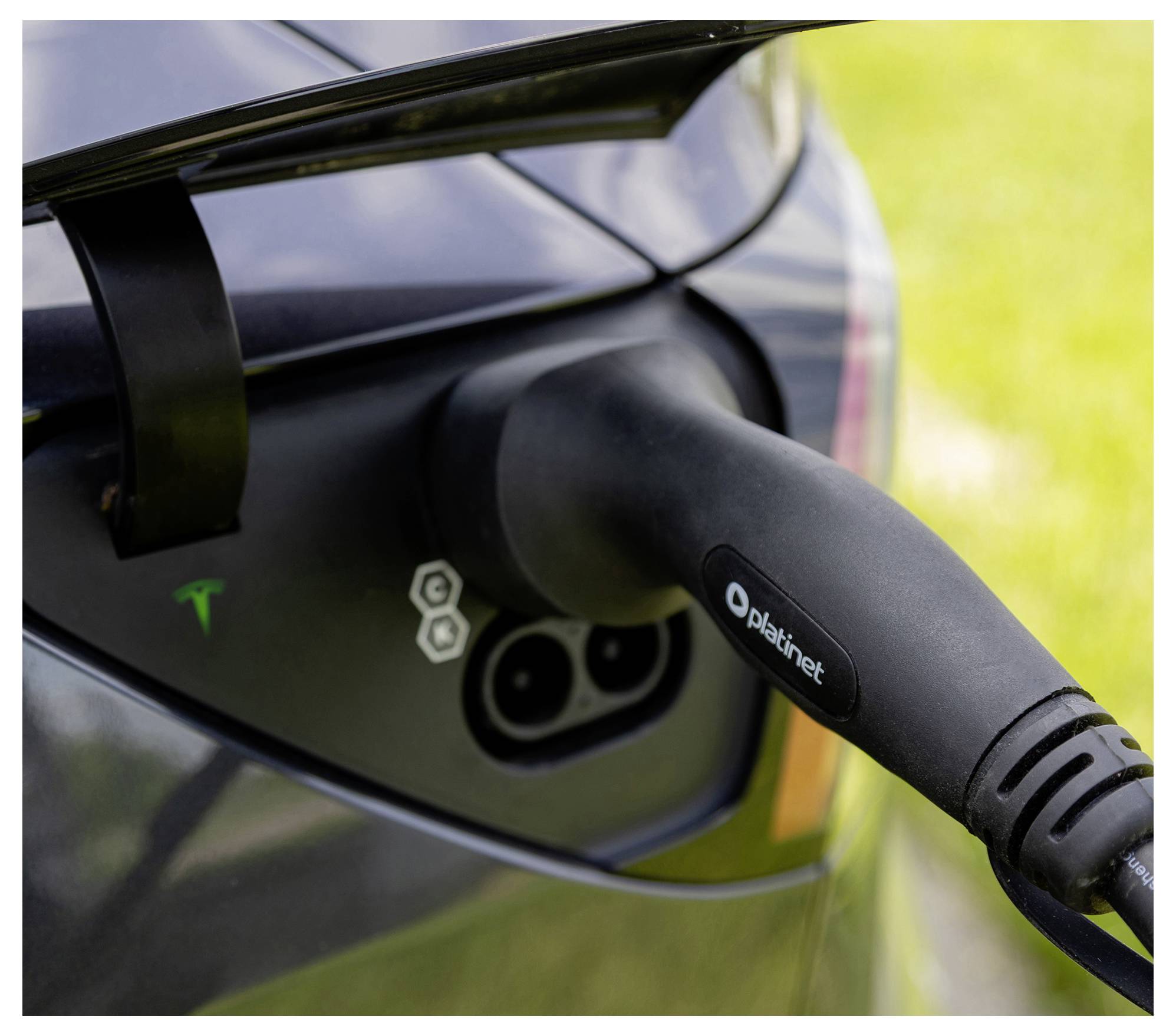

Type 2 (IEC 62196-2) plug
- No. of phases
3-phase
- Charging mode
Mode 2
- Cable length
5 m
- Nominal voltage
230 V
- Nominal current
16 A
- Nominal current - rounded value
16 A
IP66
IP44
IP54
- Min. temperature
-25 °C
- Max. temperature
+45 °C
- Charging capacity
11 kW
- Charging current
16 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3532955 Platinet 46232 eMobility charging cable 5 m
Information
Information 3532955 Platinet 46232 eMobility charging cable 5 m
Information 3532955 Platinet 46232 eMobility charging cable 5 m
Description

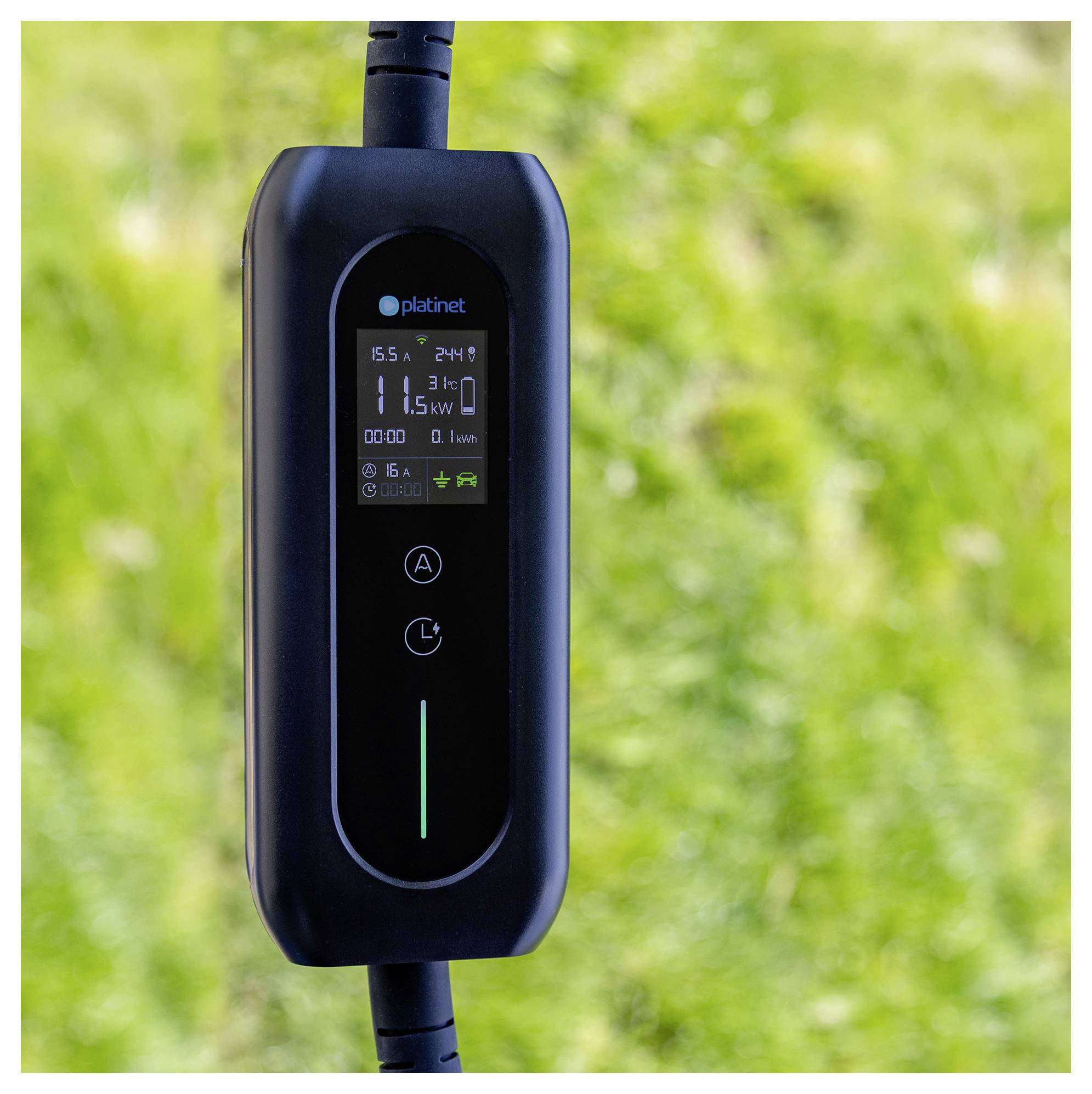

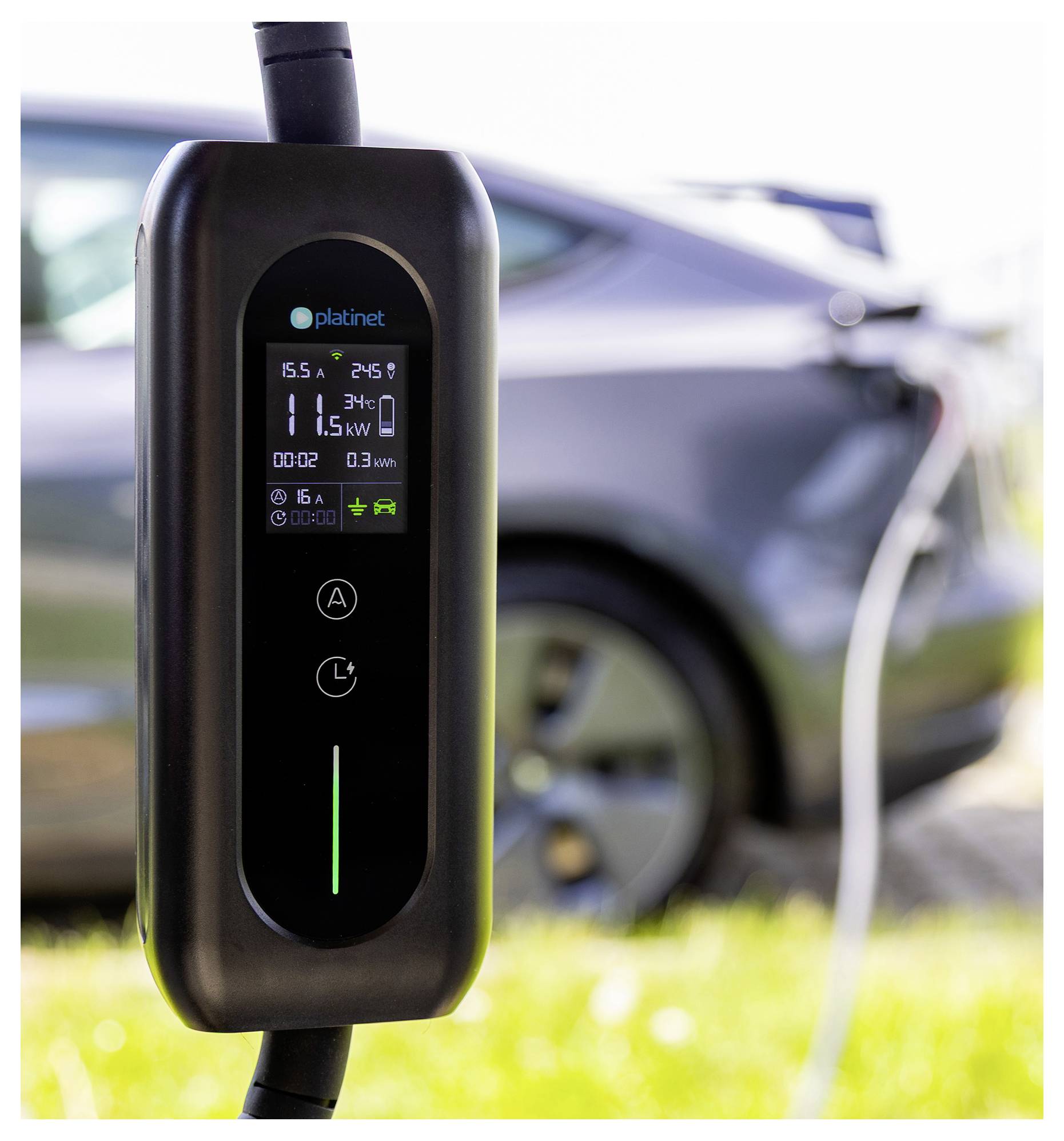

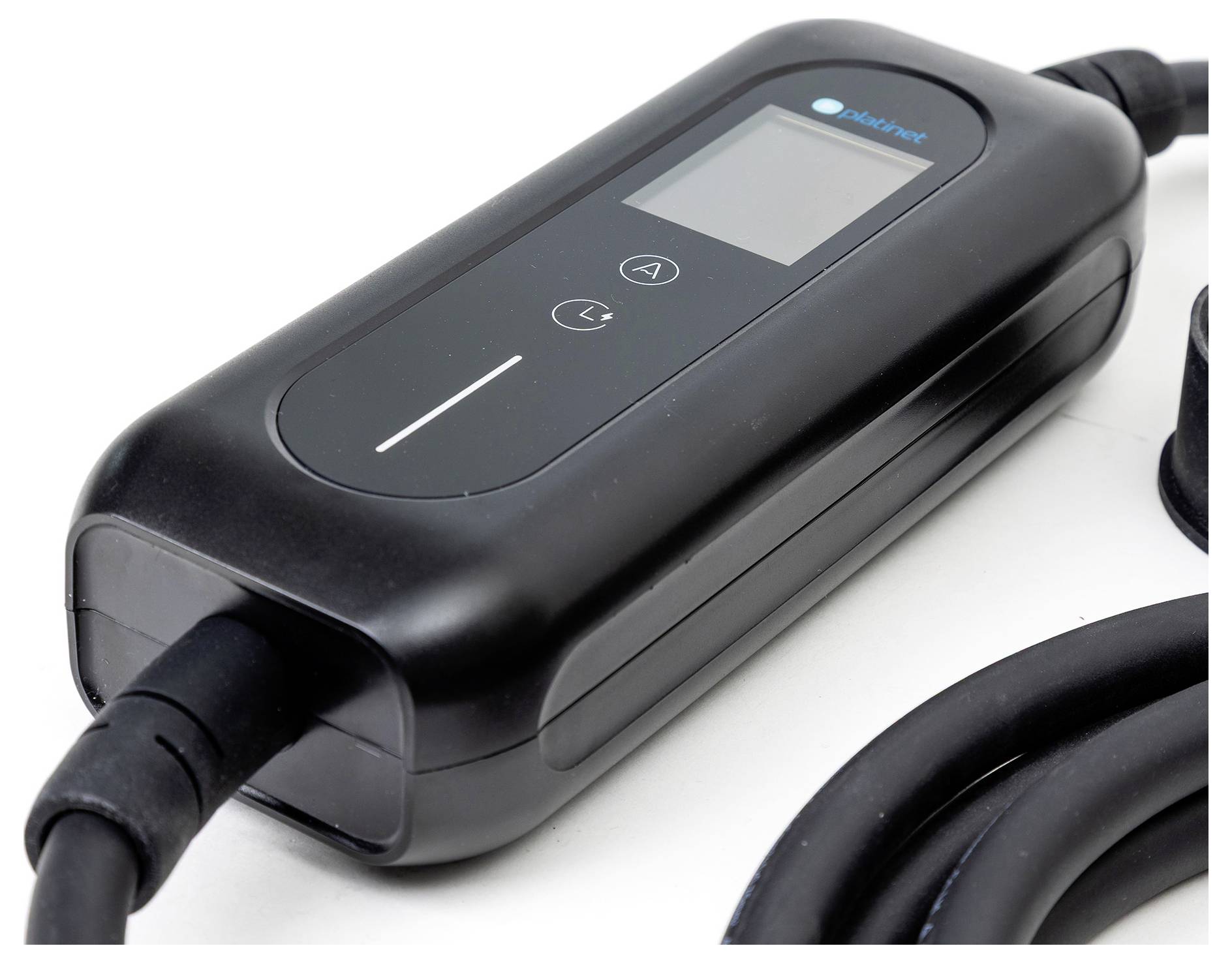

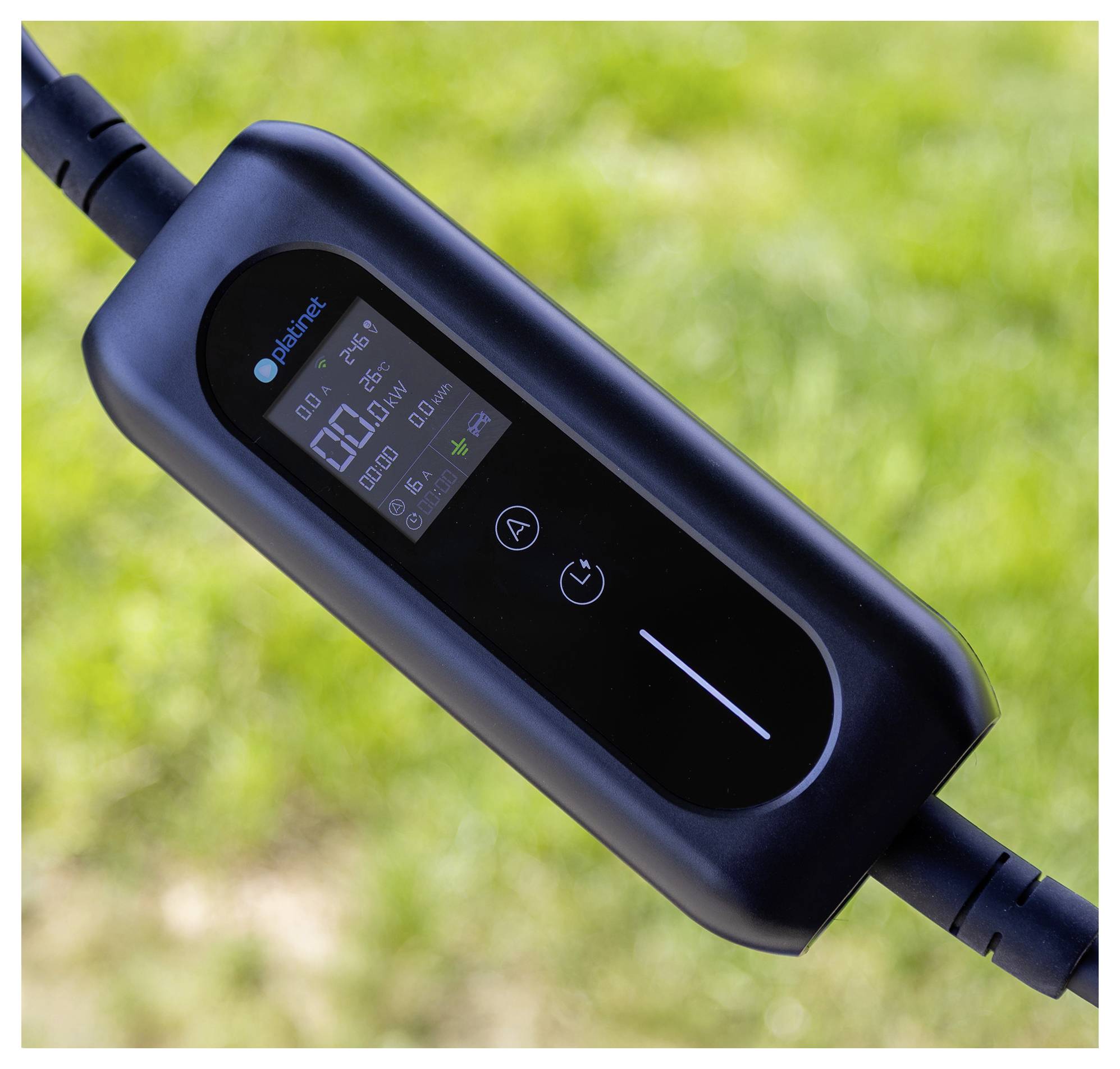

Informative LCD screen—displays all relevant charging information for easy monitoring.
Flexible settings: Allows you to adjust current settings and schedule charge sessions directly from the screen.
Fault current protection type B for AC [30 mA] and DC [6 mA] Leakage current.
Overcurrent monitoring: Automatically monitors and engages when the current exceeds the preset value by 20% or 2 A.
Voltage monitoring: Alarm and protection against overvoltage [greater than 270 V] and undervoltage [less than 80 V].
Ground-fault protection: Alarm and protection for unearthed sockets.
Temperature monitoring: Overheating alarm and protection at 80°C for the control box.
Diode test: Built-in CP diode integrity check for safe charging.
Pinking relay solution: Monitors relay for any terminals to prevent potential safety hazards.
This text is machine translated.
Flexible settings: Allows you to adjust current settings and schedule charge sessions directly from the screen.
Fault current protection type B for AC [30 mA] and DC [6 mA] Leakage current.
Overcurrent monitoring: Automatically monitors and engages when the current exceeds the preset value by 20% or 2 A.
Voltage monitoring: Alarm and protection against overvoltage [greater than 270 V] and undervoltage [less than 80 V].
Ground-fault protection: Alarm and protection for unearthed sockets.
Temperature monitoring: Overheating alarm and protection at 80°C for the control box.
Diode test: Built-in CP diode integrity check for safe charging.
Pinking relay solution: Monitors relay for any terminals to prevent potential safety hazards.
