Brennenstuhl 1384000010 eMobility charging cable 5 m Waterproof
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
Only 2 Piece(s) available
Highlights & Details

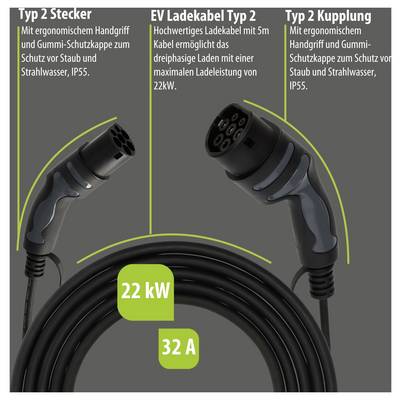

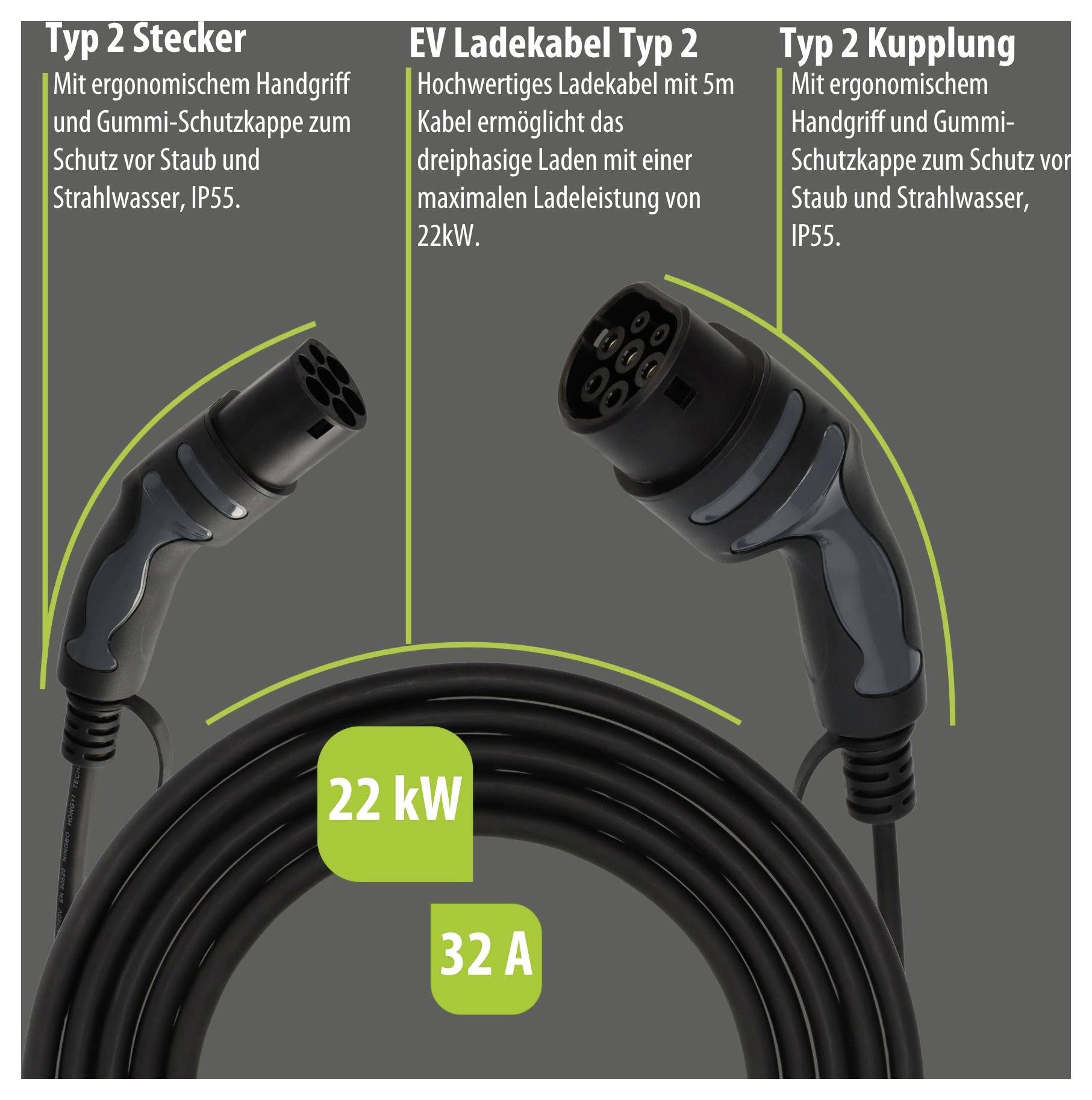

EV type 2 charging cable 22kW (E-mobility type 2 charging cable 5m, IP55, 3-phase, mode 3 charging cable with bag for electric & hybrid vehicles)

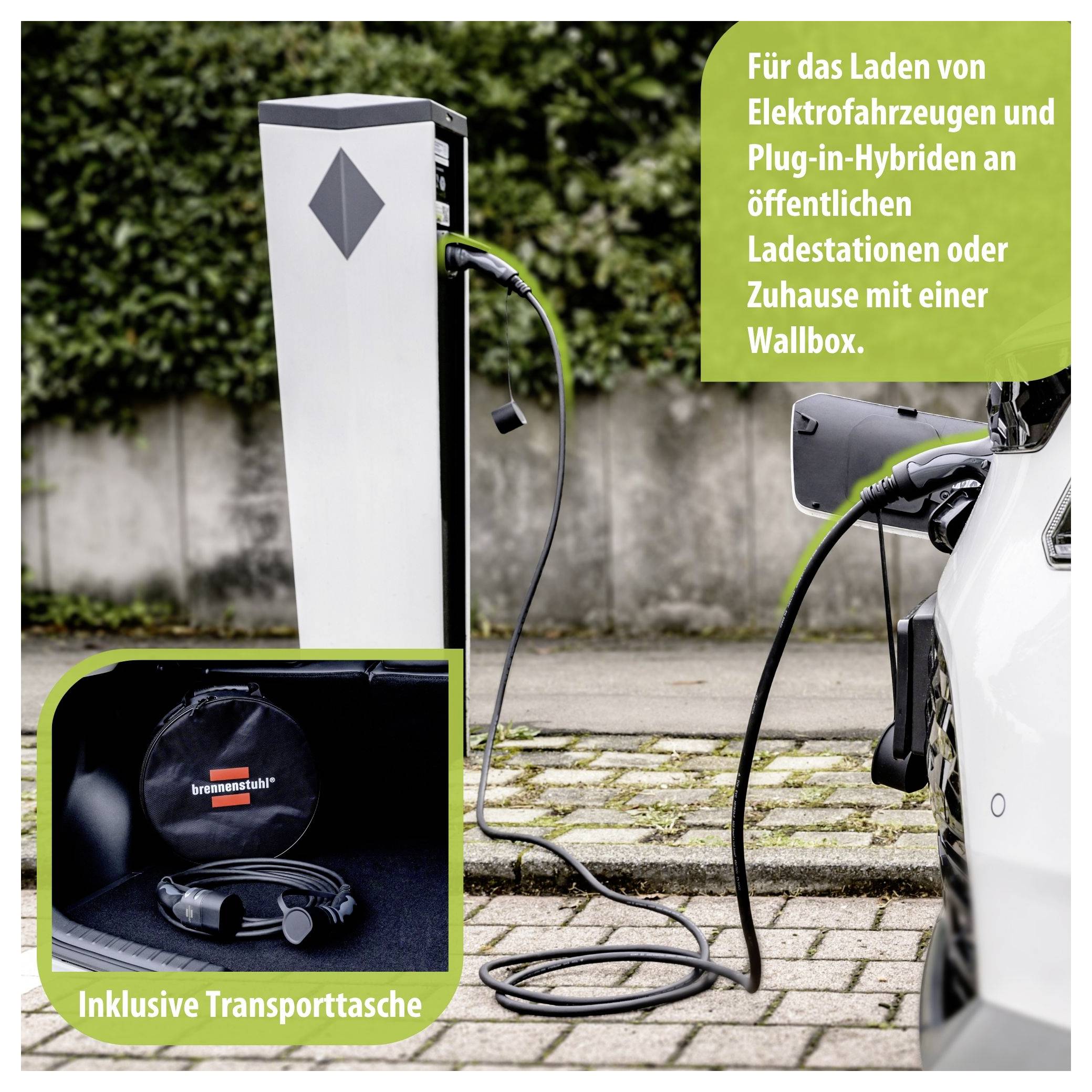

- The Mode 3 charging cable according to IEC 61851-1 is a standardized charging cable with type 2 plug and coupling according to IEC 62196-2 for charging electric vehicles and plug-in hybrids for a public charging station or home with a Wallbox
- The EV charging cable type 2 on type 2 with 5m cable enables three-phase charging with a maximum charging power of 22kW
- The cable is protected with the protection class IP55 against dust and jet-water - in addition, the protective caps of the plug prevent contamination
- The mobile charging cable with ergonomic grip offers easy handling for charging private and public charging boxes
- The charger cable comes with a transport case so that it can be transported easily and stored safely - fast, safe and convenient charging
Technical specifications
- Cable name: Other
- Cable length: 5 m
- With FI switch: No.
- Oil resistant: Yes
- Connection: Other
- Protection class (IP) IP55
- Suitable for outdoor use: Yes
- Product width (excluding packaging): 35.50 cm
- Product weight (excluding packaging): 3 kg
- Product height (excluding packaging): 7.20 cm
- Product length (without packaging): 35.50 cm
- UV-resistant: Yes
- Product type
eMobility charging cable
- No. of phases
3-phase
- Charging mode
Mode 3
- Cable length
5 m
- Cable features
Waterproof
- Nominal voltage
480 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP65
IP55
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging capacity
22 kW
- Charging current
32 A
- Version
Mains cable
- Factory colour
Multicolour
- Keyboard layout
German, QWERTZ
- Cable use
Current
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3439028 Brennenstuhl 1384000010 eMobility charging cable 5 m Waterproof
User & Safety Instructions
User & Safety Instructions 3439028 Brennenstuhl 1384000010 eMobility charging cable 5 m Waterproof
User & Safety Instructions 3439028 Brennenstuhl 1384000010 eMobility charging cable 5 m Waterproof
Warranty Terms
Warranty Terms 3439028 Brennenstuhl 1384000010 eMobility charging cable 5 m Waterproof
Description

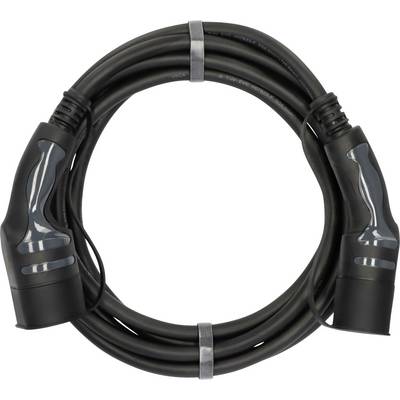

The EV type 2 22kW charging cable with 5m length of Brennenstuhl enables simple, fast and three-phase charging at public as well as private charging stations and wall boxes. For easy portability and secure storage, the charging cable is delivered with a practical transportation bag. In short, this charging cable provides a fast, secure and convenient way to charge electric & plug-in hybrid vehicles with a type 2 vehicle plug. With its robust features, easy to use and convenient bag, it is a reliable solution for owners of electric cars looking for a high-quality charging solution. The Type 2 charger cable also has the following features:
* Plug/coupling: Type 2 to type 2

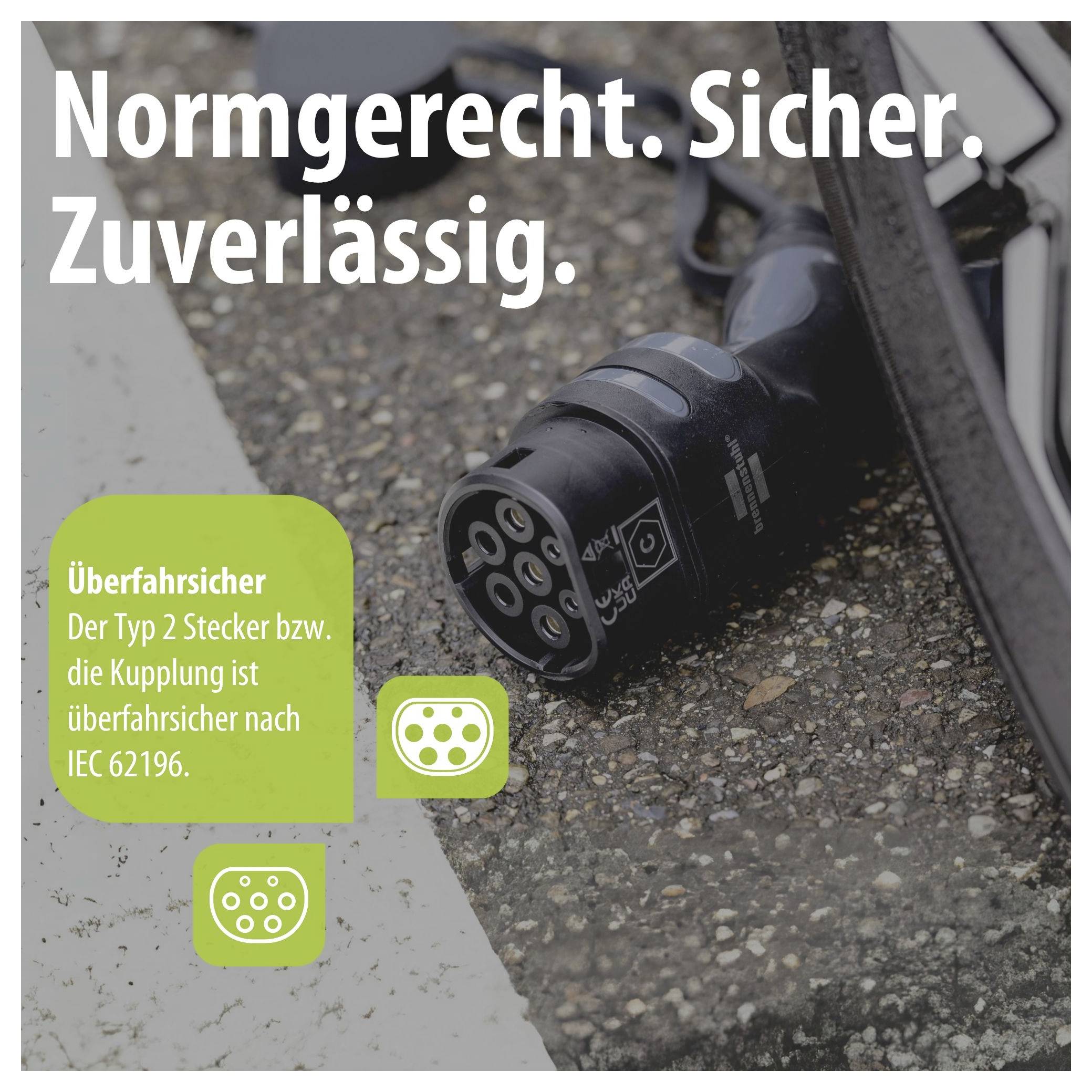

* The type 2 plug or the coupling is non-slip according to IEC 62196
* Charging mode: Mode 3
* Phases: 3-phase
* Cable length: 5m
* Rated current: 32A
* Rated voltage: 480V AC
* Ambient temperature: -30°C - +50°C.
* Degree of protection inserted: IP65
* Protection class unplugged with protective cap: IP55
This text is machine translated.
* Plug/coupling: Type 2 to type 2
* The type 2 plug or the coupling is non-slip according to IEC 62196
* Charging mode: Mode 3
* Phases: 3-phase
* Cable length: 5m
* Rated current: 32A
* Rated voltage: 480V AC
* Ambient temperature: -30°C - +50°C.
* Degree of protection inserted: IP65
* Protection class unplugged with protective cap: IP55
This text is machine translated.
Scope of delivery
- Brennenstuhl EV type 2 charging cable 22kW (E-mobility type 2 on type 2 charging cable 5m with bag, IP55, portable mode 3 charging cable for electric & hybrid vehicles BEV/PHEV)
