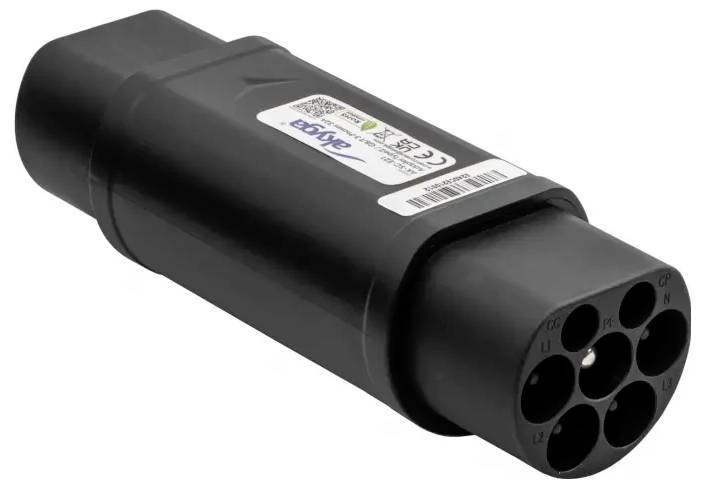

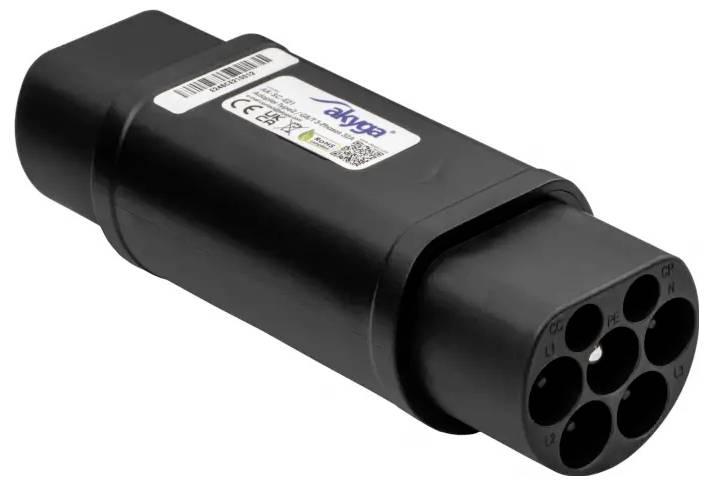

Akyga AK-SC-E21 Charging cable adapter [1x Type 2 (IEC 62196-2) plug - 1x GB/T (20234.2-2015) plug] Heat-resistant
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 119.99 / piece)
€ 119.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging: Cardboard box

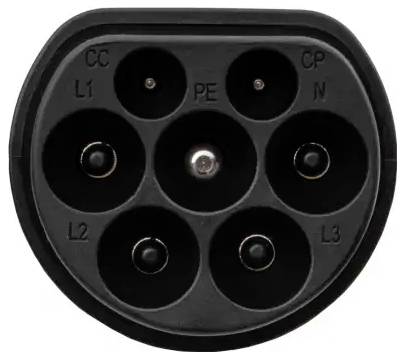

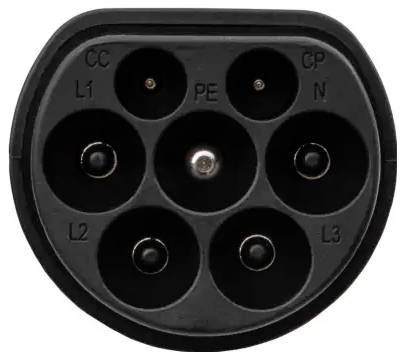

- Connection 1: Type 2 (IEC 62196-2) plug
- Connection 2: GB/T (20234.2-2015) plug
- Product color: Black
- Power supply voltage 240-450 V/50/60 Hz
- Number of phases: 3 phases
- Max. Current 32 A.
- Connection resistance 0.5 mΩ
- Power: 22 kW
- Flame protection UL94V-0
- IP rating: IP55
- Mounted socket: Silver
- Manufacturing material TPE
- Product type
Charging cable adapter
- Type A
Type 2 (IEC 62196-2) plug
- Type B
GB/T (20234.2-2015) plug
- No. of phases
3-phase
- Cable features
Heat-resistant
- Nominal voltage
450 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP55
- Min. temperature
-30 °C
- Max. temperature
50 °C
- Charging capacity
22 kW
- Charging current
32 A
- Factory colour
Black
- Height
59 mm
- Length
52 mm
- Width
165 mm
- No. of A connectors
1 x
- No. of B connections
1 x
- Weight
324 g
Documents & Downloads
Datasheet
Datasheet 3731354 Akyga AK-SC-E21 Charging cable adapter [1x Type 2 (IEC 62196-2) plug - 1x GB/T (20234.2-2015) plug] Heat-resistant
User & Safety Instructions
User & Safety Instructions 3731354 Akyga AK-SC-E21 Charging cable adapter [1x Type 2 (IEC 62196-2) plug - 1x GB/T (20234.2-2015) plug] Heat-resistant
Description

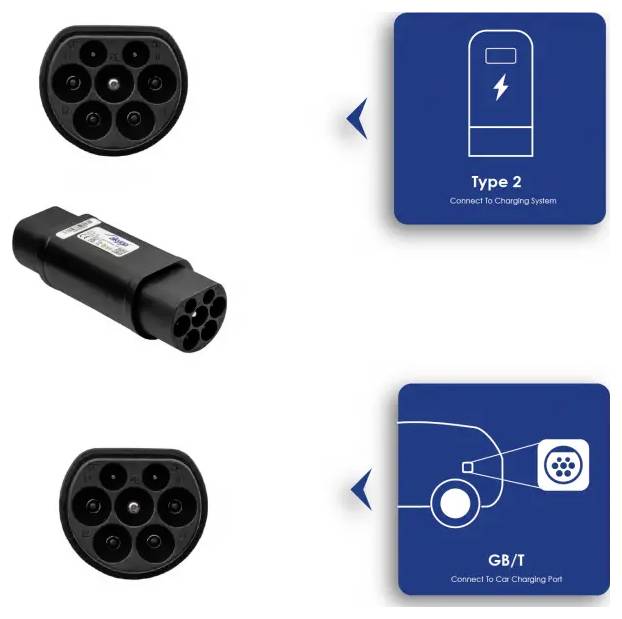

The Akyga® AK-SC-E21 Adapter is a practical solution for owners of electric vehicles imported from China. With this device you can charge cars, which are equipped with a GB/T-socket, via the type 2 charging stations, which are most common in Europe. With this adapter, drivers can use both public and private charging stations without restriction, regardless of the differences between the plug systems.
Versatility and compatibility with Chinese vehicles
The Type 2/GB/T plug adapter is designed for drivers of BYD, NIO, XPg, Geely and Dongfeng electric cars. It allows vehicles using the Chinese GB/T standard to be loaded via the European loading infrastructure. This makes it the perfect solution for users who have imported their cars from Asia and need a universal tool for daily charging.
High performance and quick charging
The Type 2 to GBT adapter supports three-phase charging with a maximum current of 32 A, providing a quick and stable power supply for the vehicle battery. This enables an efficient use of the charging station, without you having to worry about voltage drops or overheating of the plugs. This is particularly important if you are using high-performance public EV chargers.
Safety and durable construction
The Type 2/GBT adapter AK-SC-E21 is made of high-quality, impact and heat-resistant materials that ensure long-term reliability. Silver-plated contacts provide an excellent electrical conductivity, while the precision-manufactured plugs exclude the risk of accidental disconnection during the charging process. The adapter conforms to strict safety standards and protects both the vehicle and the user.
Comfortable use in all conditions
Thanks to its compact and ergonomic design, the EV adapter is easy to handle even in confined spaces. Its high humidity and dust resistance makes it suitable for garages in the house as well as charging stations in the open. The AK-SC-E21 is an indispensable accessory for every driver of a Chinese electric vehicle in Europe.
This text is machine translated.
Versatility and compatibility with Chinese vehicles
The Type 2/GB/T plug adapter is designed for drivers of BYD, NIO, XPg, Geely and Dongfeng electric cars. It allows vehicles using the Chinese GB/T standard to be loaded via the European loading infrastructure. This makes it the perfect solution for users who have imported their cars from Asia and need a universal tool for daily charging.
High performance and quick charging
The Type 2 to GBT adapter supports three-phase charging with a maximum current of 32 A, providing a quick and stable power supply for the vehicle battery. This enables an efficient use of the charging station, without you having to worry about voltage drops or overheating of the plugs. This is particularly important if you are using high-performance public EV chargers.
Safety and durable construction
The Type 2/GBT adapter AK-SC-E21 is made of high-quality, impact and heat-resistant materials that ensure long-term reliability. Silver-plated contacts provide an excellent electrical conductivity, while the precision-manufactured plugs exclude the risk of accidental disconnection during the charging process. The adapter conforms to strict safety standards and protects both the vehicle and the user.
Comfortable use in all conditions
Thanks to its compact and ergonomic design, the EV adapter is easy to handle even in confined spaces. Its high humidity and dust resistance makes it suitable for garages in the house as well as charging stations in the open. The AK-SC-E21 is an indispensable accessory for every driver of a Chinese electric vehicle in Europe.
This text is machine translated.
