Name: Akyga Button cell CR 2032 3 V 1 pc(s) 210 mAh Li-MnO2 CR2032 HP2D
Brand: Akyga
SKU: 3421062
Availability: InStock

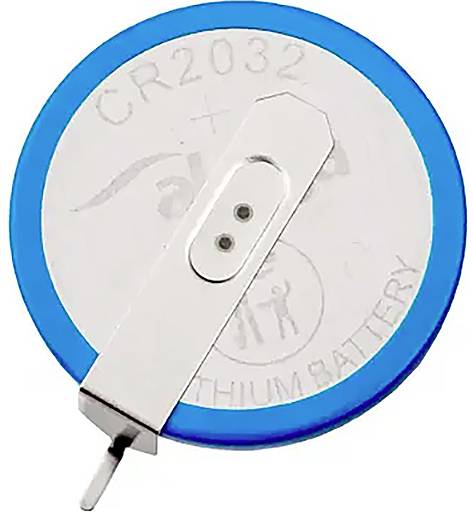

A CR2032 lithium battery with a blue border and a metal bracket on the top surface.

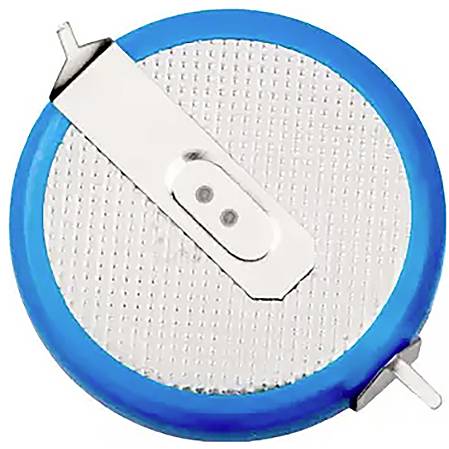

Blue button cell battery with silver top surface and two contacts, used for electronic devices.

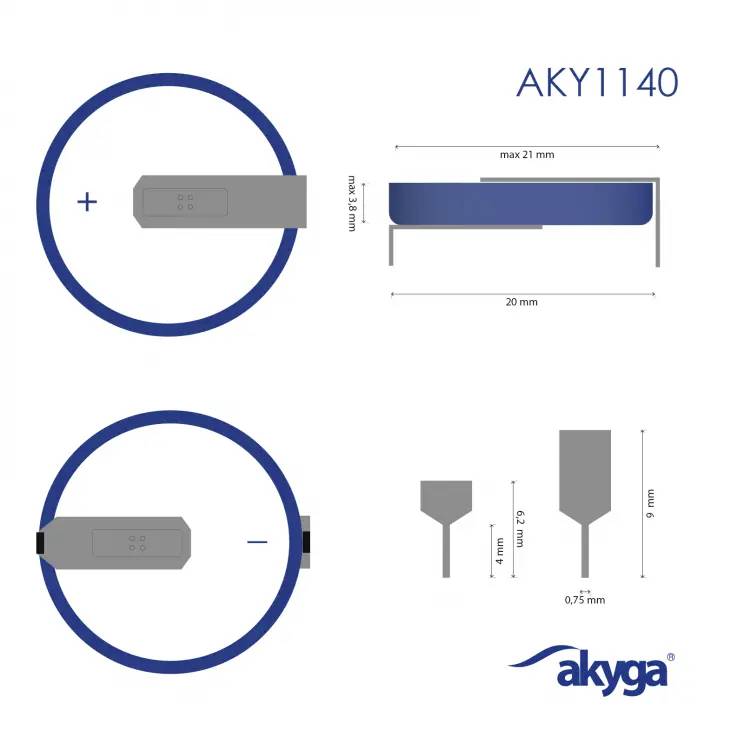

'Akyga AKY1140 Battery' in illustrations. Top: Dimensions 21x85 mm and 20 mm, positive terminal visible. Bottom: Negative terminal visible, measurements: 4 mm thickness, 9 mm width.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

67 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.99 / piece)

€ 1.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Voltage: 3 V
Capacity 210 mAh
Length 21 mm
Width 21 mm
Height: 9 mm
Net weight: 3 g
Cell type: Li-MnO2
Battery label: CR2032 H2D
Min. Operating temperature: -20 °C
Max. Operating temperature +60 °C
Number of units: 1 units

Product type: Button cell

Size: CR 2032

Dim: (L x W x H) 21 x 21 x 9 mm

Technology: Li-MnO2

Voltage: 3 V

Capacity (mAh, Ah): 210 mAh

Height: 9 mm

Weight: 3 g

Content: 1 pc(s)

Rechargeable: No

Length: 21 mm

Width: 21 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3421062 Akyga Button cell CR 2032 3 V 1 pc(s) 210 mAh Li-MnO2 CR2032 HP2D

Description

The Akyga® AKY2495 is a high-quality CR2032 HP2D lithium battery with a voltage of 3 V and a capacity of 210 mAh, which is equipped with cables welded directly to the cell. This enables easy installation in electronic circuits and guarantees reliability and a long service life.
Lithium-manganese technology (Li-MnO2)
The CR2032 HP2D battery is based on the lithium-manganese technology (Li-MnO2) that ensures stable voltage and high energy efficiency. Their capacity of 210 mAh provides for a long-lasting power supply to devices, while the low self-discharge rate enables longer storage without loss of performance.
Suitable for everyday challenges
With an operating temperature range from -20°C to +60°C, the CR2032 HP2D battery is suitable for the home as well as for the more demanding environments. Its versatility makes it Ideal for a variety of applications.
Easy installation with connection terminals
The Akyga® AKY2495 battery is equipped with 2-pin connectors that allow quick and easy connection to electronic circuits without the need for additional modifications. This is Ideal for DIY projects, IoT devices or devices that require a stable and permanent installation.
Applications of the CR2032 HP2D battery
The pin-out lithium battery is used in devices such as real-time clocks, controllers, memory modules or specialized medical electronics. Because of its reliability it is also the battery of choice for emergency power systems in computers, sensors or surveillance systems.
Durability and convenience
The CR2032 HP2D Akyga® battery has a long service life and stable performance and is therefore suitable Ideal for applications requiring long-term reliability. Its resistance to self-discharge ensures that it is ready for use even after prolonged storage.

This text is machine translated.
