Name: Akyga PC power supply unit 500 W ATX 80 PLUS Bronze
Brand: Akyga
SKU: 3731382
Availability: InStock

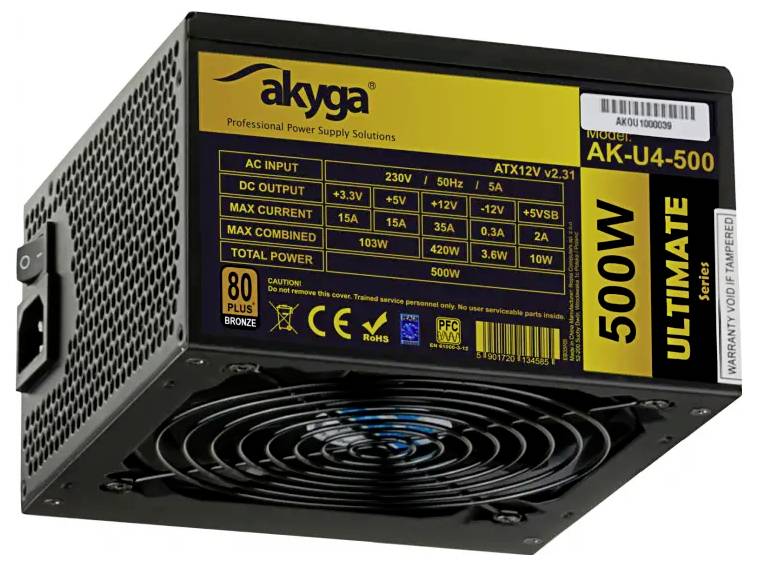

'500W Ultimate' Akyga power supply unit, featuring AC input of 230V, output of 50Hz, max current 15A, and 80 Plus Bronze certification.

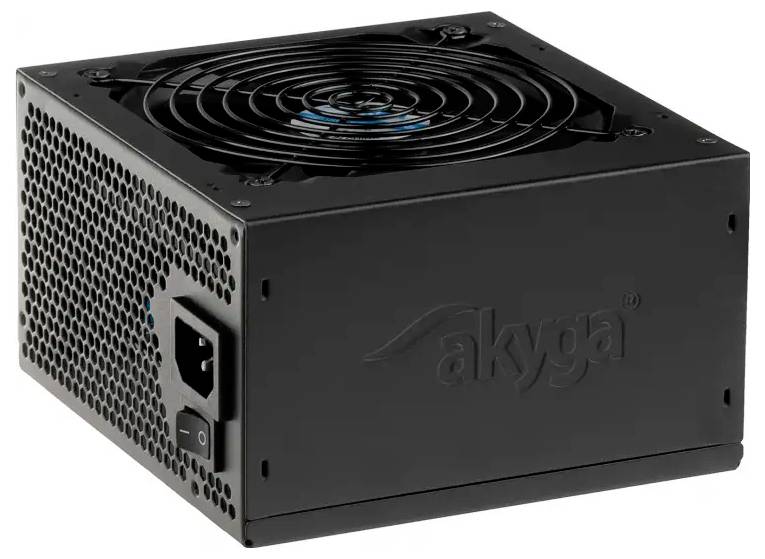

'Akyga' branded computer power supply unit with a fan on top and power switch at the back, designed for desktop PCs.

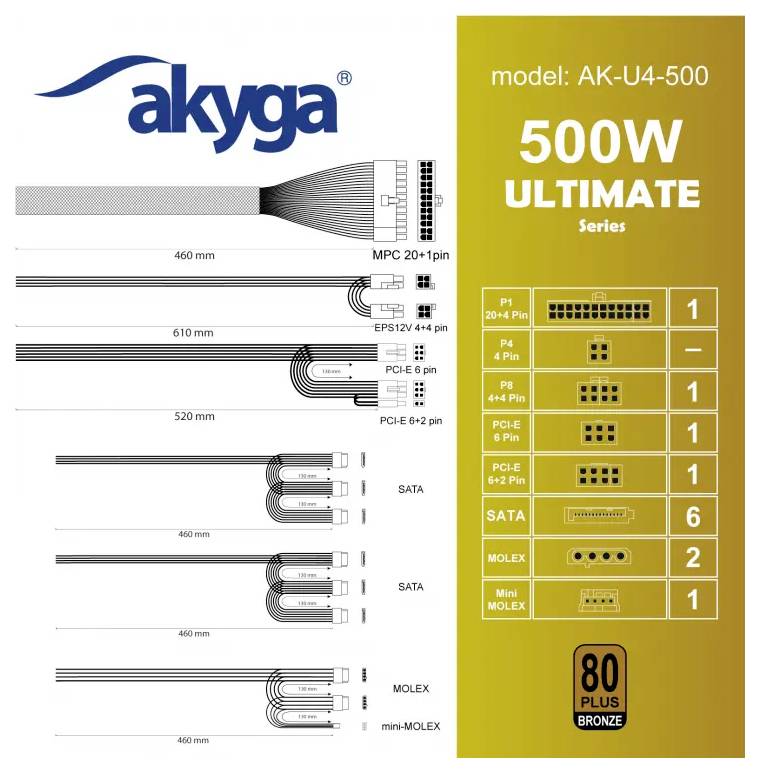

'akyga model: AK-U4-500 500W ULTIMATE Series'. Diagram shows cable types, lengths, and connections: MPC, EPS12V, PCI-E, SATA, MOLEX. 80 PLUS Bronze certified.

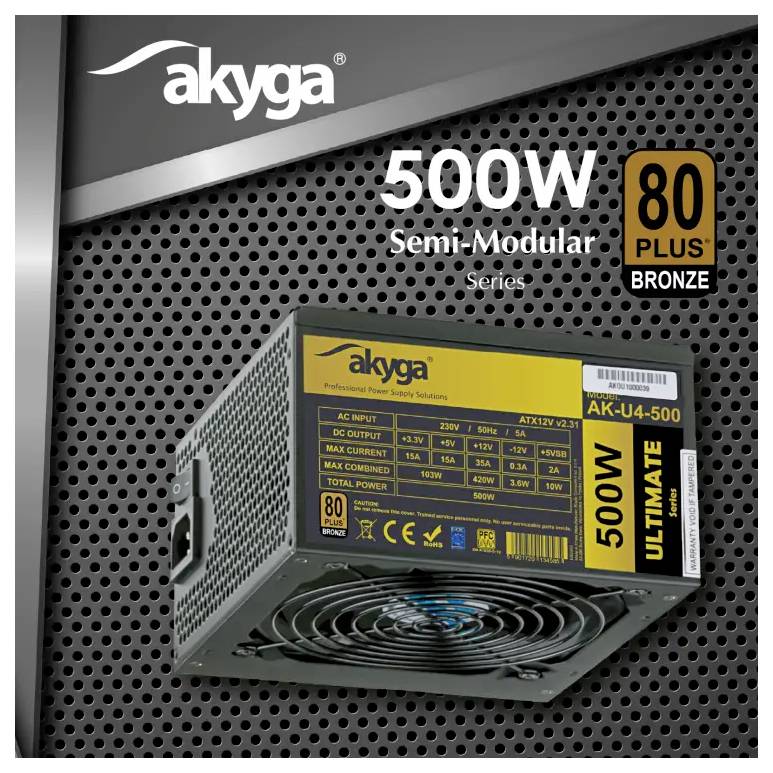

'akyga 500W Semi-Modular Series 80 PLUS BRONZE' power supply unit, model AK-U4-500, with various output specifications listed.

1/4

Product type

PC power supply unit

PSU output power

500 W

Certification

80 PLUS Bronze

Form factor

ATX

Factory colour

Black

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 57.99 / piece)

€ 57.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Akyga PC power supply unit

Power supply unit output 500 W
PCI-Express (6+2-Pin) 1x
Cable management
80 PLUS Bronze

Technical specifications

Packaging: EcoBox
Grounding: Yes
Cable length 45 - 75 cm
TRACK 1: C/E/F ( CEE 7/7 )
Connection 2 IEC C13
Product color: Black
Series: Ultimate
Supply voltage 230 V
Output: 500 W
Manufacturing material: Galvanized steel
Power input < 5 A.
Power supply line: IEC C14
Mechanical shut-off switch: Yes
OVP fuse: Yes
OCP Backup: Yes
OTP fuse: Yes
OPP fuse: Yes
SCP fuse: Yes
MTBF: 100000 h
Format ATX 2.31
Capacity: > 80%
80 PLUS match: Yes
Current in line +3.3V: 15 A.
Current in line +5V: 15 A.
Load of line +3.3V and +5V: 103 W.
Current in line +12V: 35 A.
Load of the line 12V: 420 W
Supply MPC connector: 24-pin
Female EPS12V 8-pin connector: 1 ( 4 + 4-pin )
Supplying PCI-E 6+2 Pin-Plugs: 1 pcs
Supply Molex connector: 2 pieces
Supply SATA connector: 6 pieces
Modular Power Supply: No.
PFC filter: Active
UVP fuse: Yes
Fan size: 120 mm
Fan rotation regulation: Automatic
Supply cable in set: Yes
Supportive PCI-E 6 Pin-PLUG:1 pcs
Accessories included: Power cable
80 PLUS-certificate: Bronze
Power supply mini-Molex-plug: 1 pieces

Product type: PC power supply unit

PSU output power: 500 W

Certification: 80 PLUS Bronze

Form factor: ATX

Factory colour: Black

Dim: (L x W x H) 85 x 140 x 150 mm

Height: 150 mm

Width: 140 mm

Weight: 1.26 kg

5 V DC: 15 A

24-pin: 1

4-pin Molex: 2

4+4 pin ATX/EPS 12V: 1

6-pin PCIe: 1

6-pin PCIe: 1

5-pin SATA: 6

Power rating: 0 - 500 W

Type A: PG plug

Type B: IEC C13 socket (cooling devices)

Length: 85 mm

No. of A connectors: 1 x

No. of B connections: 1 x

Fan size: 120 mm

3.3V DC: 15 A

Operating voltage: 230 V / AC

Max. temperature: 50 °C

Min. temperature: 5 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3731382 Akyga PC power supply unit 500 W ATX 80 PLUS Bronze

User & Safety Instructions

User & Safety Instructions 3731382 Akyga PC power supply unit 500 W ATX 80 PLUS Bronze

Description

High efficiency – certified power supply with 80 PLUS Bronze-standard

Actual power - the power supply provides 500 W continuous power

Large selection of connectors – the product has a set of connectors required

Quiet operation - optimal cooling when working at maximum speed is ensured by an efficient 12 cm fan

A range of protective devices – the protection of the device against damage is ensured by a series of protective devices

Easy to install – long cable of 45 - 75 cm length for a convenient installation inside the casing
