Akyga PC power supply unit 600 W ATX 80 PLUS
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
600 W
Modular
Semi-modular
Certification
80 PLUS
Form factor
ATX
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Only 2 Piece(s) available
Akyga PC power supply unit
Highlights & Details
- Power supply unit output 600 W
- PCI-Express (6+2-Pin) 2x
- Cable management Semi-modular
- 80 PLUS
Technical specifications
- Packaging: EcoBox
- Grounding: Yes
- Cable length 50 - 95 cm
- TRACK 1: C/E/F ( CEE 7/7 )
- Connection 2 IEC C13
- Product color: Black
- Series: Pro Modular
- Supply voltage 230 V
- Output: 600 W
- Manufacturing material: Galvanized steel
- Power input < 5 A.
- Power supply line: IEC C14

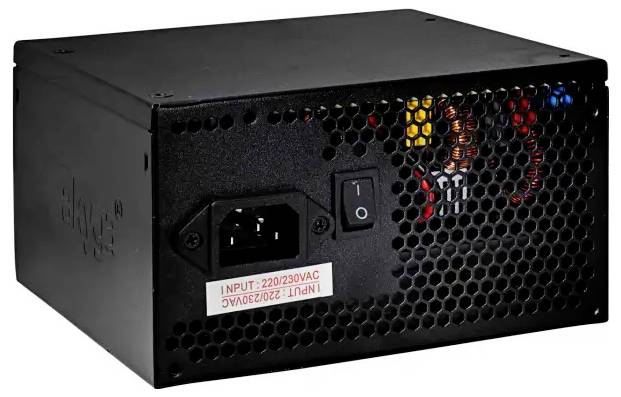

- Mechanical shut-off switch: Yes
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- OPP fuse: Yes
- SCP fuse: Yes
- MTBF: 100000 h
- Format ATX 2.31
- Capacity: > 70%
- 80 PLUS match: Yes
- Current in line +3.3V: 13 A.
- Current in line +5V: 13 A.
- Load of line +3.3V and +5V: 105 W.
- Current in line +12V: 40 A.
- Supply MPC connector 20+4 pin
- Female EPS12V 8-pin connector: 1 ( 4 + 4-pin )
- Supplying PCI-E 6+2 Pin-Plugs: 2 pieces
- Supply Molex connector: 3 pieces
- Supply SATA connector: 5 pieces
- Modular power supply: Semi-modular
- PFC filter: Active
- Fan size: 120 mm
- Fan rotation regulation: Automatic
- Supply cable in set: Yes

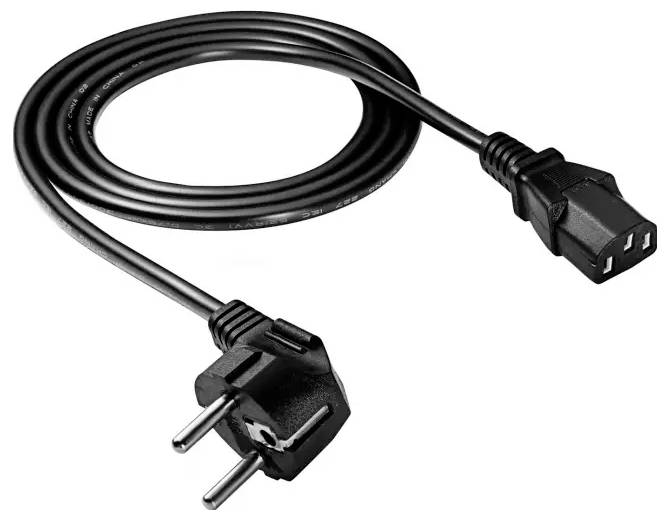

- Accessories included: Power cable
- Product type
PC power supply unit
- PSU output power
600 W
- Modular
Semi-modular
- Certification
80 PLUS
- Form factor
ATX
- Factory colour
Black
- Dim
(L x W x H) 85 x 150 x 145 mm
- Height
145 mm
- Width
150 mm
- Weight
1.57 kg
- +12 V/DC (1)
40 A
- 5 V DC
13 A
- 8-pin 12 V
1
- 24-pin
1
- 20+4-pin.
1
- 4-pin Molex
3
- 4+4 pin ATX/EPS 12V
1
- 6-pin PCIe
2
- 5-pin SATA
5
- Output rating > 500 W
600 W
- Power rating
501 - 750 W
- Type A
PG plug
- Type B
IEC C13 socket (cooling devices)
- Length
85 mm
- No. of A connectors
1 x
- No. of B connections
1 x
- Fan size
120 mm
- 3.3V DC
13 A
- Operating voltage
230 V / AC
- Max. temperature
50 °C
- Min. temperature
5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3731380 Akyga PC power supply unit 600 W ATX 80 PLUS
User & Safety Instructions
User & Safety Instructions 3731380 Akyga PC power supply unit 600 W ATX 80 PLUS
Description

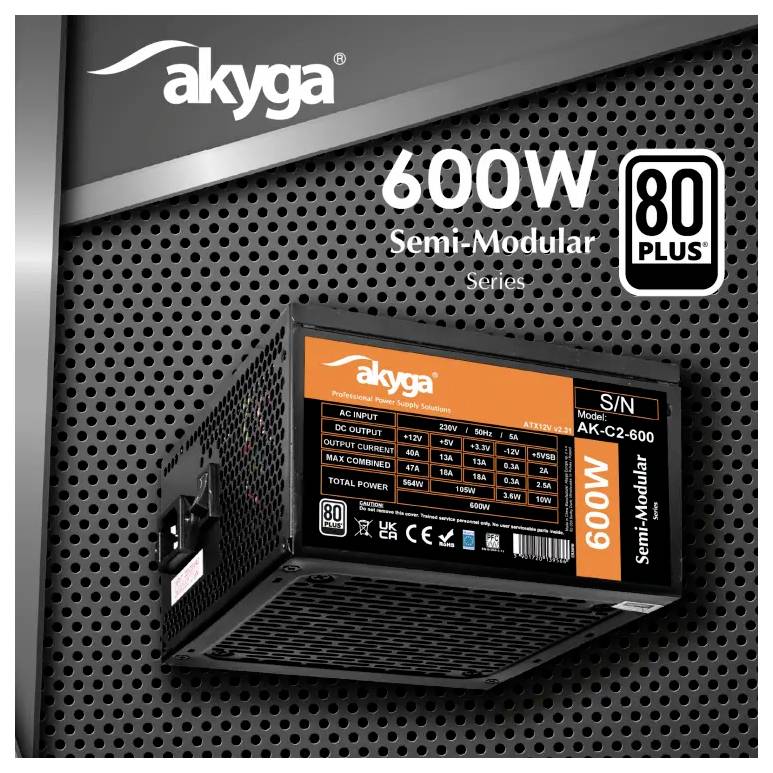

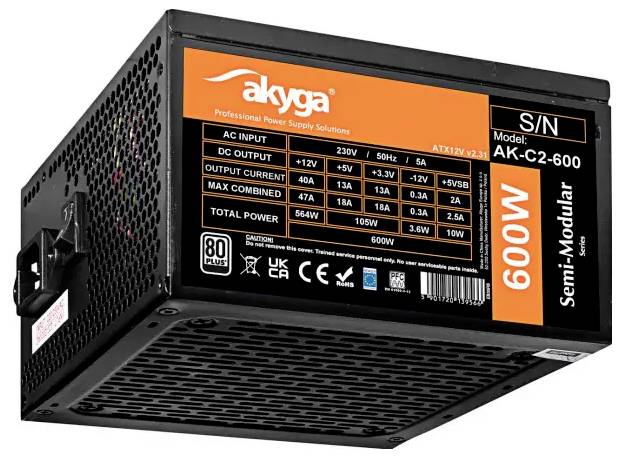

The Akyga® AK-C2-600 ATX power supply from the Classic series is an advanced solution, Ideal for all, who are looking for a stable and reliable power supply for their PC. This semi-modular ATX power supply offers 600 W output and is therefore an excellent choice for office PCs and modern home appliances. Compliance with the 80-PLUS certification also ensures efficient operation with minimal power losses. And the active PFC optimizes the power factor and reduces the power consumption.

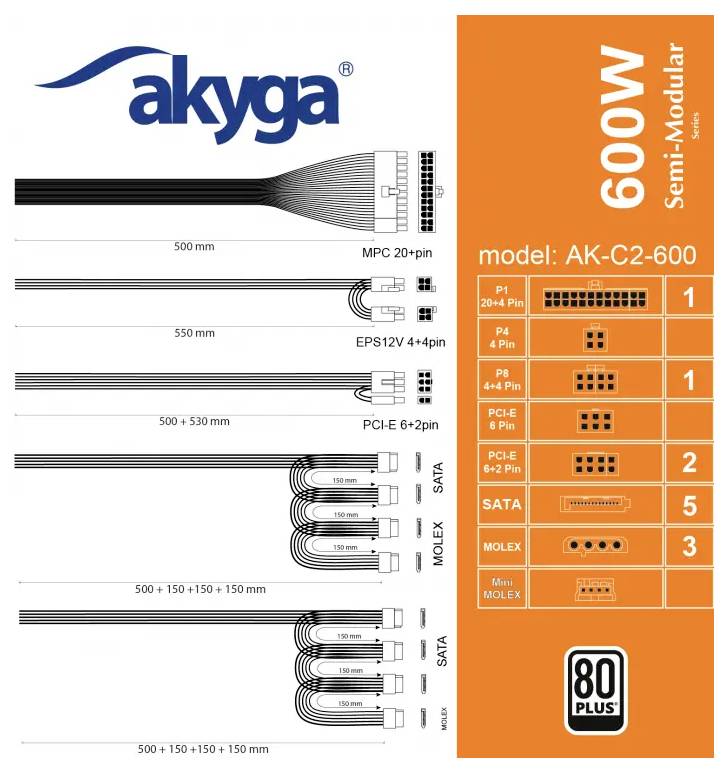

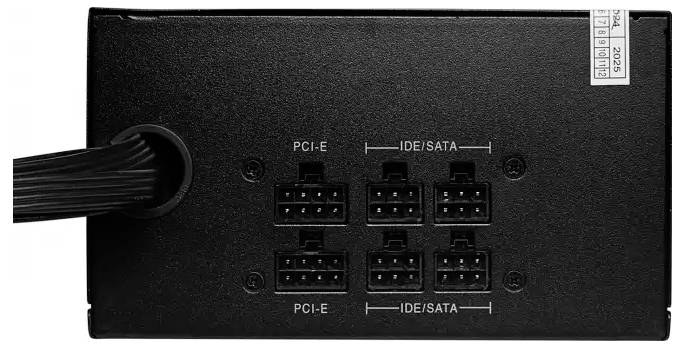

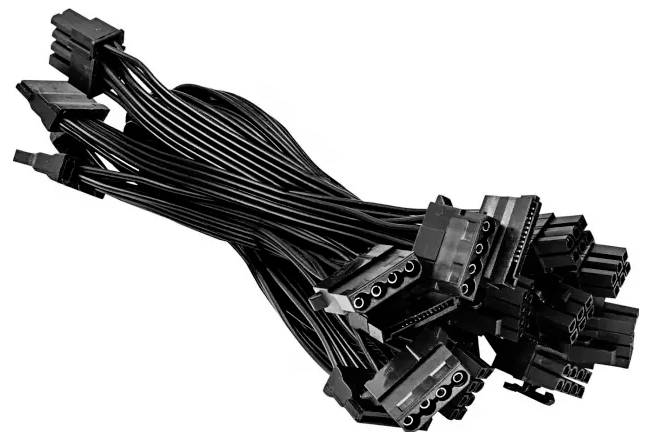

The Akyga® AK-C2-600 ATX power supply has a variety of connections that allow the flexible connection of different components. Modular connectors include: One 8-pin (4+4-pin) connector, two 6+2-pin PCI-E connectors, three Molex connectors, and five SATA connectors that make it easy to connect hard drives, SSDs, graphics cards, and other peripherals. The 20+4-pin plug is firmly connected to the power supply and ensures a stable connection to the motherboard. The flat, modular cables with a length of 50-95 cm facilitate the organization within the computer housing and improve the air flow.
One of the main features of this ATX power supply is its design with modern electronic components, which conform to the latest technological standards. Carefully selected elements ensure longevity and stability and guarantee reliability over long periods of intensive use.

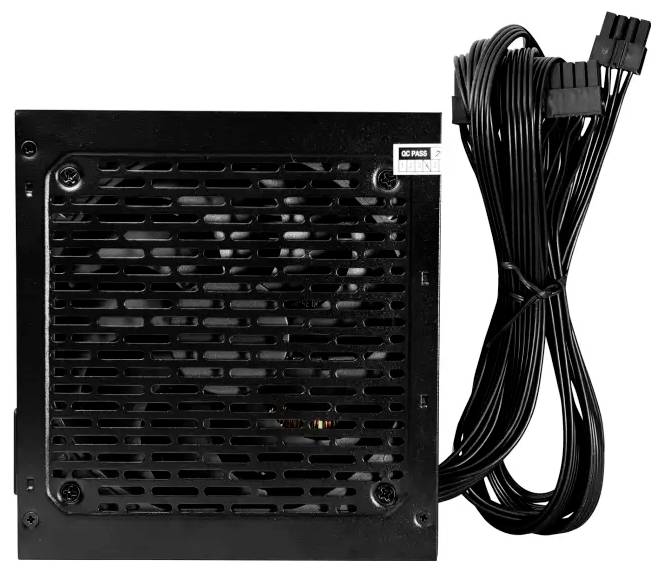

The housing of the semi-modular power supply is decorated in an elegant black, which fits perfectly to most of the computer housings and gives a modern and professional look. The inside of the ATX power supply is equipped with a quiet 120-mm fan, which provides for an excellent air circulation and maintains the optimum operating temperature of the device without increasing the noise level.
The Akyga® AK-C2-600 ATX power supply is a reliable and efficient solution for demanding users looking for a stable power source for their modern computer systems. Choose this semi-modular computer power supply, in order to enjoy the highest quality and reliability of the performance of your PC.
This text is machine translated.
The Akyga® AK-C2-600 ATX power supply has a variety of connections that allow the flexible connection of different components. Modular connectors include: One 8-pin (4+4-pin) connector, two 6+2-pin PCI-E connectors, three Molex connectors, and five SATA connectors that make it easy to connect hard drives, SSDs, graphics cards, and other peripherals. The 20+4-pin plug is firmly connected to the power supply and ensures a stable connection to the motherboard. The flat, modular cables with a length of 50-95 cm facilitate the organization within the computer housing and improve the air flow.
One of the main features of this ATX power supply is its design with modern electronic components, which conform to the latest technological standards. Carefully selected elements ensure longevity and stability and guarantee reliability over long periods of intensive use.
The housing of the semi-modular power supply is decorated in an elegant black, which fits perfectly to most of the computer housings and gives a modern and professional look. The inside of the ATX power supply is equipped with a quiet 120-mm fan, which provides for an excellent air circulation and maintains the optimum operating temperature of the device without increasing the noise level.
The Akyga® AK-C2-600 ATX power supply is a reliable and efficient solution for demanding users looking for a stable power source for their modern computer systems. Choose this semi-modular computer power supply, in order to enjoy the highest quality and reliability of the performance of your PC.
This text is machine translated.
