Name: Alutruss DECOLOCK DQ4-500 Quad truss 50 cm
Brand: Alutruss
SKU: 593919
Availability: InStock

Diagram shows three parallel pipes with cross-beams supporting the structure. Dimensions of 185 and 220 mm are indicated between the pipes.

Technical drawing of a steel beam with four round tubes. Labelled with dimensions: 220 mm and 185 mm between the tubes.

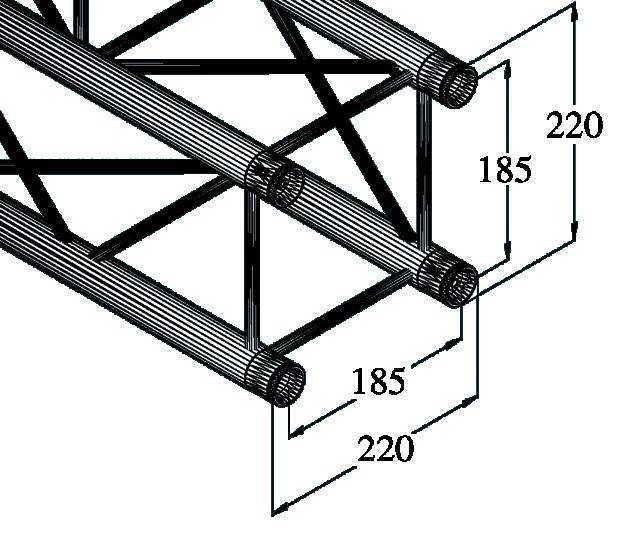

Diagram of a tube grid with dimensions: 220 cm width, 185 cm height, showing construction of cylindrical elements and connections.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DECOLOCK DQ4-500 4-point traverse

4-point lightweight traverse system

Technical specifications

Longitudinal pipes 35 x 2 mm
10 x 2 mm struts
Pipe material AlMgSi 0.5
Welding material ALMg 5
Welding method TIG pulse.
Dimensions 185 mm (center of hole - center of hole)
Dimensions 220 mm
Length: 500 mm

Product type: Quad truss

Tube diameter: 35 mm

Length: 50 cm

Width: 22 cm

Height: 22 cm

Weight: 1.9 kg

Dim: (L x W x H) 50 x 22 x 22 cm

Documents & Downloads

Datasheet

Datasheet 593919 Alutruss DECOLOCK DQ4-500 Quad truss 50 cm

User & Safety Instructions

User & Safety Instructions 593919 Alutruss DECOLOCK DQ4-500 Quad truss 50 cm

Description

4-point lightweight traverse system · High-quality aluminum pipes with 35 mm diameter · Easy mounting by quick-lock connector · Very low weight · For trade fair and shop construction, discotheques and theater facilities

This text is machine translated.
