Buy Amphenol B1121A1-ND3G-1-50 B1121A1-ND3G-1-50 BNC connector Plug, straight 50 Ω 1 pc(s)

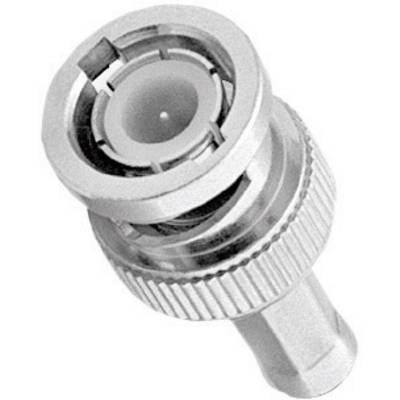

A metallic coaxial plug with a knurled grip shows its connection side facing upwards, commonly used in communication devices.

Image similar

Cable category

RG 58

Product type

BNC connector

Connector type

Plug, straight

Impedance

50 Ω

Connection

Soldering

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

462 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 3.61 / piece)

€ 3.61

plus VAT.

Report legal concerns

Highlights & Details

Amphenol B1121A1-ND3G-1-50 B1121A1-ND3G-1-50 BNC connector Plug, straight 50 Ω 1 pc(s)

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Technical specifications

Cable category: RG 58

Product type: BNC connector

Connector type: Plug, straight

Impedance: 50 Ω

Connection: Soldering

Content: 1 pc(s)

Cable Ø: 5.60 mm

Max. frequency: 4 GHz

Manufacturer part #: B1121A1-ND3G-1-50

Insulation material: POM

Material (details): Nickel-plated brass

Type: B1121A1-ND3G-1-50

Connection: Crimp

Cable diameter (details): 5.6 mm

Documents & Downloads

Datasheet

Datasheet 748257 Amphenol B1121A1-ND3G-1-50 B1121A1-ND3G-1-50 BNC connector Plug, straight 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 748257 Amphenol B1121A1-ND3G-1-50 B1121A1-ND3G-1-50 BNC connector Plug, straight 50 Ω 1 pc(s)

Description

All of the connectors made of nickel-plated brass and of industrial quality. Contacts: Plug: gold-plated brass, Socket: Beryllium copper gold-plated. Contact resistor: Inner conductor 1.5 mΩ, Outer conductor 1 mΩ, Insulation resistance 5000 MΩ.
