APEM 13445A-4GX768 13000 Serie Toggle switch, Main switch, Switch, On/Off switch latch 1 pc(s)

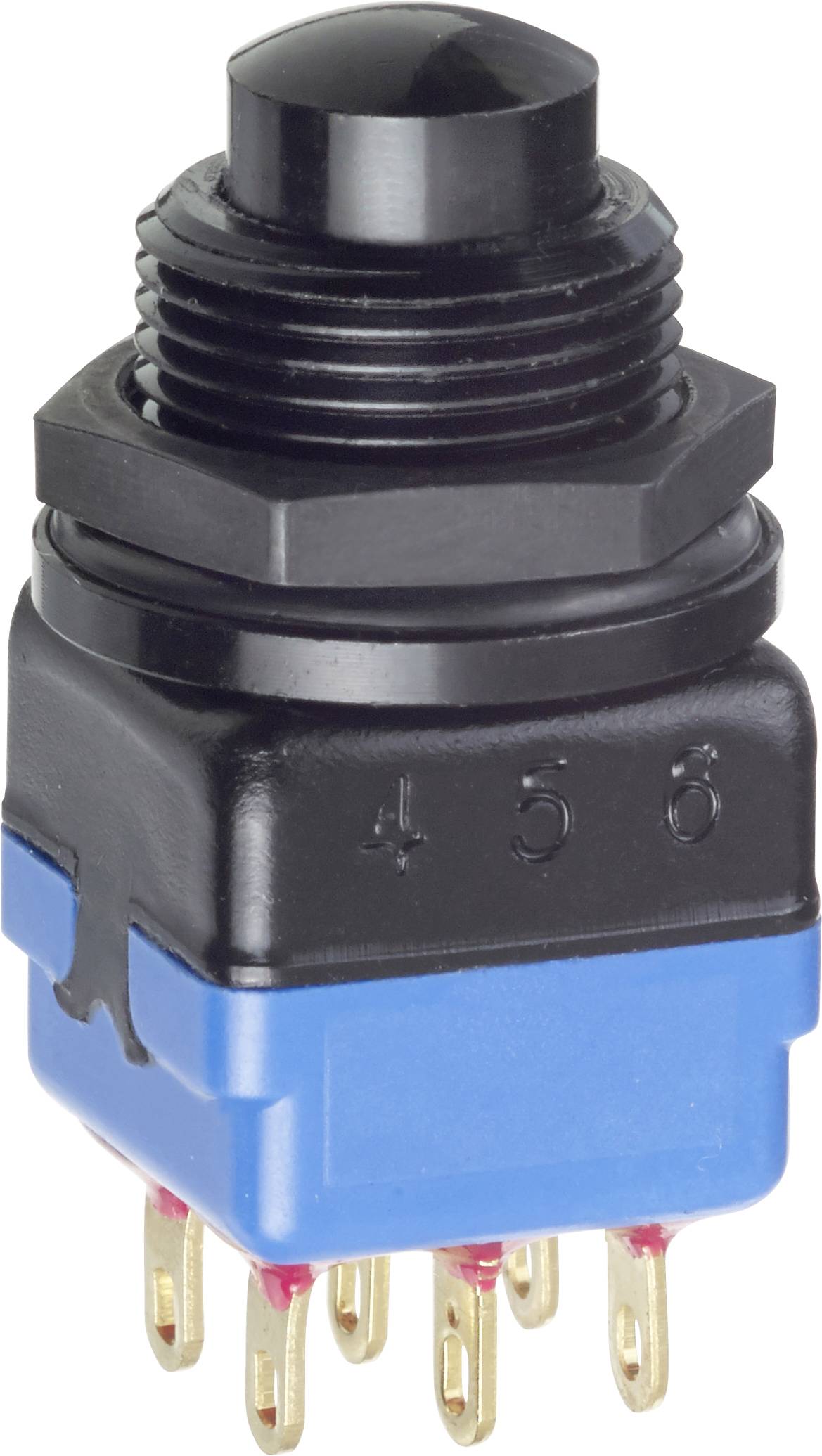

'A black push-button switch with a blue base and multiple gold pins, labeled with numbers 4, 5, 6 on the side.'
Product type
Toggle switch
Connection
Solder tag
Switch/button features
for pushbutton
Casing/button colour
Black
Functions
latch
Datasheet (PDF)
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 39.73 / piece)
€ 39.73
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Panel switch

  • Approvals: No agency approval required.
  • Number of rods: Double pole
  • Electrical functions:ON
  • Contact materials: Silver
  • Done: Black surface
  • Piston:4 mm 157 long for 119 15 32 socket X768
  • Seal: Epoxy-sealed connections
  • Terminals and sockets: Solder lug: Right angle: Right angle
  • Special options: Socket 119 15 32 front panel seal

Our service for you

Technical specifications

Product type

Toggle switch

Switch/button features

for pushbutton

Casing/button colour

Black

Functions

latch

Contact material

Silver

Connection

Solder tag

Bounce duration

max. 2 ms

Min. temperature

-40 °C

Max. temperature

85 °C

Content

1 pc(s)

Insulation resistance

1 GΩ min. At 500 VDC

Industrial packaging

Yes

RoHS-compliant

Yes

Type

13000 Serie

Documents & Downloads

Datasheet

Datasheet 3728941 APEM 13445A-4GX768 13000 Serie Toggle switch, Main switch, Switch, On/Off switch latch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3728941 APEM 13445A-4GX768 13000 Serie Toggle switch, Main switch, Switch, On/Off switch latch 1 pc(s)

Description

The 13445A-4GX768 panel switch has a double design for versatile control, a simple push-button operation and reliable performance for various electrical applications.

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
