APEM PHAP3302B PHAP3302B Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary 1 pc(s)

A small, black push button (microswitch) with four metal legs for use in electronic circuits.

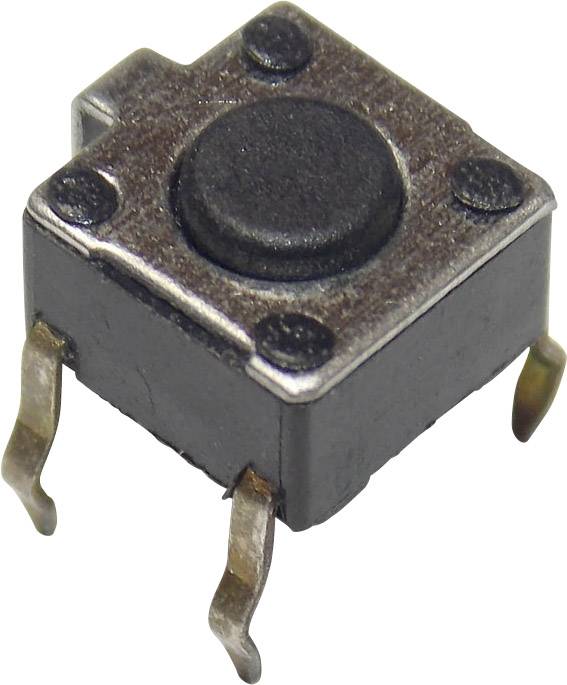

A small, square push button with four metal legs, typically mounted on printed circuit boards for electronic circuits.

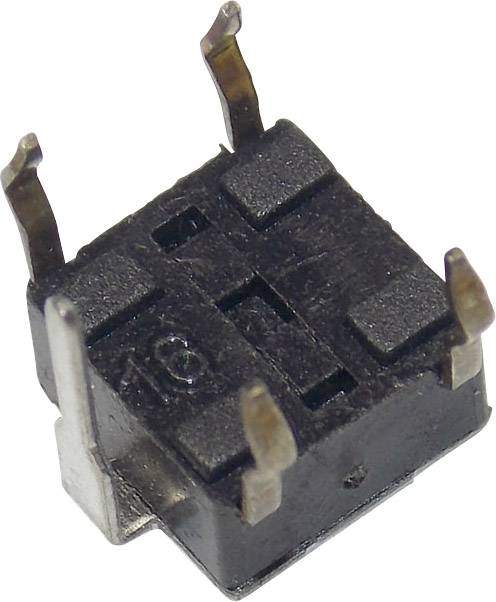

A black, rectangular electrical switch with four metal connection pins, used in electronic circuits.

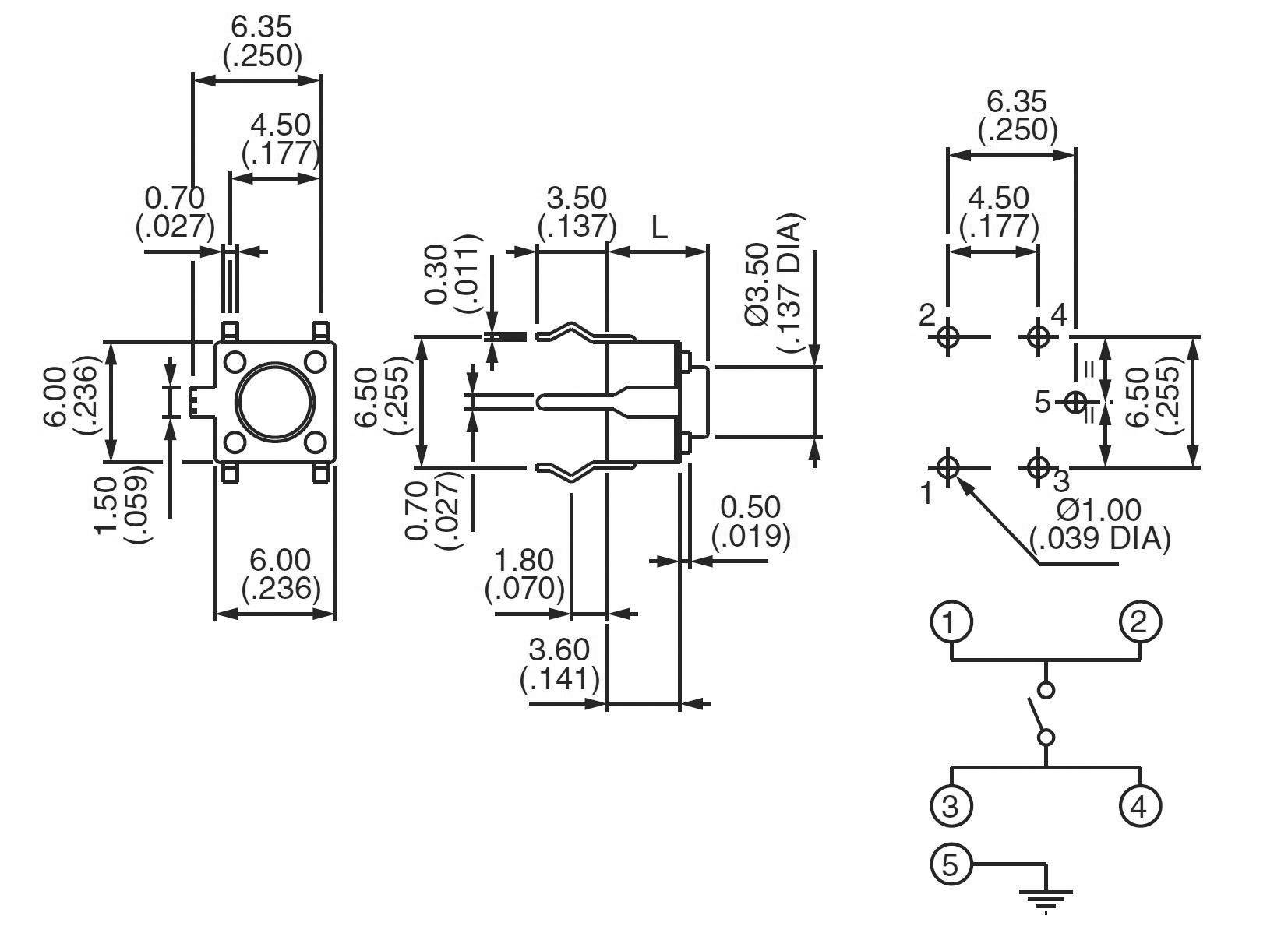

Technical drawing of a rectangular switch with dimensions in inches and millimetres, along with a circuit diagram.

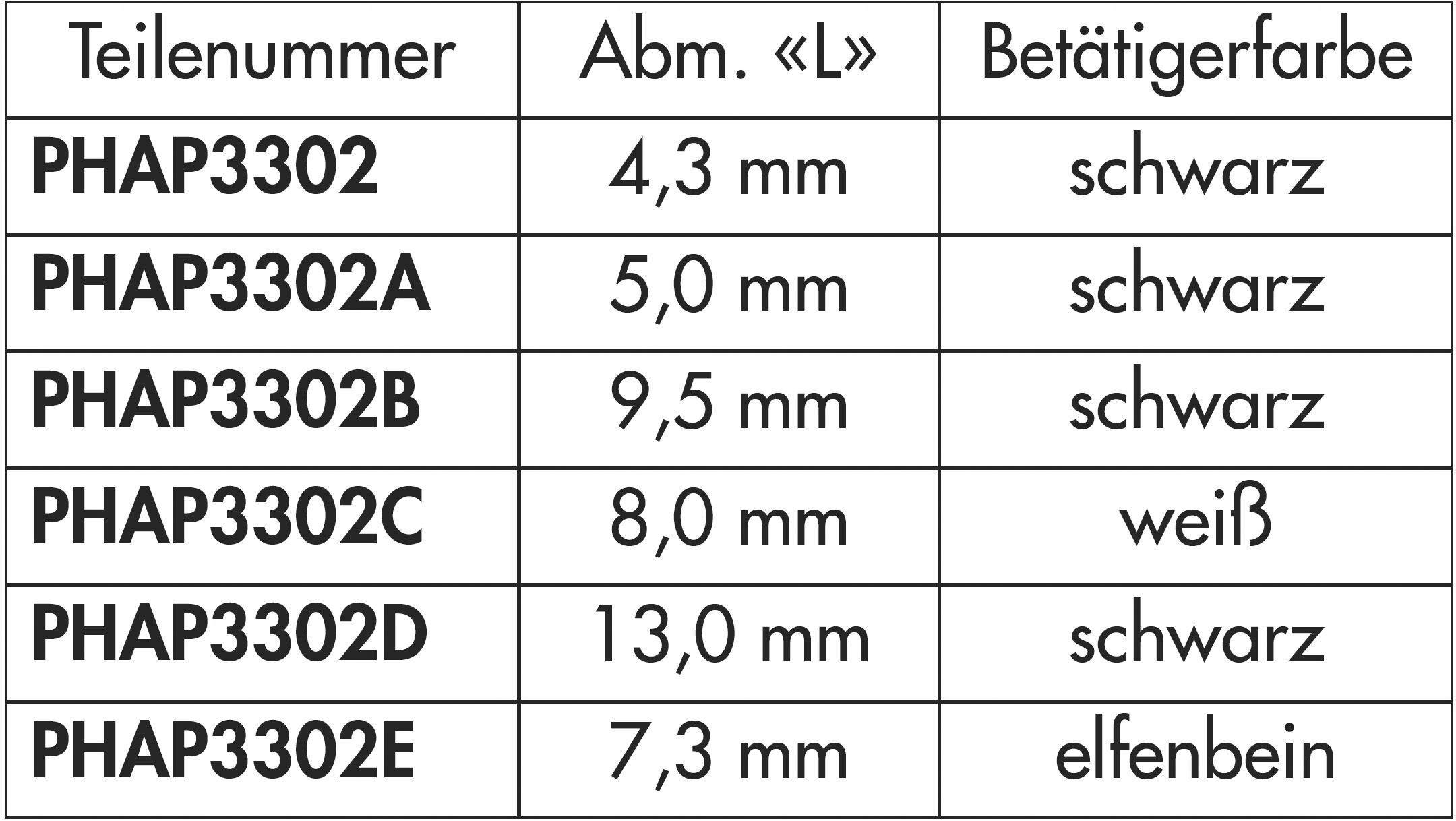

Table with Part Numbers and Actuator Colours. PHAP3302: 4.3 mm, black; PHAP3302A: 5.0 mm, black; PHAP3302B: 9.5 mm, black; PHAP3302C: 8.0 mm, white; PHAP3302D: 13.0 mm, black; PHAP3302E: 7.3 mm, ivory.
1/5
Image similar
Product type
Pushbutton
Lighting type
None
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
385 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 7
Total (€ 0.55 / piece)
€ 0.55
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Vibrations 10 - 500 Hz/10 g
Product type

Pushbutton

Switch/button features

Protruding

Functions

momentary

Type

Pushbutton

Lighting type

None

Switch position

1 x Off/(On)

Contact type

1 maker

Connection

Print

Switching voltage

12 V DC

Switching current (max.)

0.05 A

Dielectric strength


250 V/AC/60 (4)

Min. temperature

-20 °C

Max. temperature

+70 °C

Length

9.5 mm

Electrical lifespan

100000 cycles

Actuating force

1.6 N

Content

1 pc(s)

Insulation resistance


100 mΩ

Front panel cut-out

6 x 6 mm

Board thickness (max.)

13 mm

Type

PHAP3302B

Temperature range

-20 - +70 °C

Documents & Downloads

Datasheet

Datasheet 700404 APEM PHAP3302B PHAP3302B Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 700404 APEM PHAP3302B PHAP3302B Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary 1 pc(s)

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
