Name: APEM PHAP3373 PHAP3373 Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary 1 pc(s)
Brand: APEM
SKU: 700217
Availability: InStock

Close-up of a small electronic component, a micro-switch, with a metallic casing and two connector pins.

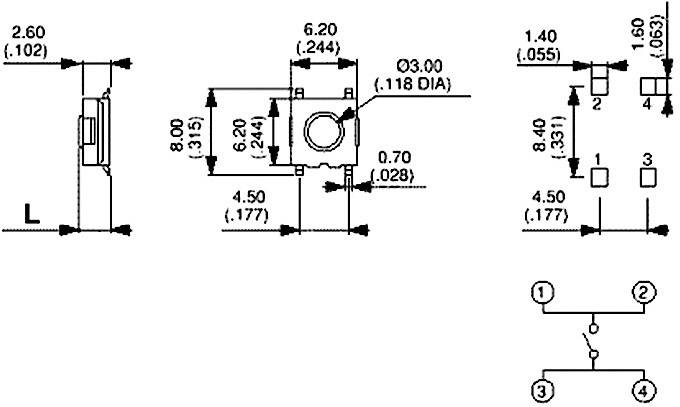

Technical drawing of an electrical switch with dimensions: 8.00 x 8.40 mm. Connection diagram bottom right shows contact connections.

1/2

Product type

Pushbutton

Lighting type

None

Switch position

1 x Off/(On)

Contact type

1 maker

Connection

SMD

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

634 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.80 / piece)

€ 1.80

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Vibrations 10 - 500 Hz/10 g

Product type: Pushbutton

Switch/button features: Planar

Functions: momentary

Type: Pushbutton

Lighting type: None

Switch position: 1 x Off/(On)

Contact type: 1 maker

Connection: SMD

Switching voltage: 12 V DC

Switching current (max.): 0.05 A

Dielectric strength: 250 V/AC/60 s

Min. temperature: -20 °C

Max. temperature: +70 °C

Height: 2.9 mm

Electrical lifespan: 75000 cycles

Actuating force: 1.6 N

Content: 1 pc(s)

Insulation resistance: min 100 MΩ

Contact resistance: Max. 100 mΩ

Front panel cut-out: 6.2 x 6.2 mm

Board thickness (max.): 2.6 mm

Type: PHAP3373

Connection: SMD connections

Temperature range: -20 - +70 °C

Documents & Downloads

Datasheet

Datasheet 700217 APEM PHAP3373 PHAP3373 Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 700217 APEM PHAP3373 PHAP3373 Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary 1 pc(s)

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
