Name: ATEN CS1644A 4 ports KVM changeover switch DVI USB 2560 x 1600 Pixel
Brand: ATEN
SKU: 989216
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A black KVM switch with multiple buttons and indicators on the front panel, suitable for managing server connections.

Black DVD player with buttons on the front panel and sockets for headphones and USB on the right-hand side.

Device with multiple DVI, USB, and audio ports for KVM switching. Enables control of multiple computers from a single console.

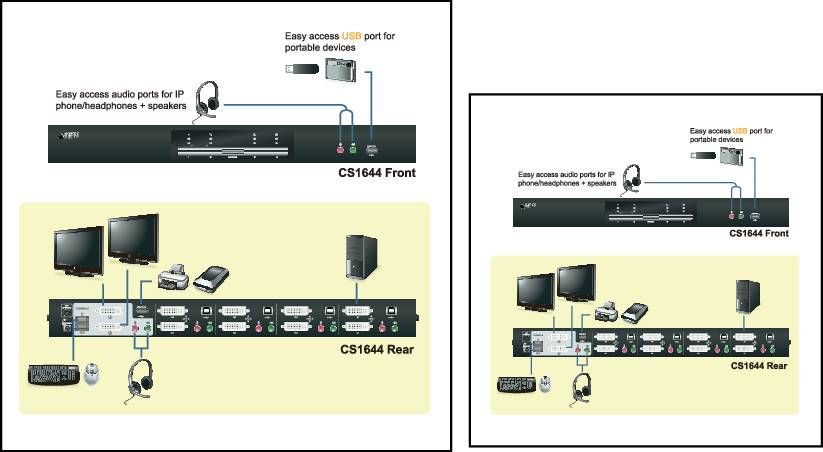

Diagram of a KVM switch 'CS1644', showing front and rear views with connections for monitors, audio, USB and other peripheral devices.

'KVM switch with multiple DVI, USB and audio ports, enabling the connection and control of several computers via a single console.'

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 515.00 / piece)

€ 679.00

-24 %

€ 515.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ATEN CS1644A KVM changeover switch

A two screen USB console controls four two-screen computer and two more USB-devices
Full bass range for an extraordinary sound experience on 2.1-surround sound systems
Independent switching between KVM, USB and audio signals
Outstanding image quality up to 2560 x 1600 pixels

Technical specifications

Product type: KVM changeover switch

No. of switchable PCs: 4

Video via: DVI

Video resolution: 2560 x 1600 Pixel

Controller: USB

Audio headphones: Yes

Audio microphone: Yes

No. of USB 2.0 ports: 2 x

Stackable: No

Rack mount option: No

Switch function: Hot key

Power supply (LOV): via PSU

Factory colour: Black

Weight: 2.3 kg

Length: 44 mm

Width: 430 mm

Height: 152 mm

Port: 4 ports

Dim: (L x W x H) 44 x 430 x 152 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 989216 ATEN CS1644A 4 ports KVM changeover switch DVI USB 2560 x 1600 Pixel

User & Safety Instructions

User & Safety Instructions 989216 ATEN CS1644A 4 ports KVM changeover switch DVI USB 2560 x 1600 Pixel

Conformity certificate

Conformity certificate 989216 ATEN CS1644A 4 ports KVM changeover switch DVI USB 2560 x 1600 Pixel

Description

The DVI KVMP switch for two shield systems and USB 2.0 CS 1644 proposes a completely new direction in terms of KVM functionality by a 4-port KVM switch with a 2-Port USB 2.0 Hub. At the same time, it has connection possibilities for two DVI monitors and is thereby the ideal tool for all graphic designers, bankers and financial advisors, for medical applications and computer games. The CS1644 also supports a full 2.1 channel sound transmission and thus allow for home theater system completely new dimensions in terms of video playback.
As a KVM switch allows it, four computer with two screens from a single USB-console (USB keyboard, monitor and mouse). As a USB hub, it enables the with the unit computers the delayed access to connected USB devices.

This text is machine translated.

Features

Built-in 2-Port USB 2.0 Hub
Fully compatible with the USB 2.0 specifications
Supports digital DVI and analogue monitors - is fully compatible with the DVI specifications and in addition HDCP-compatible
Outstanding image quality - 2560x1600 (DVI Dual Link); 1920x1200 (DVI single link)
Supports the common widescreen resolutions computer selection via front-side port selection buttons and hotkeys
Multi-platform compatible with Windows, Linux, Mac, Sun
Console with mouse port emulation and bypass function supports most mouse driver and multifunction mice
Video Dyna Sync™ saves the EDID (Extended Display Identification Data) of the Konsolmonitore, to get the best possible image resolution to ensure
Keyboard Emulation for error-free booting
Supports and emulates Sun/Mac-Tastaturen
Automatic port switch for monitoring of the connected computer.
Firmware update possible.

Scope of delivery

DVI-two screen KVMP™ switch for USB 2.0
DVI-D Dual Link KVM cable with USB plugs
KVM cable with USB and DVI-D connectors
KVM cable with DVI-I Connectors
Converter from USB to PS/2
Cable for firmware update
Power supply unit
User manual.
