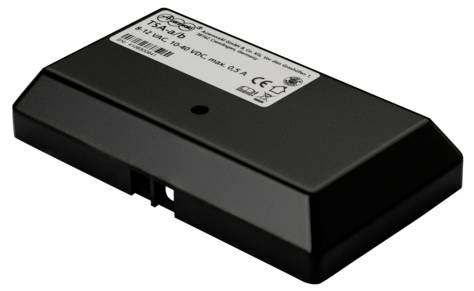

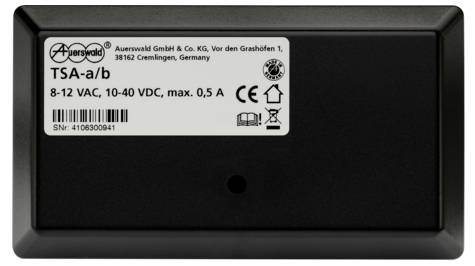

Auerswald TSA-a/b Door intercom adapter
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 209.99 / piece)
€ 209.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Auerswald TSA-a/b intercom adapter
- Power supply via bell transformer
- Separate volume settings for both free way, impedance can be set
- Built in power amplifier for intercom set without amplifier
Technical specifications
- Product type
Door intercom adapter
- Dim
(W x H x D) 142 x 81 x 27 mm
- Factory colour
Grey
- Width
142 mm
- Height
81 mm
- Depth
27 mm
- Connection type
Telephone
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1497127 Auerswald TSA-a/b Door intercom adapter
Datasheet 1497127 Auerswald TSA-a/b Door intercom adapter
Datasheet 1497127 Auerswald TSA-a/b Door intercom adapter
Datasheet 1497127 Auerswald TSA-a/b Door intercom adapter
User & Safety Instructions
User & Safety Instructions 1497127 Auerswald TSA-a/b Door intercom adapter
Description
Adapter for connecting 4-wire or FTZ-INTERCOMS to a a/b-Port of ICT systems.
The conversion of the telephony to IP, often the purchase of a new telephone system. These modern ICT systems are state of the art and offers plenty of modern features, but a connection for the existing turstationen will be in vain.
For this reason, the auerswald the solution:
With the intercom adapter TSA-a/b can be intercoms with an older 4-wire interface or with a 2-wire connection to FTZ 123 D 12-0, which may be made of structural reasons, do not simply exchanged, on the analog port of a modern, VoIP-enabled telephone system can be connected.
The existing door station, for example Siedle, Ritto, Grothe, Telecom or auerswald can remain. The TSA-a/b was not only for auerswald ICT systems, it is suitable for operation on all standard telephone systems with analogue subscribers ports.
This text is machine translated.
The conversion of the telephony to IP, often the purchase of a new telephone system. These modern ICT systems are state of the art and offers plenty of modern features, but a connection for the existing turstationen will be in vain.
For this reason, the auerswald the solution:
With the intercom adapter TSA-a/b can be intercoms with an older 4-wire interface or with a 2-wire connection to FTZ 123 D 12-0, which may be made of structural reasons, do not simply exchanged, on the analog port of a modern, VoIP-enabled telephone system can be connected.
The existing door station, for example Siedle, Ritto, Grothe, Telecom or auerswald can remain. The TSA-a/b was not only for auerswald ICT systems, it is suitable for operation on all standard telephone systems with analogue subscribers ports.
This text is machine translated.
Features
- Simple connection of older (existing) Door-to an analogue subscriber port of a modern telephone system
- Implementation of 2-wire interface (according to FTZ 123 D 12-0) and 4-wire interface on a/b
- Additional switching possibilities for example: Second bell or lighting by optional Auerswald a/b switching modules
- Supply Connection: bell transformer, 8-12 V AC or 12-40 V DC, max. 0.5 A
- System connection: a/b port of a telephone system
- Turfreisprechanschluss: 4-wire system or interface to FTZ 123 D 12-0 (e.g. by Siedle, Ritto, Grothe, telecom, auerswald), power supply 9/12 V DC, 200 mA (switchable)
Scope of delivery
- Intercom adapter
- User manual
