Name: AXAGON ADE-TXPD Network adapter USB C® (USB 3.2 1st gen), RJ45, USB® C Power Delivery
Brand: AXAGON
SKU: 3735036
Availability: InStock

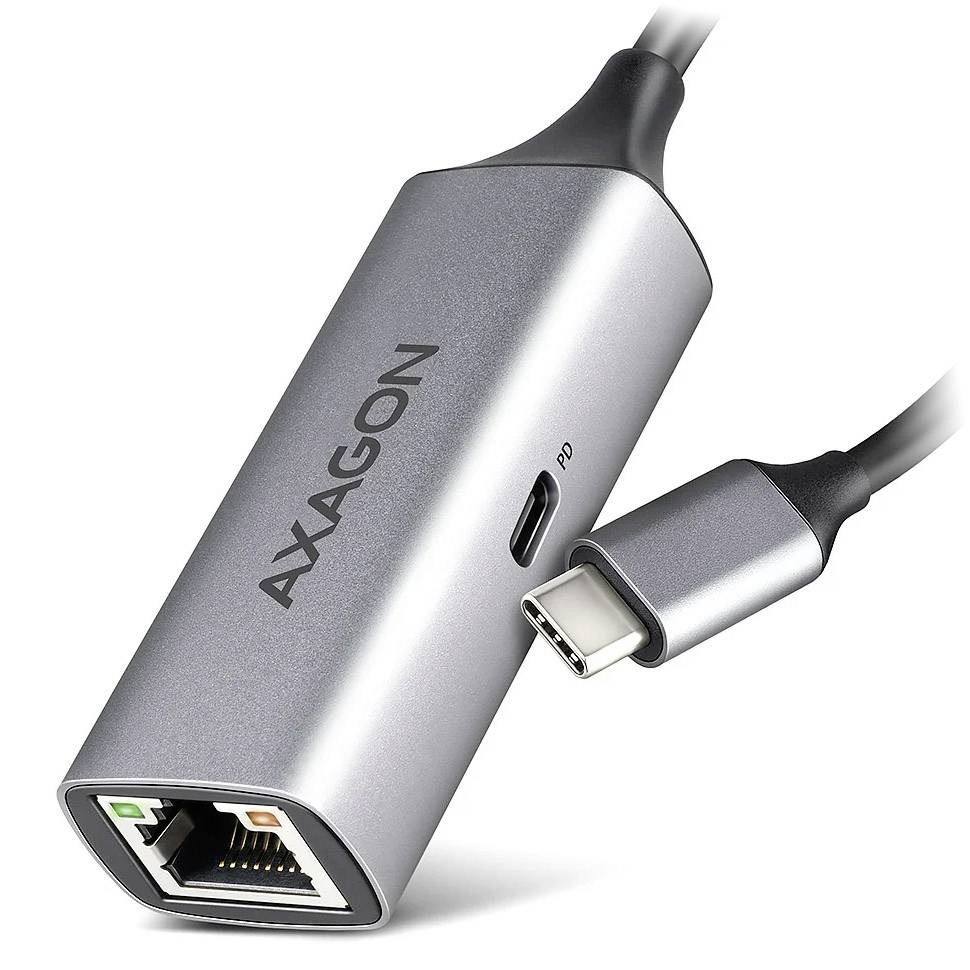

AXAGON USB-C adapter with one USB-C port and one Ethernet port, shown with connected USB-C cable.

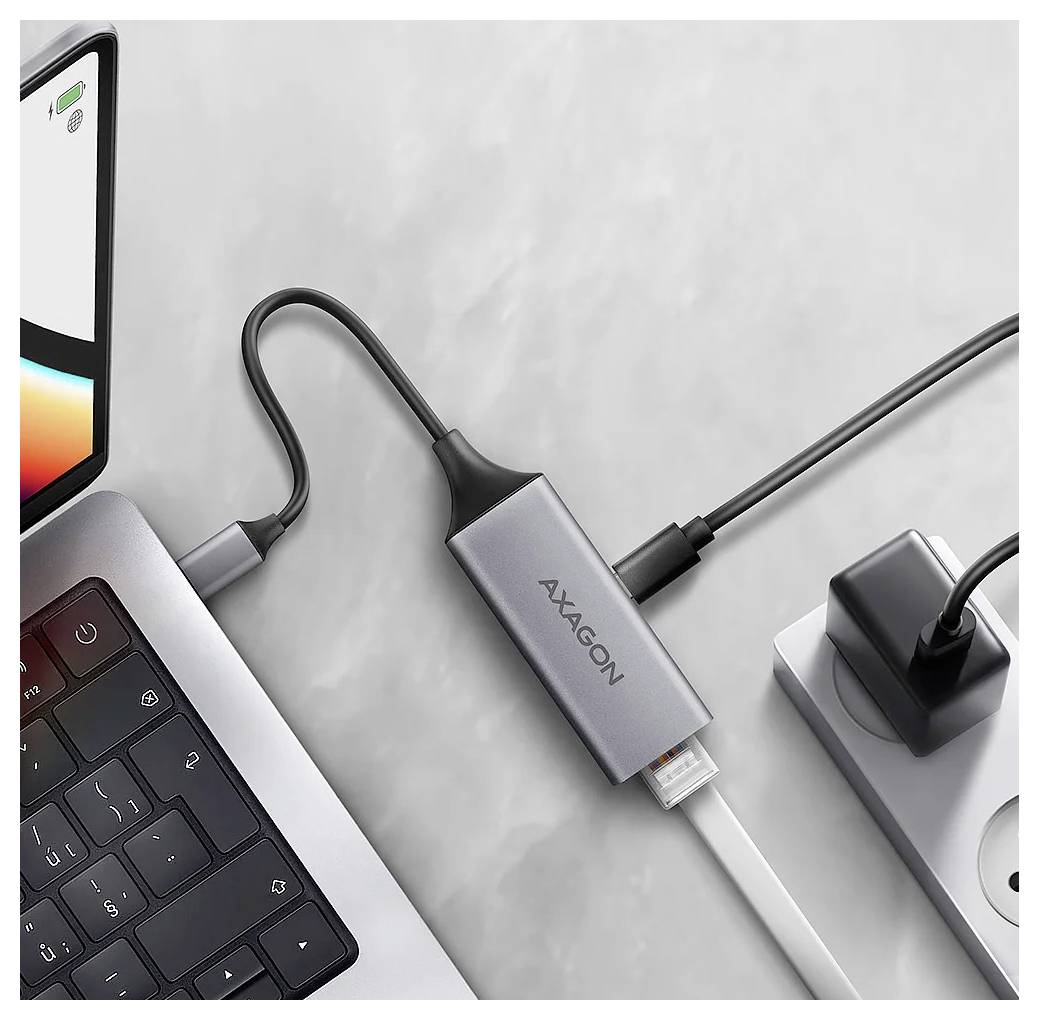

A laptop connected to an Ethernet adapter, which is plugged into a power strip. A phone is visible, charging via a cable.

A laptop connected to an AXAGON USB-C hub with multiple cables and a power adapter on a light gray surface.

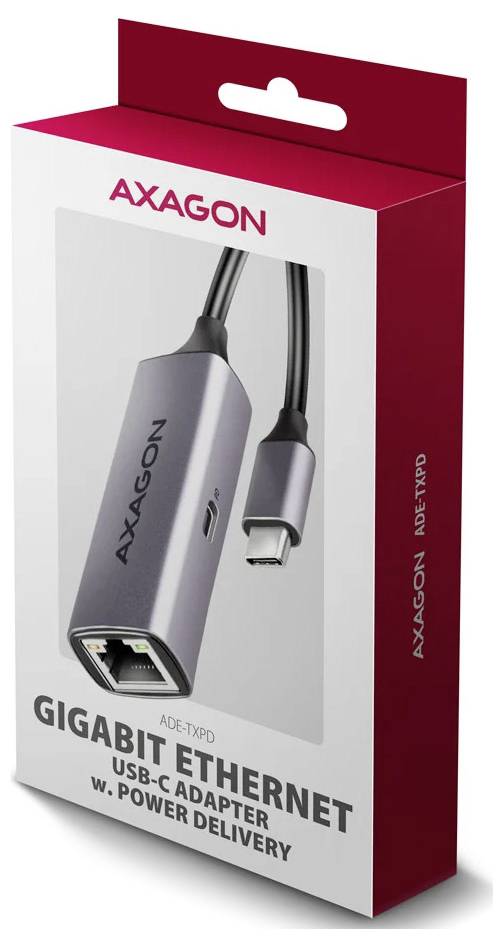

'AXAGON Gigabit Ethernet USB-C Adapter with Power Delivery' packaging shows the adapter with a USB-C connector and Ethernet port.

AXAGON Gigabit Ethernet USB-C adapter package with Power Delivery, showing the adapter and USB-C cable on the box front.

AXAGON USB-C hub connected to a laptop, with multiple cables and a power adapter on a desk.

AXAGON Gigabit Ethernet USB-C adapter box with power delivery, showing the adapter and USB-C cable on the package.

AXAGON Gigabit Ethernet USB-C adapter box with power delivery, showing a USB-C to Ethernet adapter on the front.

1/8

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 24.99 / piece)

€ 24.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

AXAGON ADE-TXPD Gigabit Ethernet Adapter, USB-C - Titanium gray

Ethernet adapter from AXAGON
USB-C to Gigabit Ethernet
Made of aluminium
Simple and compact
With cable extension
Compatible with Nintendo switch

Technical specifications

Dimensions: 76 x 24 x 16 mm (W x H x D)
Weight: 28 g (including cable and adapter)
Input: USB 5 Gbps (USB 3.2 Gen 1 / USB 3.0); Backward compatible with USB 480 Mbps (USB 2.0) and USB 1.1; compatible with Thunderbolt 3 and 4; connected to computer, Nintendo switch, tablet or phone via USB-C connector or connected adapter via USB-A connector
Output: Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection; Supported transfer speeds of the Ethernet interface: 10/100/1000 MB/s; Supported specifications: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
ASIX AX88179A chipset
Support of IPv4/IPv6 packet Checksum Offload Engine (COE), TCP Large Send Offload V1 and V2, IEEE 802.1Q VLAN tagging, IEEE 802.3az EEE (Energy Efficient Ethernet), IEEE 1588/802.1AS timestamp, Jumbo frame, Auto MDI/MDIX
Full plug-and-play and hot-plug support
Support of Wake-on-LAN function in different modes
Advanced Power management functions
Two LEDs to display network activity and connection to the network

Product type: Network adapter

Interfaces: USB C® (USB 3.2 1st gen)
RJ45
USB® C Power Delivery

No. of Gigabit LANs: 1 x

No. of USB 3.0 ports: 2 x

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3735036 AXAGON ADE-TXPD Network adapter USB C® (USB 3.2 1st gen), RJ45, USB® C Power Delivery

Description

AXAGON ADE-TXPD - USB-C to Gigabit Ethernet Adapter
The external network card AXAGON ADE-TXPD easily transforms your USB-C or USB-A 3.2 Gen 1 port into a Gigabit Ethernet port. With support for transfer speeds of 10/100/1000 Mbit/s, this adapter offers a reliable network connection for computers, tablets or telephones that do not have an RJ-45-connection. The ADE-TXPD complements missing network ports, adds an additional network card, or replaces non-functioning ports.

The AXAGON ADE-TXPD is easily compatible with the Nintendo switch and therefore provides a wired Internet connection, which works much more stable than a wireless connection. So you can play your online games freely without any jerks and delays. A power connection is still provided by the USB-C slot on the AXAGON ADE-TXPD.

This LAN adapter offers a wide range of features such as IPv4/IPv6 checksums, crossover detection and auto-correction, TCP large send offload, support for various Wake on LAN function modes, working with VLAN, and advanced Power management features. No external software is required.

The adapter's metal housing is made from aluminum and provides perfect mechanical protection and excellent heat dissipation. Thanks to its small size and light design it is an ideal accessory for laptops and other mobile devices.

This text is machine translated.
