B + B Thermo-Technik 0644 1401-09 Surface probe 0 up to +250 °C Sensor type K
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.13
€ 24.91
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
14 days return policy included
Highlights & Details
B + B Thermo-Technik 0644 1401-09 Surface probe 0 up to +250 °C Sensor type K
- Sensor type K
- 0 up to +250 °C
- Heating element connector
Technical specifications
- Product type
Surface probe
- Sensor type
K
- Pick-up time (details)
12 s
- Temperature reading range (min.)
0 °C
- Temperature reading range (max.)
+250 °C
- Dim
Manufacturer's standards (no certificate)
- Connector
Heating element connector
- Temperature reading range
0 up to +250 °C
- Length
1 m
- Temperature
(-50 to +200 ºC)
- Connection
Miniature thermocouple plug
Documents & Downloads
Datasheet
Datasheet 121453 B + B Thermo-Technik 0644 1401-09 Surface probe 0 up to +250 °C Sensor type K
User & Safety Instructions
User & Safety Instructions 121453 B + B Thermo-Technik 0644 1401-09 Surface probe 0 up to +250 °C Sensor type K
Description

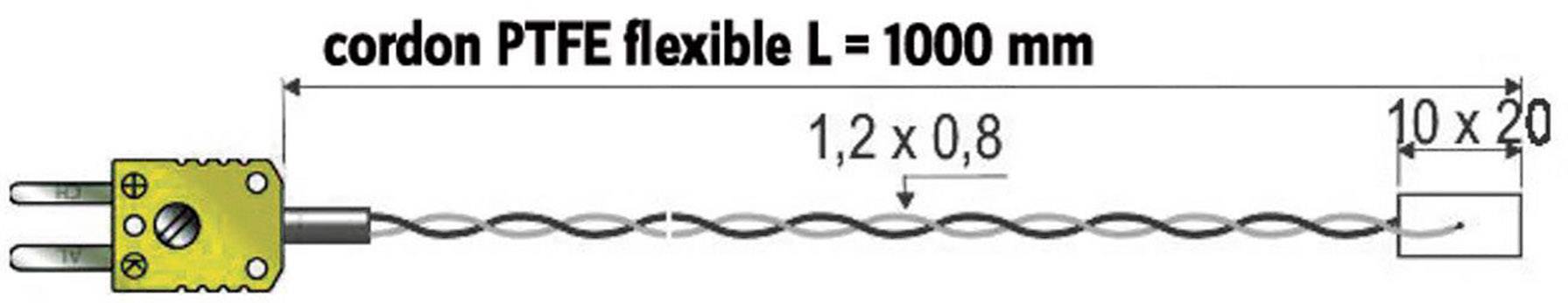

10 x 20 mm film sensors, self-adhesive with 1 m thermo-wire. Individual PTFE insulation on wires (stranded)
