Banana PI BananaPi-CM4 Banana Pi CM4 4 GB 4 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 4 Piece(s) available
Highlights & Details

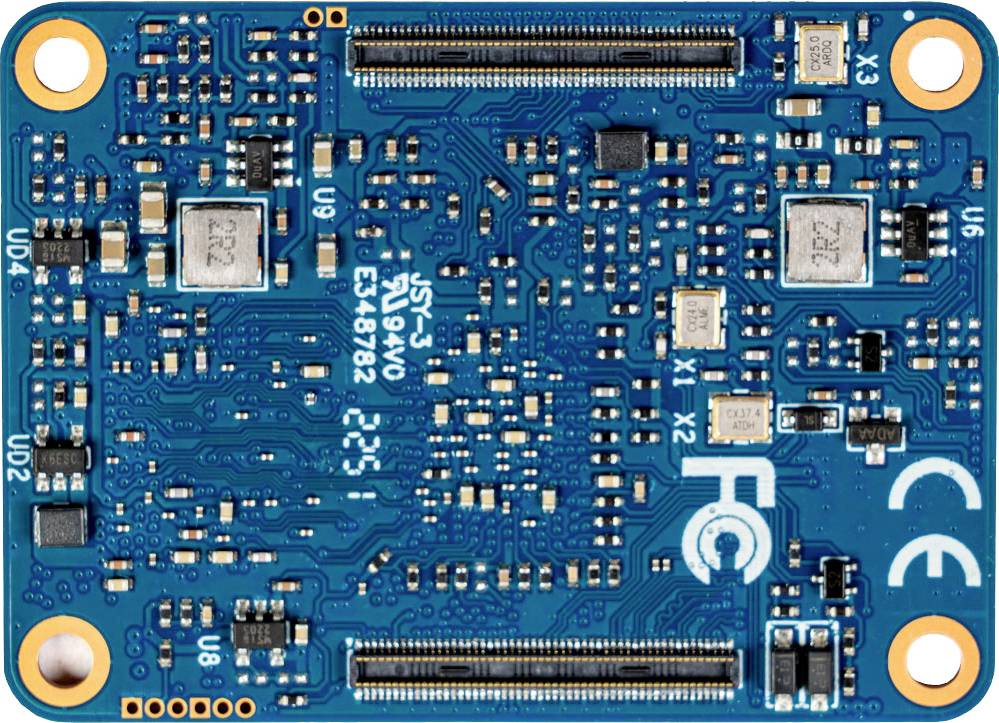

Banana PI compute module, CM4, 4GB-DDR4, 16GB flash, WiFi 5/6
- Raspberry Pi CM4 compatible PCB-to-board connector design4GB DDR4 main memory16GB flash memoryWiFi 5 / 6
- This text is machine translated.
Technical specifications
- Processor:Amlogic A311D4x ARM Cortex-A73 CPU cores2x ARM Cortex-A53 CPU coresNeural processor: NPU with 5.0 TOPSWiFi5/WiFi6 Wi-FiOn-Board Gigabit Ethernet1x PCIe extension interface1x HDMI1x CSI1x DSIRaspberry Pi CM4 compatible PCB-to-board connector designUSB boost connector26-PIN GPIO
- Product type
SBC
- Type
Banana Pi CM4
- SoC
Amlogic A311D
- Processor
ARM Cortex-A53
ARM Cortex-A73
- Processor cores (No.)
4 x
- GPU
Mali G52
4 GB
- Memory type
DDR4
- Memory capacity
16 GB
- Length
40 mm
- Width
55 mm
- Height
5 mm
Documents & Downloads
Datasheet
Datasheet 2798408 Banana PI BananaPi-CM4 Banana Pi CM4 4 GB 4 x
Description
Features
- The powerful CM4 module is very extensively equipped and therefore can be used very flexiblyThe high-performance CPU is supported by fast 4GB DDR-4 and 16GB Flash memoryIn addition to Gigabit Ethernet, Wi-Fi 5 and 6 are also availableTogether with the optionally available Banana PI I/O board you have a highly flexible, reliable basis for your projectIf you have developed so far for example on the basis of the Raspberry I/O Board, you can continue to use itThe Banana PI CM4 module is fully compatible with the Raspberry Pi pin layout in connector design and can also be used with Raspberry I/O boards
Scope of delivery
- Board
