Name: Bicker Elektronik BET-0612 Bench PSU (fixed voltage) 12 V DC 5 A 60 W
Brand: Bicker Elektronik
SKU: 1527315
Availability: InStock

Highlights & Details

Bicker Elektronik BET-0612 Bench PSU (fixed voltage) 12 V DC 5 A 60 W

N/A output voltage
For consumers up to max. 5 A
60 W Power
Pulsed
EN, UL 60950-1
Very high reliability
Meets Energy Efficiency Level VI

Technical specifications

Product type: Bench PSU (fixed voltage)

Used at: Mains socket

Max. output current: 5 A

Output current (max.) - rounded: 5 A

Output: 5.5/2.5 coaxial connector

Output voltage: 12 V DC

Input voltage: 115 V AC
230 V AC

No. of outputs: 1 x

Output current (high): 5 A

EuP Status: Step 2

Weight: 300 g

: 60 W

Type: Pulsed

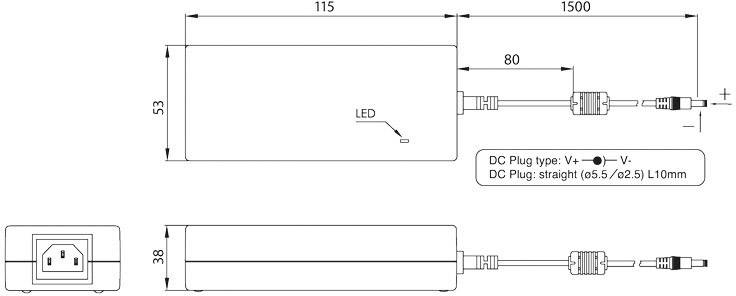

Width: 53 mm

Height: 38 mm

Length: 115 mm

Type: BET-0612

Documents & Downloads

Datasheet

Datasheet 1527315 Bicker Elektronik BET-0612 Bench PSU (fixed voltage) 12 V DC 5 A 60 W

User & Safety Instructions

User & Safety Instructions 1527315 Bicker Elektronik BET-0612 Bench PSU (fixed voltage) 12 V DC 5 A 60 W

Conformity certificate

Conformity certificate 1527315 Bicker Elektronik BET-0612 Bench PSU (fixed voltage) 12 V DC 5 A 60 W

Description

The desktop power supplies of the series BET -0600 provide professional devices in commercial and industrial power. The power supplies are robust and for a long operation with high-quality components, such as only 105°C - Premium electrolytic capacitors, equipped. They fulfill the current energy efficiency requirements with a very low no-load consumption and a high degree of efficiency. The completely closed plastic housing protects against dust and dirt.

This text is machine translated.

Features

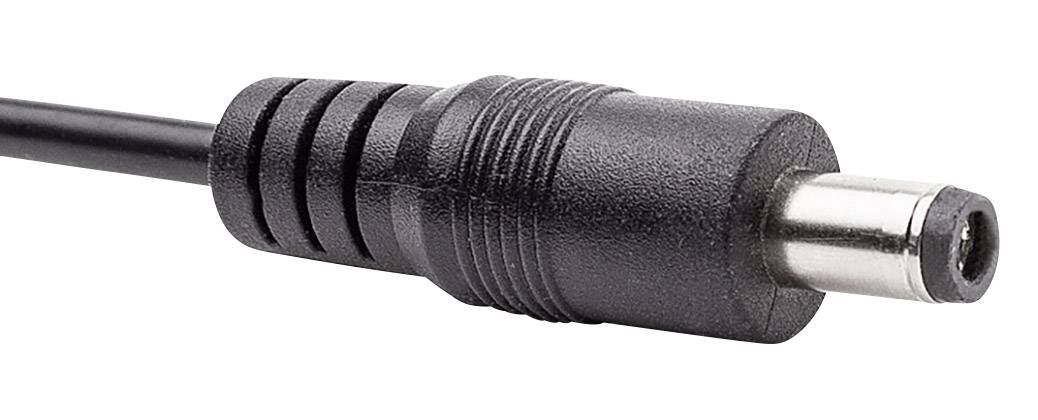

The tabletop power supply unit is on the output side via a 1.50 m long cable with ferrite and a DC-hollow plugs (5.5/2.5) L 10 mm. Please order if necessary a mains cable with cold device plug IEC-60320-C13 from the Conrad accessories with.

Hints

The protective earth conductor PE (primary) is connected with vout (secondary).

Optional power cable with cold device plug IEC-60320-C13 from the Conrad accessories separately.

Description

The desktop power supplies of the series BET -0600 provide professional devices in commercial and industrial power. The power supplies are robust and for a long operation with high-quality components, such as only 105°C - Premium electrolytic capacitors, equipped. They fulfill the current energy efficiency requirements with a very low no-load consumption and a high degree of efficiency. The completely closed plastic housing protects against dust and dirt.

This text is machine translated.

Features

The tabletop power supply unit is on the output side via a 1.50 m long cable with ferrite and a DC-hollow plugs (5.5/2.5) L 10 mm. Please order if necessary a mains cable with cold device plug IEC-60320-C13 from the Conrad accessories with.
