binder 09-0098-00-05 Sub-micro Circular Connector Nominal current (details): 3 A

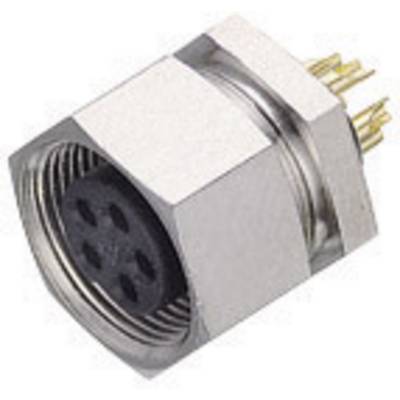

Round electrical connector with five socket locations and gold-plated contact pins, suitable for industrial applications.
binder 09-0098-00-05 Sub-micro Circular Connector Nominal current (details): 3 A-1
1/2
Image similar
Product type
Bullet connector
Connector type
Sleeve socket
Total no. of pins
5
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
11 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 13.99 / piece)
€ 13.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

binder 09-0098-00-05 Sub-micro Circular Connector Nominal current (details): 3 A

  • IP40

Technical specifications

Type

09-0098-00-05

Product type

Bullet connector

Connector type

Sleeve socket

Total no. of pins

5

Connection

Soldering

Content

1 pc(s)

Max. temperature

+125 °C

Nominal current

3 A

Min. temperature

-55 °C

Nominal current - rounded value

3 A

Seal

Screw cap

Nominal voltage

125 V

Contact material

Au (gold)

24

Connection angle

180°

Mounting hole diameter

M9 x 0.5

Manufacturer part #

09-0098-00-05

Number of pins

5

max. cross section

0.25 mm²

Cross-section range

0.25 mm² (max)

IP40

Series

711

Type

FLANGED PLUG

Nominal voltage (details)

125 V

Nominal current (details)

3 A

Contamination level

1

Cross section

0.25 mm²

Connection

Soldering

Temperature range

-40 - +85 °C
