Buy binder 09-0441-81-04 M18 Sensor / Actuator Connector, Screw Cap, Straight | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

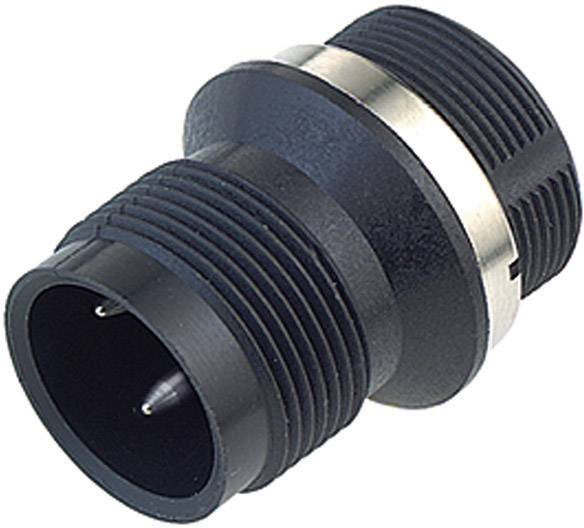

Black two-pin plug adapter with a silver ring.

Black two-pin plug adapter with a silver ring.

binder

Product type

Sensor/actuator built-in connector

Connector type

Plug, straight

Connector standard

Sensor connector

Connection side A

M18 plug, straight

Connection side B

Customisable

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 8.99 / piece)

€ 9.99

-10 %

€ 8.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: 09-0441-81-04

Product type: Sensor/actuator built-in connector

Connector type: Plug, straight

Connector standard: Sensor connector

Connection side A: M18 plug, straight

Connection side B: Customisable

No. of pins: 4

Nominal voltage: 250 V

Nominal current: 16 A

Nominal current - rounded value: 16 A

Connector cross-section (max.): 1.50 mm²

Connection: Soldering

Thread type connection side: M18

Contact material: CuZn

: IP67

Min. temperature: -25 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 09-0441-81-04

Content: 1 pc(s)

Type: Flange plug

Nominal voltage (details): 250 V

Nominal current (details): 16 A

Thread type: M18

Contamination level: 3

Connector cross section: 1.5 mm²

Pins: 4

Connection: Solder

Cable diameter (details): 3.5 mm

Temperature range: -25 - +85 °C

Documents & Downloads

Datasheet

Datasheet 734218 binder 09-0441-81-04 M18 Sensor / Actuator Connector, Screw Cap, Straight

User & Safety Instructions

User & Safety Instructions 734218 binder 09-0441-81-04 M18 Sensor / Actuator Connector, Screw Cap, Straight
