Buy binder 09 3418 82 03 Sensor/actuator built-in connector M8 Socket, right angle No. of pins (RJ): 3 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

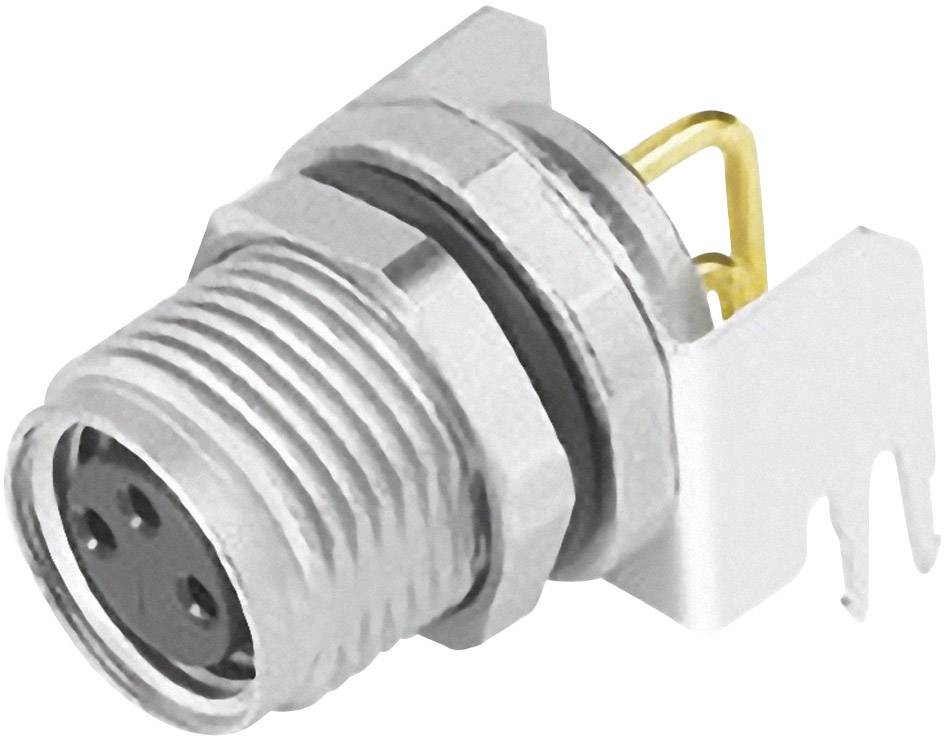

Round, silver connector part with multiple pins, suitable for electronic connections or device applications.

Round, silver connector part with multiple pins, suitable for electronic connections or device applications.

'Technical drawing of a connector. Dimensions and distances specified. Circuit board thickness: 1.6 mm. Various views.'

1/2

Image similar

binder

Product type

Sensor/actuator built-in connector

Connector type

Socket, right angle

Connector standard

Sensor connector

Connection side A

M8 socket, right angle

Connection side B

Customisable

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 20.99 / piece)

€ 24.99

-16 %

€ 20.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type: 09 3418 82 03

Product type: Sensor/actuator built-in connector

Connector type: Socket, right angle

Connector standard: Sensor connector

Connection side A: M8 socket, right angle

Connection side B: Customisable

No. of pins: 3

Nominal voltage: 60 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connection: Soldering

Thread type connection side: M8

Thread type (wiring and installation): M10

Contact material: CuSn

Contact surface: Gold plated

Sensor/actuator connectivity fittings: M10 front panel fitting

: IP67

Min. temperature: -40 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 09 3418 82 03

Content: 1 pc(s)
