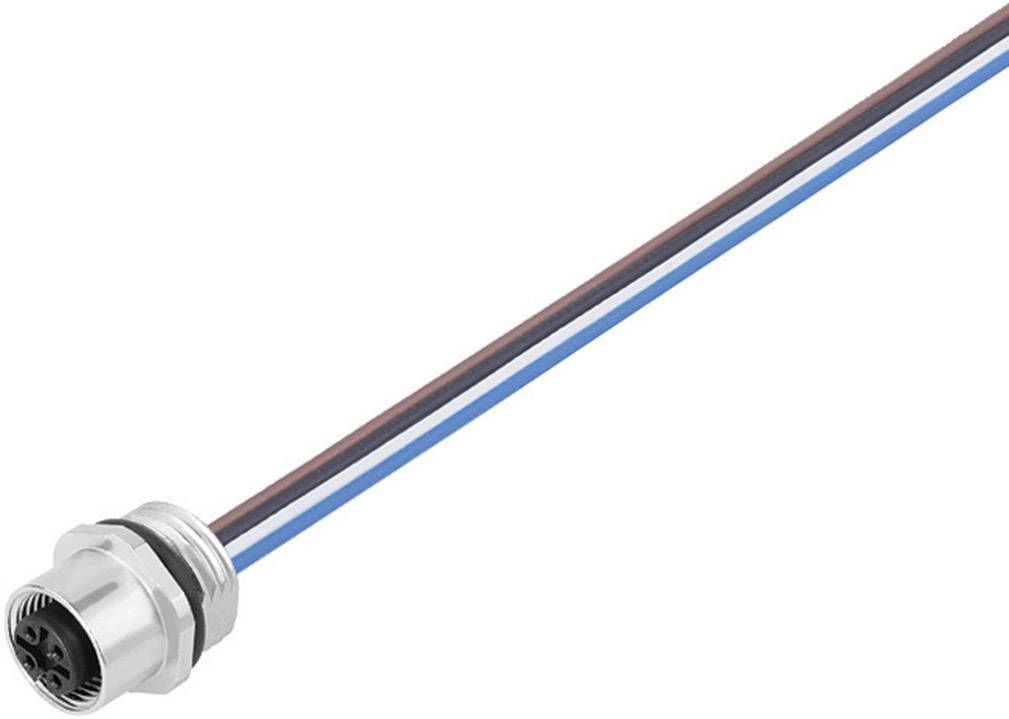

binder 09-3432-433-04
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Sleeve socket
Total no. of pins
4
Connection
Screws
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 16.80
-10 %
€ 15.12
plus VAT.
14-day return policy included
Technical specifications
- Type
09-3432-433-04
- Product type
Bullet connector
- Connector type
Sleeve socket
- Total no. of pins
4
- Connection
Screws
- Content
1 pc(s)
- Max. temperature
+80 °C
- Nominal current
1 A
- Min. temperature
-40 °C
- Nominal current - rounded value
1 A
- Nominal voltage
50 V
- Contact material
Au
18
- Connection angle
180°
- Manufacturer part #
09-3432-433-04
- Number of pins
4
- max. cross section
1.5 mm²
- Cross-section range
1.5 mm² (max)
IP67
- Series
763
Documents & Downloads
Datasheet
Datasheet 568192 binder 09-3432-433-04
User & Safety Instructions
User & Safety Instructions 568192 binder 09-3432-433-04
Description
Until now, it was not possible to connect power cable to assemble process M12 connector, because the terminals only up to 0.75 mm² were designed for and the cable outlet at 8 mm ended. The new versions, with wire-end sleeves to 1.5 mm² clamped and the cable diameter up to 10 mm sealed. Thus it is possible at 40°C ambient temperature 8 A per contact. To reduce the contact resistance and the loss of heat are the contacts with Au-Oberflache. The connectors are compatible with all 4- and 5-pin versions in a coding according to DIN EN 61076 - 2-101.
