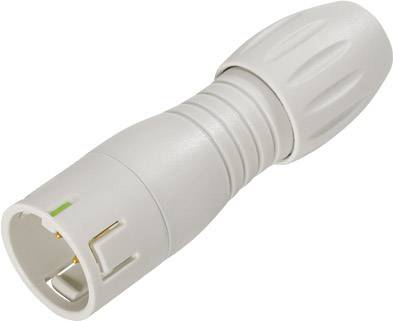

binder 99 9105 400 03 Micro DIN connector Plug, straight Total number of pins: 3 1 pc(s)
Product type
Micro DIN connector
Connector type
Plug, straight
Total no. of pins
3
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 7.49 / piece)
€ 9.99
-25 %
€ 7.49
incl. VAT
14-day return policy included
Technical specifications
- Type
99 9105 400 03
- Product type
Micro DIN connector
- Connector type
Plug, straight
- Total no. of pins
3
- Connection
Soldering
- Factory colour
Grey
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
7 A
- Min. temperature
-40 °C
- Nominal current - rounded value
7 A
- Leading contact (PE)
No
- Nominal voltage
250 V
- Contact material
Brass gold plated
- Cable Ø (max.)
6 mm
- Cable Ø up to
4 mm
- Case material
PA (UL 94 V-0)
20
- Connection angle
180°
- Manufacturer part #
99 9105 400 03
- Cable Ø range
4 - 6 mm
- Number of pins
3
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
IP67
