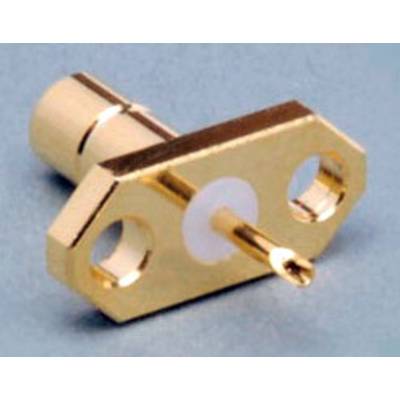

BKL Electronic 0411042 0411042 SMB connector Sleeve socket 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMB connector
Connector type
Sleeve socket
Impedance
50 Ω
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 2.34 / piece)
€
Highlights & Details
SMB standard
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Product type
SMB connector
- Connector type
Sleeve socket
- Impedance
50 Ω
- Connection
Soldering
- Content
1 pc(s)
- Max. frequency
4 GHz
- Case material
Brass gold plated
- Manufacturer part #
0411042
- Insulation resistance
500 MΩ
- Insulation material
PTFE
- RoHS-compliant
Yes
- Type
0411042
- Type
gold plated
- Frequency range
0 - 4 GHz
- Contact resistance
10 MΩ
- Cable diameter (details)
2.6 mm
Documents & Downloads
Datasheet
Datasheet 1460749 BKL Electronic 0411042 0411042 SMB connector Sleeve socket 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1460749 BKL Electronic 0411042 0411042 SMB connector Sleeve socket 50 Ω 1 pc(s)
Description
SMB stands for subminiature B and is used in frequency ranges up to 4 GHz. Unlike SMC plug connectors, this connector is only inserted and not screwed into place. It is used mainly for internal device connections.
