Name: BKL Electronic SIL socket (standard) No. of rows: 1 Pins per row: 16 10122217 1 pc(s) Tray
Brand: BKL Electronic
SKU: 2356428
Availability: InStock

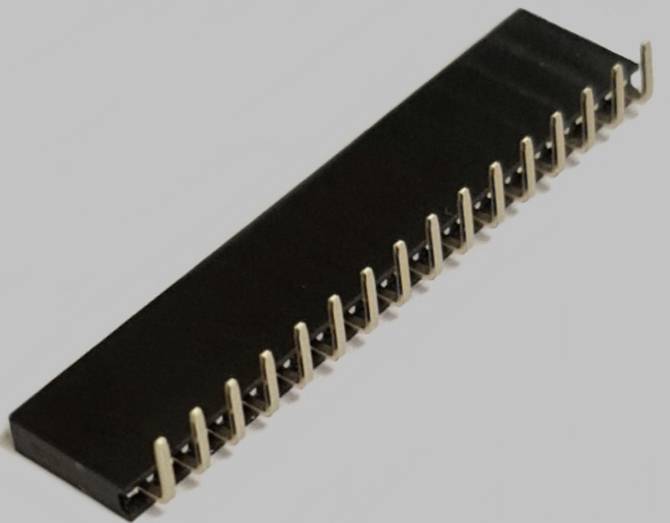

A black electronic integrated circuit (IC) with multiple metal pins protruding from one side. Used in electronic circuits.

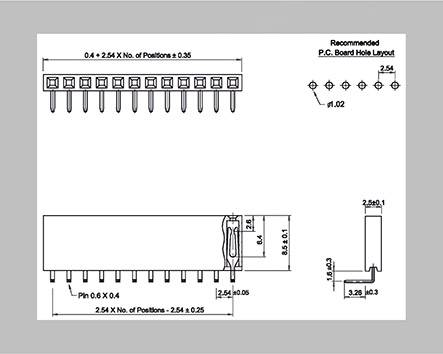

'Connector diagram with dimensions: Pin spacing 2.54 mm, height 6.35 mm. Proposed PCB hole layout with horizontal and vertical measurement.'

1/2

Packaging type

Tray

Connector type

Power strip, right angle

Product type

SIL socket (standard)

No. of rows

Total number of pins

Datasheet (PDF)

Fast track dispatch on Fri 16 Oct

439 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 3

Total (€ 1.49 / piece)

€ 4.47

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Female header single row 16-pin, angled, gold plated, grid 2.54mm, cannot be separated

Content 1 pc(s)
No. of rows 1
Pins per row 16

Our service for you

Technical specifications

Packaging type: Tray

Connector type: Power strip, right angle

Product type: SIL socket (standard)

No. of rows: 1

Pins per row: 16

Total number of pins: 16

CS: 2.54 mm

Connection: Print

Factory colour: Black

Pin shape: Rectangular

Nominal voltage: 600 V

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Brass

Case material: PBT

Pin length (PCB): 3.26 mm

Separable: No

Connector orientation: Parallel (to the PCB)

Manufacturer part #: 10122217

Socket depth: 2.50 mm

Content: 1 pc(s)

Height: 8.50 mm

RoHS-compliant: Yes

Max. temperature: +105 °C

Min. temperature: -40 °C

Type: 10122217
