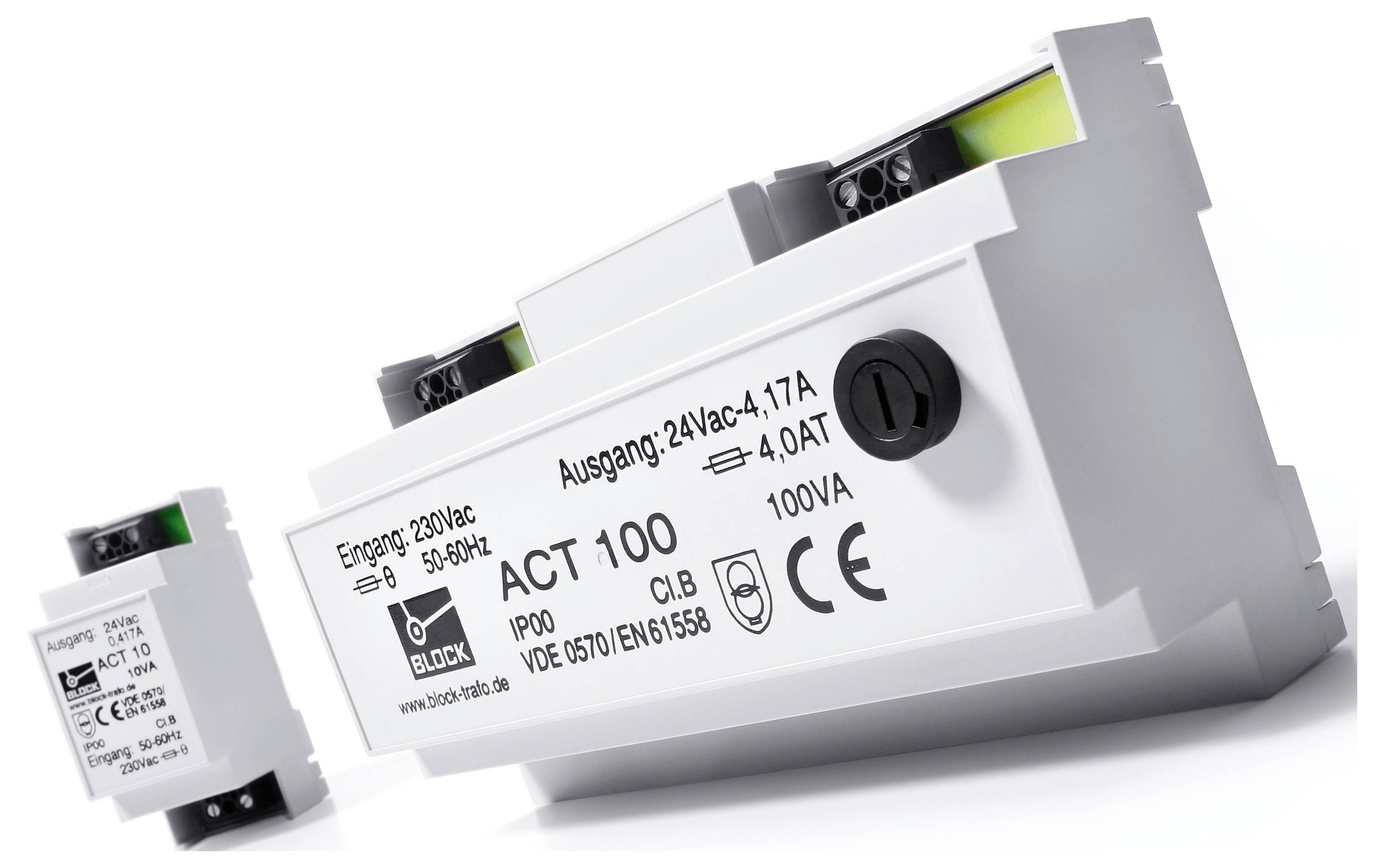

BLOCK ACT 10 Safety transformer 1 x 230 V AC 1 x 24 V AC 10 VA 0.416 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Highlights & Details
BLOCK ACT 10 Safety transformer 1 x 230 V AC 1 x 24 V AC 10 VA 0.416 A
- Short-circuit-proof
Technical specifications
- safety transformer to IEC 61558-2-6
- DIN 61558-2-6
- VDE 0570, part 2-6
- Product type
Safety transformer
- Output voltage
24 V AC
- Output current
0.416 A
- No. of outputs
1 x
- No. of inputs
1 x
10 VA
- Input voltage
230 V AC
- Connection
Screw terminal
- Width
94 mm
- Height
63 mm
- Length
35 mm
- Dim
(L x W x H) 35 x 94 x 63 mm
- Output voltage (number x voltage)
1 x 24 V AC
- Input voltage (number x voltage)
1 x 230 V AC
- Frequency
50 - 60 Hz
- Weight
0.36 kg
- Content
1 pc(s)
- Insulation class
B
- Mounting type
DIN rail
- RoHS-compliant
Yes
- Protection class
II
- Type
ACT 10
- Max. ambient temperature
+25 °C
- Output voltage
24 V
- Mounting type
Rail mounting
Documents & Downloads
Datasheet
Datasheet 1390705 BLOCK ACT 10 Safety transformer 1 x 230 V AC 1 x 24 V AC 10 VA 0.416 A
User & Safety Instructions
User & Safety Instructions 1390705 BLOCK ACT 10 Safety transformer 1 x 230 V AC 1 x 24 V AC 10 VA 0.416 A
Description
Short circuit-steady security transformer with encapsulated in resin and integrated security by a temperature protection in a stable plastic case.
Ranges of application: in installation small distributors or counter places etc.
Ranges of application: in installation small distributors or counter places etc.
