Name: elma TT IZ73 Universal mains transformer 1 x 230 V 1 x 2 V AC, 4 V AC, 6 V AC, 8 V AC, 10 V AC, 12 V AC, 14 V AC, 16 V A
Brand: elma TT
SKU: 514390
Availability: InStock

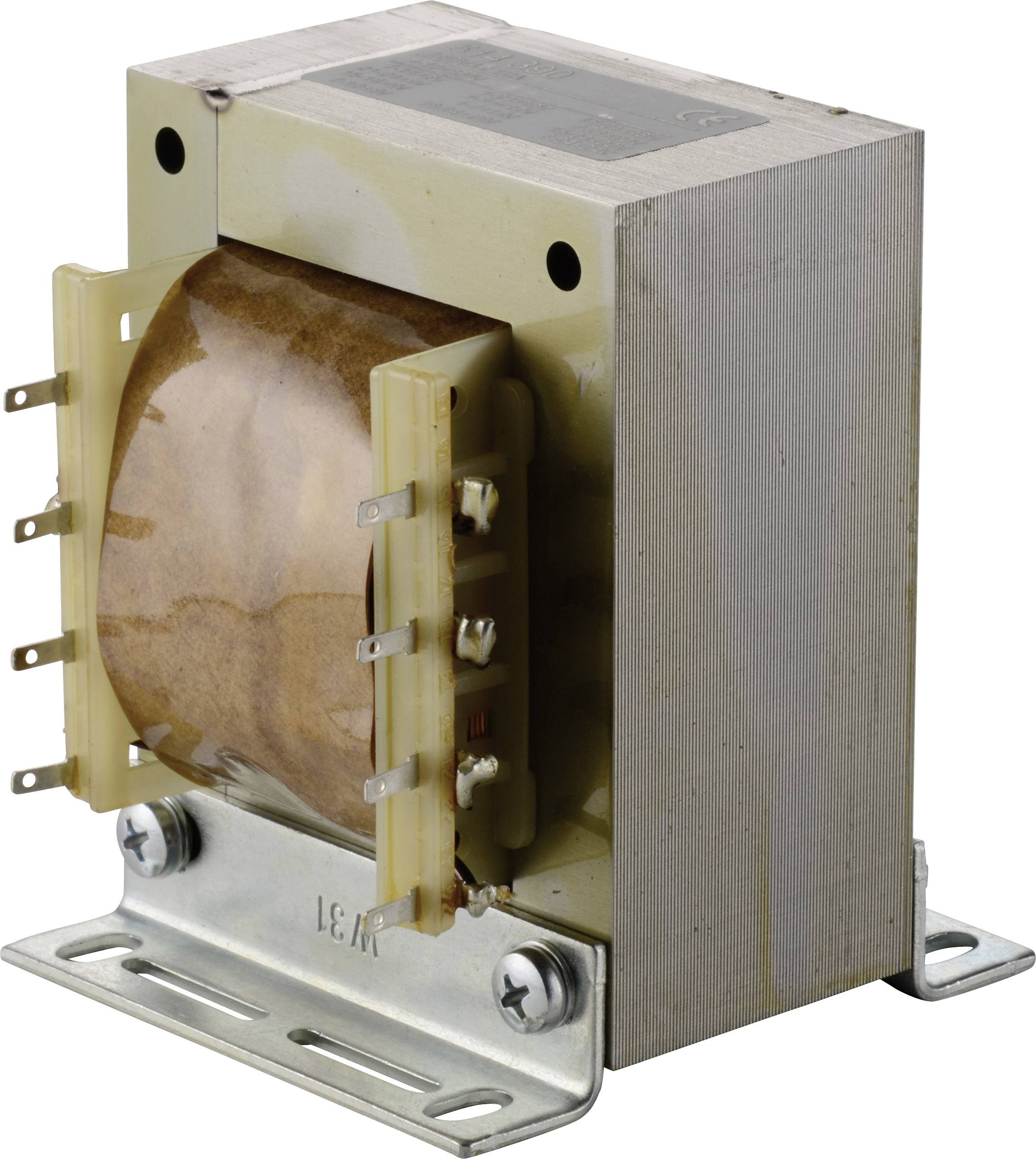

A brown transformer mounted on a metal bracket. It has several connection pins on the side.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

25 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

elma TT IZ73 Universal mains transformer 1 x 230 V 1 x 2 V AC, 4 V AC, 6 V AC, 8 V AC, 10 V AC, 12 V AC, 14 V AC, 16 V AC, 18 V AC, 20 V AC, 22 V AC, 24 V AC 180 VA 10 A

20.4 -198 VA

Technical specifications

Product type: Universal mains transformer

Output voltage: 2 V AC
4 V AC
6 V AC
8 V AC
10 V AC
12 V AC
14 V AC
16 V AC
18 V AC
20 V AC
22 V AC
24 V AC
Show more

Output current: 10 A

No. of outputs: 1 x

No. of inputs: 1 x

: 180 VA

Input voltage: 230 V

Connection: Soldering

Width: 80 mm

Height: 82 mm

Dim: (W x H x D) 80 x 82 x 98 mm

Output voltage (number x voltage): 1 x 2 V AC, 4 V AC, 6 V AC, 8 V AC, 10 V AC, 12 V AC, 14 V AC, 16 V AC, 18 V AC, 20 V AC, 22 V AC, 24 V AC

Input voltage (number x voltage): 1 x 230 V

Frequency: 50 - 60 Hz

Content: 1 pc(s)

Mounting type: L-piece

Protection class: I

Type: IZ73

Depth: 98 mm

: 180 VA

Output voltage: 2-4-6-8-10-12-14-16-18-20-22-24 V
