BLOCK RKD 15/2x18 Toroidal core transformer 2 x 115 V 2 x 18 V AC 15 VA 417 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 41.17 / piece)
€ 205.85
plus VAT.
Highlights & Details
Toroidal - safety / Isolation transformer
- 2 x 115 V
- 2 x 18 V AC
- 417 mA
- 15 VA
Technical specifications
- Product type
Toroidal core transformer
- Output voltage
18 V AC
- Output current
417 mA
- No. of outputs
2 x
- No. of inputs
2 x
15 VA
- Input voltage
115 V
- Standards
IEC 61558-2-4; 2-6, DIN EN 61558-2-4; 2-6, VDE 0570 Part 2-4; 2-6
- Connection
Open end cable
- Type
RKD 15/2x18
- Dim
(Ø x H) 62 mm x 30 mm
- Output voltage (number x voltage)
2 x 18 V AC
- Design type
Open
- Input voltage (number x voltage)
2 x 115 V
- Frequency
50 - 60 Hz
- Weight
0.32 kg
- Content
1 pc(s)
- Insulation class
A
- Height
30 mm
- (Ø)
62 mm
- Test voltage
4000 V
- RoHS-compliant
Yes
- Protection class
II (prepared)
- Max. ambient temperature
+40 °C
15 VA
- Output voltage
2 x 18 V
- Input voltage
2 x 115 V
- Fitting method
Central attachment by means of two flexible insulating discs, a metal plate and screw
- Primary voltage
2 x 115 V
Documents & Downloads
Datasheet
Datasheet 710549 BLOCK RKD 15/2x18 Toroidal core transformer 2 x 115 V 2 x 18 V AC 15 VA 417 mA
Datasheet 710549 BLOCK RKD 15/2x18 Toroidal core transformer 2 x 115 V 2 x 18 V AC 15 VA 417 mA
User & Safety Instructions
User & Safety Instructions 710549 BLOCK RKD 15/2x18 Toroidal core transformer 2 x 115 V 2 x 18 V AC 15 VA 417 mA
Conformity certificate
Conformity certificate 710549 BLOCK RKD 15/2x18 Toroidal core transformer 2 x 115 V 2 x 18 V AC 15 VA 417 mA
Certificate
Certificate 710549 BLOCK RKD 15/2x18 Toroidal core transformer 2 x 115 V 2 x 18 V AC 15 VA 417 mA
Description
Double voltage for series or parallel connection in input and output. Reinforced insulation between PRI and SEC. Very low magnetic field. High performance at low volume. Optimum Efficiency
Scope of delivery

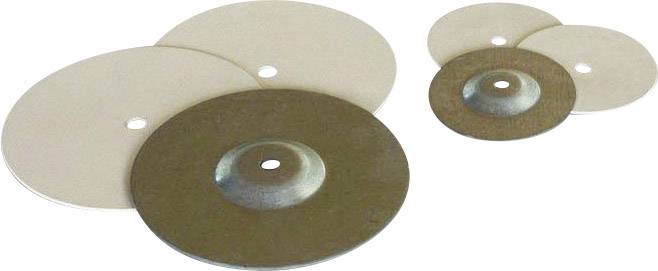

- Two flexible insulating disc, 1 metal plate and screw
