Name: Sedlbauer 825024 Toroidal core transformer 1 x 230 V 2 x 6 V AC 100 VA 8.33 A
Brand: Sedlbauer
SKU: 608929
Availability: InStock

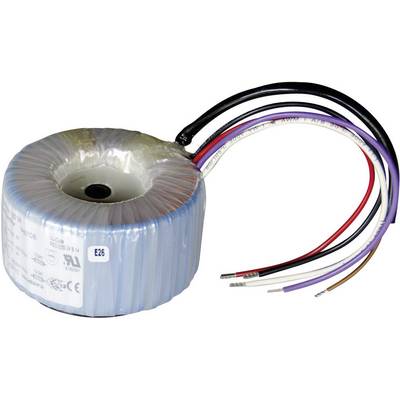

A ring core transformer with multiple coloured wires, typically used for voltage conversion in electrical appliances.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

15 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Sedlbauer 825024 Toroidal core transformer 1 x 230 V 2 x 6 V AC 100 VA 8.33 A

1 x 230 V
2 x 6 V AC
8.33 A
100 VA

Technical specifications

Product type: Toroidal core transformer

Output voltage: 6 V AC

Output current: 8.33 A

No. of outputs: 2 x

No. of inputs: 1 x

: 100 VA

Input voltage: 230 V

Standards: IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol

Connection: Open end cable

Type: 825024

Dim: (Ø x H) 90 mm x 55 mm

Output voltage (number x voltage): 2 x 6 V AC

Design type: Remaining hole casting (pressure-free mounting)

Input voltage (number x voltage): 1 x 230 V

Frequency: 50 - 60 Hz

Weight: 1.27 kg

Content: 1 pc(s)

Insulation class: B

Cable length: 20.00 cm

Height: 55 mm

(Ø): 90 mm

Test voltage: 4400 V

Protection class: II (prepared)

Max. ambient temperature: +60 °C

Variants(All information include VAT, plus shipping costs)

Input voltage

Output current

Output voltage

Power

Sedlbauer 825024 Toroidal core transformer 1 x 230 V 2 x 6 V AC 100 VA 8.33 A

Item no:608929

Fast track dispatch on Thu 29 Oct

15 Piece(s)Conrad Electronic

This article

230 V

8.33 A

6 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

Sedlbauer 825004 Toroidal core transformer 1 x 230 V 2 x 18 V AC 15 VA 0.42 A

Item no:609978

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

230 V

0.42 A

18 V AC

15 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

Sedlbauer 825013 Toroidal core transformer 1 x 230 V 2 x 9 V AC 50 VA 2.78 A

Item no:606873

Fast track dispatch on Thu 29 Oct

8 Piece(s)Conrad Electronic

230 V

2.78 A

9 V AC

50 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 59.99^*

Sedlbauer 825025 Toroidal core transformer 1 x 230 V 2 x 9 V AC 100 VA 5.56 A

Item no:609113

Fast track dispatch on Thu 29 Oct

13 Piece(s)Conrad Electronic

230 V

5.56 A

9 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

Sedlbauer 825026 Toroidal core transformer 1 x 230 V 2 x 12 V AC 100 VA 4.17 A

Item no:609267

Available soon

Conrad Electronic

230 V

4.17 A

12 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

Sedlbauer 825001 Toroidal core transformer 1 x 230 V 2 x 9 V AC 15 VA 0.84 A

Item no:609587

Unavailable

Conrad Electronic

230 V

0.84 A

9 V AC

15 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 46.99^*

Sedlbauer 825002 Toroidal core transformer 1 x 230 V 2 x 12 V AC 15 VA 0.63 A

Item no:609703

Unavailable

Conrad Electronic

230 V

0.63 A

12 V AC

15 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 46.99^*

Sedlbauer 825003 Toroidal core transformer 1 x 230 V 2 x 15 V AC 15 VA 0.50 A

Item no:609884

Unavailable

Conrad Electronic

230 V

0.50 A

15 V AC

15 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Sedlbauer 825007 Toroidal core transformer 1 x 230 V 2 x 9 V AC 30 VA 1.67 A

Item no:609966

Unavailable

Conrad Electronic

230 V

1.67 A

9 V AC

30 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 53.99^*

Sedlbauer 825008 Toroidal core transformer 1 x 230 V 2 x 12 V AC 30 VA 1.25 A

Item no:605250

Unavailable

Conrad Electronic

230 V

1.25 A

12 V AC

30 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 53.99^*

Documents & Downloads

Datasheet

Datasheet 608929 Sedlbauer 825024 Toroidal core transformer 1 x 230 V 2 x 6 V AC 100 VA 8.33 A

Certificate

Certificate 608929 Sedlbauer 825024 Toroidal core transformer 1 x 230 V 2 x 6 V AC 100 VA 8.33 A

Description

Galvanic separation between the primary and secondary windings. Very low magnetic field Toroidal transformer cast on mounting plate with central through hole. All connections with wires running and with wire-end sleeves for installation. Built-in temperature switch (auto-resetting).

This text is machine translated.
