Buy BLOCK ST 63/23/23 Control transformer, Isolation transformer, Safety transformer 1 x 219 V AC, 230 V AC, 241 V AC 1 x 23

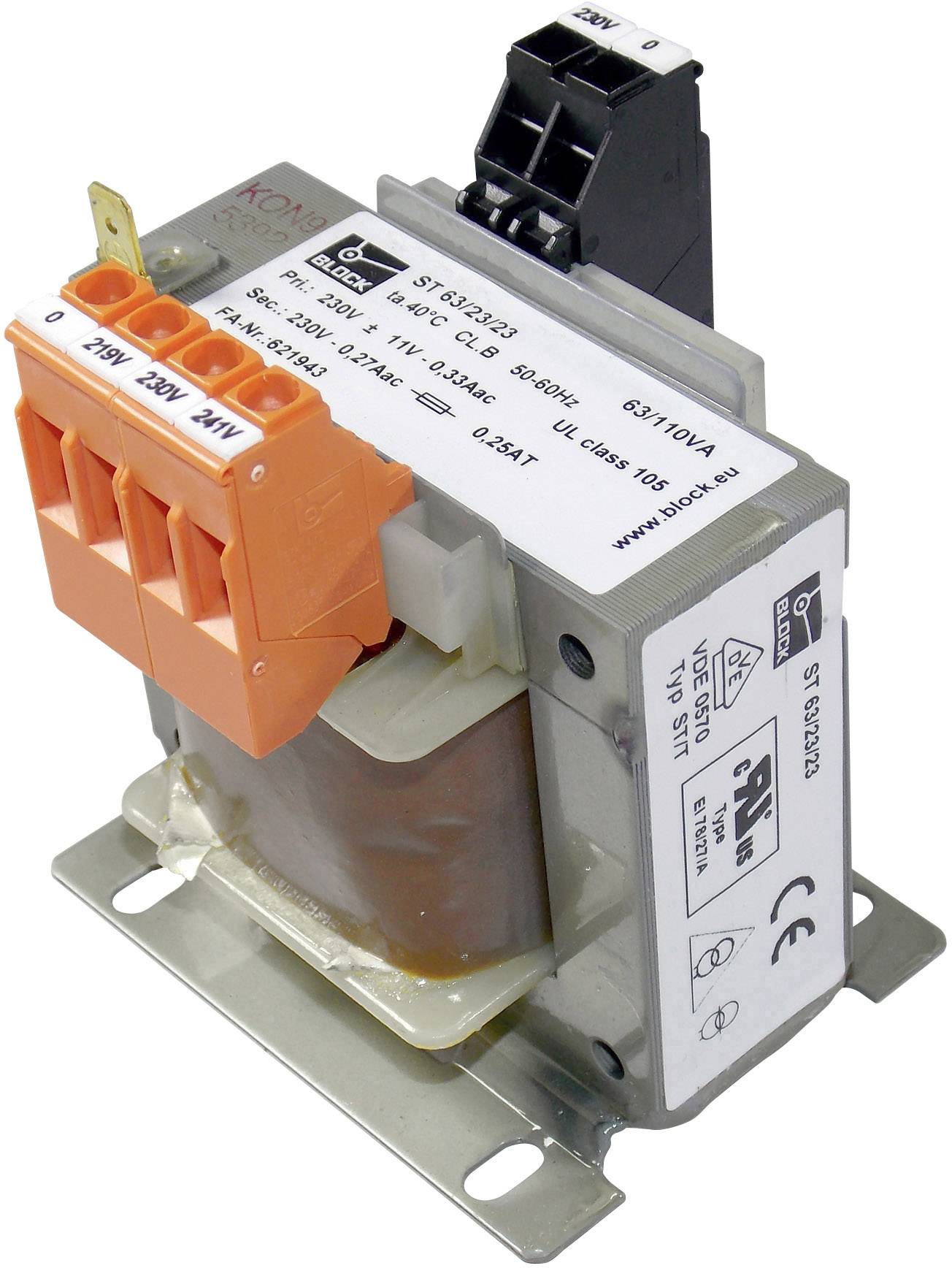

An electrical transformer with multiple terminals and safety markings on a metal enclosure.

Our service for you

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

16 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€ 47.05

plus VAT.

Report legal concerns

Highlights & Details

BLOCK ST 63/23/23 Control transformer, Isolation transformer, Safety transformer 1 x 219 V AC, 230 V AC, 241 V AC 1 x 230 V AC 63 VA

Primary voltage: 230V
Secondary voltage: N/A
Power: 63VA

Technical specifications

Protection class IP 00
Input side ±15 V taps for voltage adjustment
Natural cooling

Product type: Control transformer

Output voltage: 230 V AC

No. of outputs: 1 x

No. of inputs: 1 x

: 63 VA

Input voltage: 219 V AC
230 V AC
241 V AC

Standards: VDE, UL 5085-1/-2, CSA 22.2 NO. 66

Connection: Screw terminal

Width: 78 mm

Height: 89 mm

Length: 60 mm

Dim: (L x W x H) 60 x 78 x 89 mm

Output voltage (number x voltage): 1 x 230 V AC

Design type: open

Input voltage (number x voltage): 1 x 219 V AC, 230 V AC, 241 V AC

Frequency: 50 - 60 Hz

Weight: 1.1 kg

Content: 1 pc(s)

Insulation class: VDE = B, UL = class 105

Mounting type: L-piece

Test mark: cULus recognized

RoHS-compliant: Yes

Protection class: I

Features: +/- 5% input voltage terminal

Type: ST 63/23/23

Max. ambient temperature: +40 °C

Efficiency: 84 %

: 63 VA

Mounting type: M4 screws

Type: ST 63/23/23

Efficiency: 84 %

Fitting method: Base plate

Primary voltage: 230 V

Variants(All information is without VAT, plus shipping costs)

Power

Input voltage

Output voltage

BLOCK ST 1000/4/23 Control transformer, Isolation transformer, Safety transformer 1 x 380 V AC, 400 V AC, 420 V AC 1 x 230 V AC 1000 VA

Item no:1390862

1000 VA

380 V AC400 V AC420 V AC

230 V AC

BLOCK ST 1000/69/23 Control transformer, Isolation transformer, Safety transformer 1 x 655 V AC, 690 V AC, 725 V AC 1 x 230 V AC 1000 VA

Item no:1390863

1000 VA

655 V AC690 V AC725 V AC

230 V AC

BLOCK ST 130/4/23 Control transformer, Isolation transformer, Safety transformer 1 x 380 V AC, 400 V AC, 420 V AC 1 x 230 V AC 130 VA

Item no:1390864

130 VA

380 V AC400 V AC420 V AC

230 V AC

BLOCK ST 130/69/23 Control transformer, Isolation transformer, Safety transformer 1 x 655 V AC, 690 V AC, 725 V AC 1 x 230 V AC 130 VA

Item no:1390865

130 VA

655 V AC690 V AC725 V AC

230 V AC

BLOCK ST 1600/4/23 Control transformer, Isolation transformer, Safety transformer 1 x 380 V AC, 400 V AC, 420 V AC 1 x 230 V AC 1600 VA

Item no:1390866

1600 VA

380 V AC400 V AC420 V AC

230 V AC

BLOCK ST 1600/69/23 Control transformer, Isolation transformer, Safety transformer 1 x 655 V AC, 690 V AC, 725 V AC 1 x 230 V AC 1600 VA

Item no:1390867

1600 VA

655 V AC690 V AC725 V AC

230 V AC

BLOCK ST 100/23/12 Control transformer, Isolation transformer, Safety transformer 1 x 219 V AC, 230 V AC, 241 V AC 1 x 12 V AC 100 VA

Item no:715250

100 VA

219 V AC230 V AC241 V AC

12 V AC

BLOCK ST 100/23/23 Control transformer, Isolation transformer, Safety transformer 1 x 219 V AC, 230 V AC, 241 V AC 1 x 230 V AC 100 VA

Item no:715262

100 VA

219 V AC230 V AC241 V AC

230 V AC

BLOCK ST 100/23/24 Control transformer, Isolation transformer, Safety transformer 1 x 219 V AC, 230 V AC, 241 V AC 1 x 24 V AC 100 VA

Item no:715275

100 VA

219 V AC230 V AC241 V AC

24 V AC

BLOCK ST 100/4/23 Control transformer, Isolation transformer, Safety transformer 1 x 380 V AC, 400 V AC, 420 V AC 1 x 230 V AC 100 VA

Item no:715288

100 VA

380 V AC400 V AC420 V AC

230 V AC

Documents & Downloads

Datasheet

Datasheet 715887 BLOCK ST 63/23/23 Control transformer, Isolation transformer, Safety transformer 1 x 219 V AC, 230 V AC, 241 V AC 1 x 23

User & Safety Instructions

User & Safety Instructions 715887 BLOCK ST 63/23/23 Control transformer, Isolation transformer, Safety transformer 1 x 219 V AC, 230 V AC, 241 V AC 1 x 23

Conformity certificate

Conformity certificate 715887 BLOCK ST 63/23/23 Control transformer, Isolation transformer, Safety transformer 1 x 219 V AC, 230 V AC, 241 V AC 1 x 23

Certificate

Certificate 715887 BLOCK ST 63/23/23 Control transformer, Isolation transformer, Safety transformer 1 x 219 V AC, 230 V AC, 241 V AC 1 x 23

Description

Low inrush current control, safety, or isolation current transformer with screw connection terminals.
