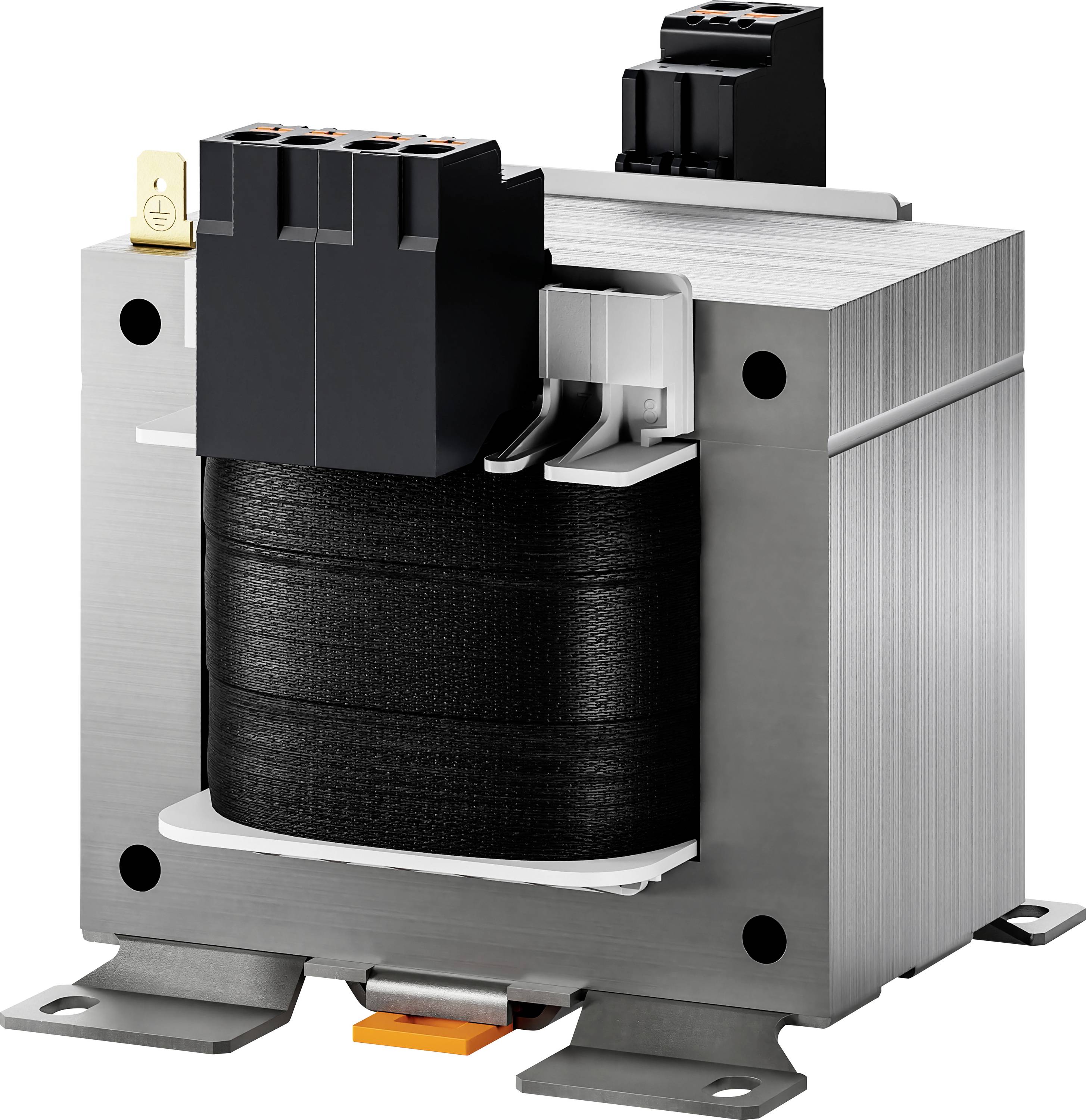

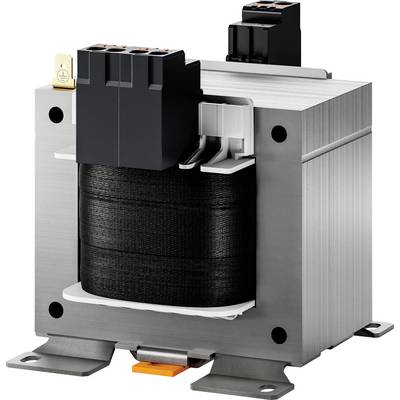

BLOCK STE 160/4/23 Control transformer, Isolation transformer 1 x 380 V AC, 400 V AC, 420 V AC 1 x 230 V AC 160 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 60.50 / piece)
€
Highlights & Details
BLOCK STE 160/4/23 Control transformer, Isolation transformer 1 x 380 V AC, 400 V AC, 420 V AC 1 x 230 V AC 160 VA
- Primary voltage 230 and 400 V
- Output 63 - 2500 VA
Technical specifications
- Protection class IP 00
- Primary ±15 V taps for voltage adjustment.
- Natural cooling
- Product type
Control transformer
- Output voltage
230 V AC
- No. of outputs
1 x
- No. of inputs
1 x
160 VA
- Input voltage
380 V AC
400 V AC
420 V AC
- Standards
UL 5085, CSA 22.2 (E103521)
- Connection
Push-in connector
- Width
96 mm
- Height
104 mm
- Length
102 mm
- Dim
(L x W x H) 102 x 96 x 104 mm
- Output voltage (number x voltage)
1 x 230 V AC
- Design type
Open
- Input voltage (number x voltage)
1 x 380 V AC, 400 V AC, 420 V AC
- Frequency
50 - 60 Hz
- Weight
2 kg
- Content
1 pc(s)
- Insulation class
VDE = B, UL = 130
- Mounting type
L-piece
DIN rail
- Test mark
cULus recognized
- RoHS-compliant
Yes
- Protection class
I
- Features
+/- 5% input voltage terminal
- Type
STE 160/4/23
- Max. ambient temperature
+40 °C
- Efficiency
90 %
160 VA
- Mounting type
M5 screws
- Type
STE 160/4/23
- Efficiency
90 %
- Fitting method
Up to 250 VA: CombiBoard for TS-35 rail
- Primary voltage
400 V
Documents & Downloads
Datasheet
Datasheet 716109 BLOCK STE 160/4/23 Control transformer, Isolation transformer 1 x 380 V AC, 400 V AC, 420 V AC 1 x 230 V AC 160 VA
User & Safety Instructions
User & Safety Instructions 716109 BLOCK STE 160/4/23 Control transformer, Isolation transformer 1 x 380 V AC, 400 V AC, 420 V AC 1 x 230 V AC 160 VA
Description
Low inrush current control, safety, or isolation current transformer with CAGE-CLAMP connection terminals.
Features
- Very good switch-on behavior due to reduced switch-on currents
- High power density thanks to a compact design concept
- Taps on the primary side for voltage adjustment
- This text is machine translated.
