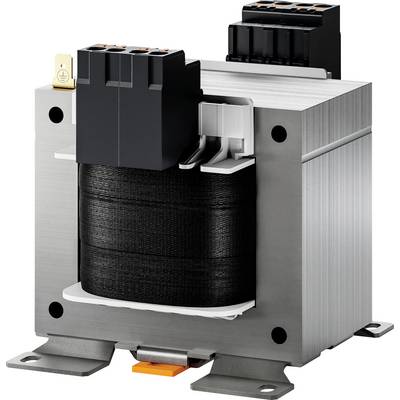

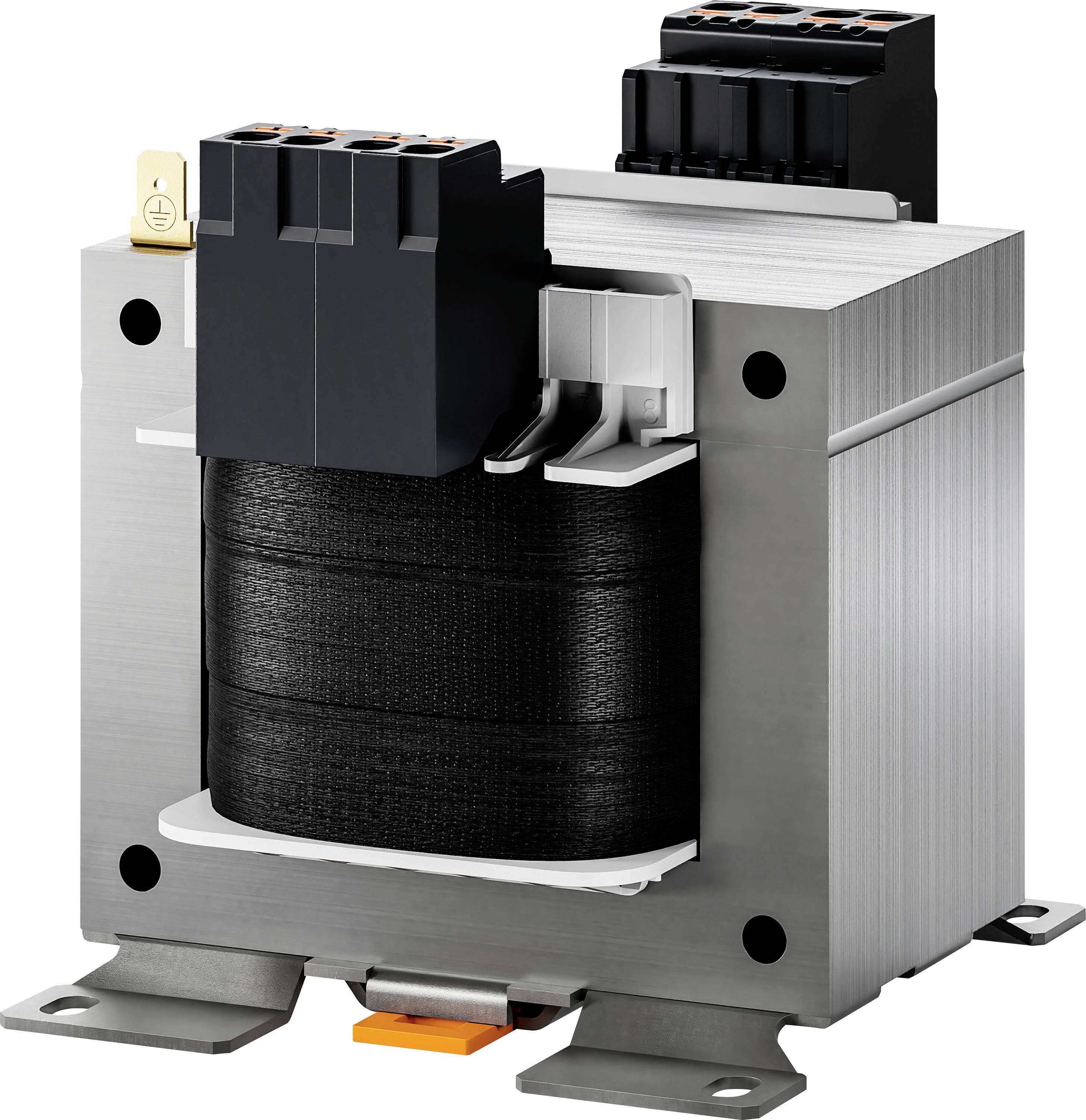

Name: BLOCK STEU 100/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC
Brand: BLOCK
SKU: 1390885
Availability: SoldOut

BLOCK STEU 100/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC-0

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 77.99 / piece)

€ 77.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

BLOCK STEU 100/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 12 V AC, 24 V AC 100 VA

230 V and 400 V input voltage
63 - 2500 VA

Technical specifications

Protection class IP 00
Primary ±15 V taps for voltage adjustment.
Natural cooling

Product type: Control transformer

Output voltage: 12 V AC
24 V AC

No. of outputs: 2 x

No. of inputs: 1 x

: 100 VA

Input voltage: 215 V AC
230 V AC
245 V AC
385 V AC
400 V AC
415 V AC

Standards: UL 5085-1/-2, CSA 22.2 No. 66

Connection: Push-in connector

Width: 84 mm

Height: 96 mm

Length: 85 mm

Dim: (L x W x H) 85 x 84 x 96 mm

Output voltage (number x voltage): 2 x 12 V AC, 24 V AC

Design type: Open

Input voltage (number x voltage): 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC

Frequency: 50 - 60 Hz

Weight: 2.10 kg

Content: 1 pc(s)

Insulation class: VDE = B, UL = 130

Mounting type: L-piece
DIN rail

Test mark: cULus recognized

RoHS-compliant: Yes

Protection class: I

Features: +/- 15 V input voltage terminal

Type: STEU 100/24

Max. ambient temperature: +40 °C

Efficiency: 86 %

Cooling: Natural cooling

Fitting method: Screw, mounting rail (TS to 250 VA)

Variants(All information include VAT, plus shipping costs)

Output voltage

Power

BLOCK STEU 100/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 12 V AC, 24 V AC 100 VA

Item no:1390885

Unavailable

Conrad Electronic

This article

12 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

BLOCK STEU 100/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 100 VA

Item no:710326

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

115 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

BLOCK STEU 100/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 24 V AC, 48 V AC 100 VA

Item no:716989

Fast track dispatch on Wed 4 Nov

13 Piece(s)Conrad Electronic

24 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

BLOCK STEU 1000/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 1000 VA

Item no:710352

Fast track dispatch on Wed 4 Nov

16 Piece(s)Conrad Electronic

115 V AC

1000 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 224.99^*

BLOCK STEU 1000/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 24 V AC, 48 V AC 1000 VA

Item no:717504

Fast track dispatch on Wed 4 Nov

7 Piece(s)Conrad Electronic

24 V AC

1000 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 229.99^*

BLOCK STEU 160/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 160 VA

Item no:710378

Fast track dispatch on Wed 4 Nov

3 Piece(s)Conrad Electronic

115 V AC

160 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

BLOCK STEU 160/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 12 V AC, 24 V AC 160 VA

Item no:710391

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

12 V AC

160 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

BLOCK STEU 160/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 24 V AC, 48 V AC 160 VA

Item no:717534

Fast track dispatch on Wed 4 Nov

8 Piece(s)Conrad Electronic

24 V AC

160 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

BLOCK STEU 1600/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 1600 VA

Item no:717570

Fast track dispatch on Wed 4 Nov

5 Piece(s)Conrad Electronic

115 V AC

1600 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 349.00^*

BLOCK STEU 250/23 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC 2 x 115 V AC, 230 V AC 250 VA

Item no:710404

Fast track dispatch on Wed 4 Nov

8 Piece(s)Conrad Electronic

115 V AC

250 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Documents & Downloads

Datasheet

Datasheet 1390885 BLOCK STEU 100/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC

User & Safety Instructions

User & Safety Instructions 1390885 BLOCK STEU 100/24 Control transformer, Safety transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC

Description

Low power on current control, safety, or isolation transformer with tension spring clamps and dual purpose foot plate for screw and rail mounting (TS-35 rail to 250 VA) as per DIN 50022.

Hints

For dimensions see technical data sheet.

Description

Low power on current control, safety, or isolation transformer with tension spring clamps and dual purpose foot plate for screw and rail mounting (TS-35 rail to 250 VA) as per DIN 50022.
