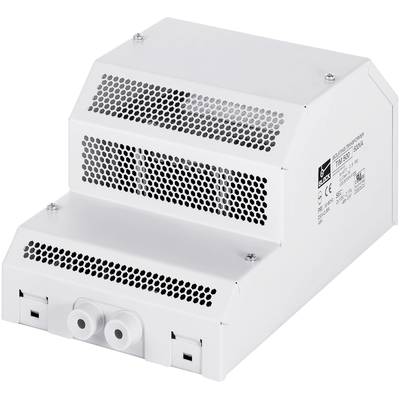

BLOCK TIM 200 Isolation transformer 1 x 230 V AC 2 x 115 V AC 200 VA
EAN:
Part number:
Item no:
Number
Total (€ 121.84 / piece)
€
Only 2 Piece(s) available
Highlights & Details
Isolating Transformer Series TIM
- This text is machine translated.
Technical specifications
- Product type
Isolation transformer
- Output voltage
115 V AC
- No. of outputs
2 x
- No. of inputs
1 x
200 VA
- Input voltage
230 V AC
- Standards
As per IEC 61558-2-4, DIN EN 61558-2-4, VDE 0570 Part 2-4
- Connection
Screw terminal
- Dim
- Output voltage (number x voltage)
2 x 115 V AC
- Design type
Encapsulated, cast in insulated casing
- Input voltage (number x voltage)
1 x 230 V AC
- Frequency
50 - 60 Hz
- Weight
3.6 kg
- Content
1 pc(s)
- Insulation class
A
- Mounting type
Screw fastening
- Test mark
VDE
- RoHS-compliant
Yes
- Protection class
II
- Type
TIM 200
- Max. ambient temperature
+40 °C
- Efficiency
89.5 %
200 VA
- Output voltage
2 x 115 V
- Input voltage
230 V
- Efficiency
89.4 %
- Fitting method
Hole opening in terminal connection box
- Primary voltage
230 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 710771 BLOCK TIM 200 Isolation transformer 1 x 230 V AC 2 x 115 V AC 200 VA
Description
Double voltage for series or parallel switching. Integrated short circuit and overload protection
