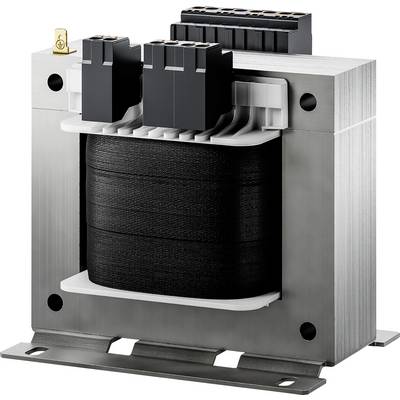

Name: BLOCK USTE 630/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V
Brand: BLOCK
SKU: 1390961
Availability: BackOrder

BLOCK USTE 630/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V -0

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Control, security, isolation transformer series USTE

1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC
2 x 12 V AC, 24 V AC
630 VA

Technical specifications

Product type: Control transformer

Output voltage: 12 V AC
24 V AC

No. of outputs: 2 x

No. of inputs: 1 x

: 630 VA

Input voltage: 208 V AC
230 V AC
380 V AC
400 V AC
415 V AC
440 V AC
460 V AC
480 V AC
500 V AC
525 V AC
550 V AC
575 V AC
600 V AC
Show more

Standards: VDE 0570 Part 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC EN 61558-2-2, UL 5085-1/2, CSA 22.2 No.66

Connection: Push-in connector

Width: 150 mm

Height: 143 mm

Length: 117 mm

Dim: (L x W x H) 117 x 150 x 143 mm

Output voltage (number x voltage): 2 x 12 V AC, 24 V AC

Design type: Open

Input voltage (number x voltage): 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC

Frequency: 50 - 60 Hz

Weight: 7.90 kg

Content: 1 pc(s)

Insulation class: VDE = B, UL = class 130

Mounting type: L-piece
DIN rail

Test mark: cULus Listed

RoHS-compliant: Yes

Protection class: I

Type: USTE 630/2x12

Max. ambient temperature: +40 °C

Efficiency: 93 %

Variants(All information include VAT, plus shipping costs)

Output voltage

Power

BLOCK USTE 630/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 630 VA

Item no:1390961

Available soon

Conrad Electronic

This article

12 V AC

630 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

BLOCK USTE 100/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 100 VA

Item no:1390950

Fast track dispatch on Wed 4 Nov

8 Piece(s)Conrad Electronic

115 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

BLOCK USTE 100/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 100 VA

Item no:1390951

Fast track dispatch on Wed 4 Nov

8 Piece(s)Conrad Electronic

12 V AC

100 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

BLOCK USTE 1000/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 1000 VA

Item no:1390952

Fast track dispatch on Wed 4 Nov

3 Piece(s)Conrad Electronic

115 V AC

1000 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

BLOCK USTE 1600/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 1600 VA

Item no:1390953

Available soon

Conrad Electronic

115 V AC

1600 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 369.00^*

BLOCK USTE 250/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 250 VA

Item no:1390954

Fast track dispatch on Wed 4 Nov

10 Piece(s)Conrad Electronic

115 V AC

250 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

BLOCK USTE 2500/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 2500 VA

Item no:1390956

Available soon

Conrad Electronic

115 V AC

2500 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 549.00^*

BLOCK USTE 3200/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 3200 VA

Item no:1390957

Available soon

Conrad Electronic

115 V AC

3200 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 845.00^*

BLOCK USTE 400/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 400 VA

Item no:1390958

Fast track dispatch on Wed 4 Nov

11 Piece(s)Conrad Electronic

115 V AC

400 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

BLOCK USTE 400/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 400 VA

Item no:1390959

Fast track dispatch on Wed 4 Nov

2 Piece(s)Conrad Electronic

12 V AC

400 VA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Documents & Downloads

Datasheet

Datasheet 1390961 BLOCK USTE 630/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V

User & Safety Instructions

User & Safety Instructions 1390961 BLOCK USTE 630/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V

Description

Control transformers of the series UST serve for universal voltage adjustment and safe galvanic isolation of the primary circuit from the secondary circuit. The unique Block IMPEX vacuum impregnation method protects well against external influences while reducing noise. The installation is done quickly and easily by means of innovative push-in-clamp technology.
