Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7

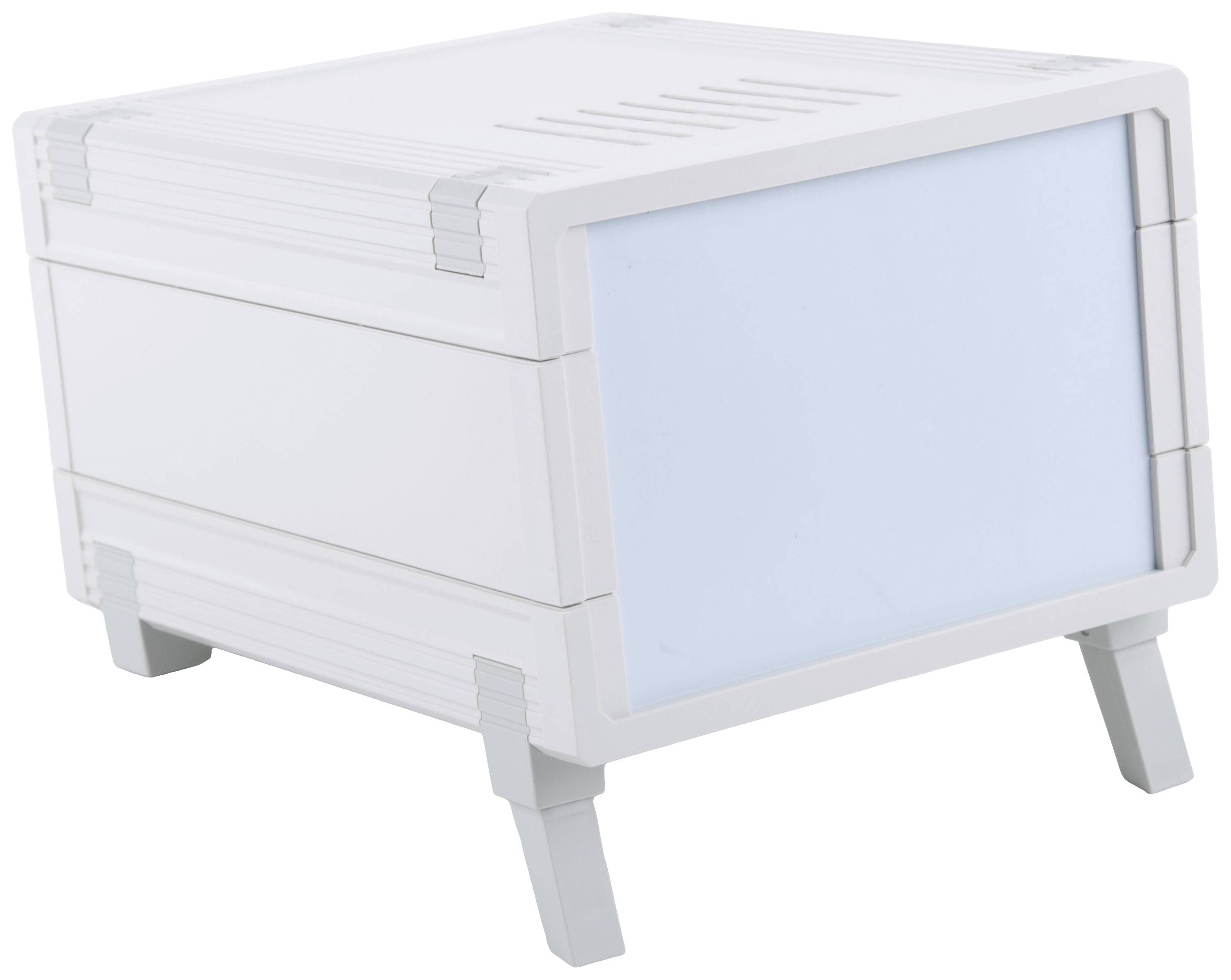

A white, rectangular enclosure with a blue screen sits on four short legs. It has a simple, modern design.
Plastic enclosure with removable side panels. Primarily suitable for electronic devices or circuitry.
1/2
Product type
Desktop case
Material
Acrylonitrile butadiene styrene
IP rating
IP30
Width
198.90 mm
Height
108 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 85.99 / piece)
€ 85.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

UM 32018 L ULTRAMAS SET

  • Base set for vertical or horizontal useFront plates, 2 mm, aluminum, anodized and natural colorsHue enclosure light gray similar RAL 7035, flap and feet agate gray similar. RAL 7038PROTECTION CLASS IP30 / DIN EN 60529

Our service for you

Technical specifications

  • Internal dimensions (LxWxH) 129.5 x 187.3 x 92.2 mm
Product type

Desktop case

Material

Acrylonitrile butadiene styrene

IP30

Factory colour

Grey-white (RAL 7035)

Front panel size

2 mm

Length

157.50 mm

Width

198.90 mm

Height

108 mm

Content

1 Set

Dim

(L x W x H) 157.50 x 198.90 x 108 mm

RoHS-compliant

Yes

Type

UM 32018 L SET

Documents & Downloads

Datasheet

Datasheet 2634518 Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7

User & Safety Instructions

User & Safety Instructions 2634518 Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7

Download

Download 2634518 Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7

Download 2634518 Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7

Description

The classical table case system is made from two plastic half-shells made from ABS and front plates made from aluminum. All housing parts are screwed together with high-quality brass threaded inserts. Permanently reliable opening and closing is ensured. In the interior there are versatile recordings for conducting boards (horizontal and vertical).

This text is machine translated.

Scope of delivery

  • 1 x housing
  • 1 x body set
  • 2 x aluminum front plates
  • 1 set of mounting feet
