Name: Cable meter 226103 Softing LINKXPERTTP Networks
Brand: Softing
SKU: 3192647
Availability: InStock

Handheld network tester home screen showing app icons for autotest, file manager, settings, wiremap, tone generator, discovery, PoE, ping, link blink, DHCP, traceroute, network discovery, IP scan, CDP, and LLDP.

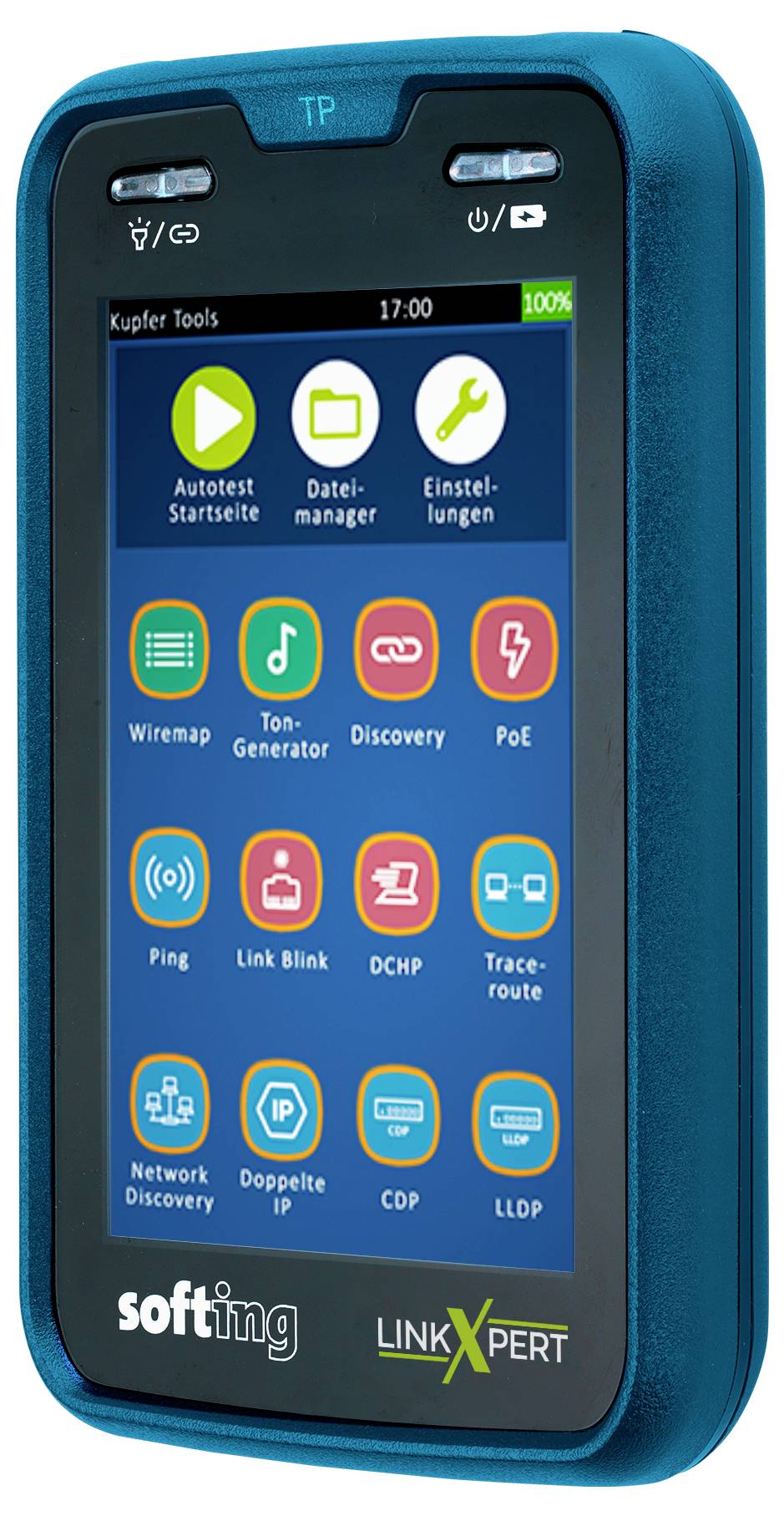

Handheld network tester touchscreen showing a menu of diagnostic tools, including autotest, file manager, settings, wiremap, toning, discovery, PoE, ping, DHCP, traceroute, CDP, and LLDP.<br>

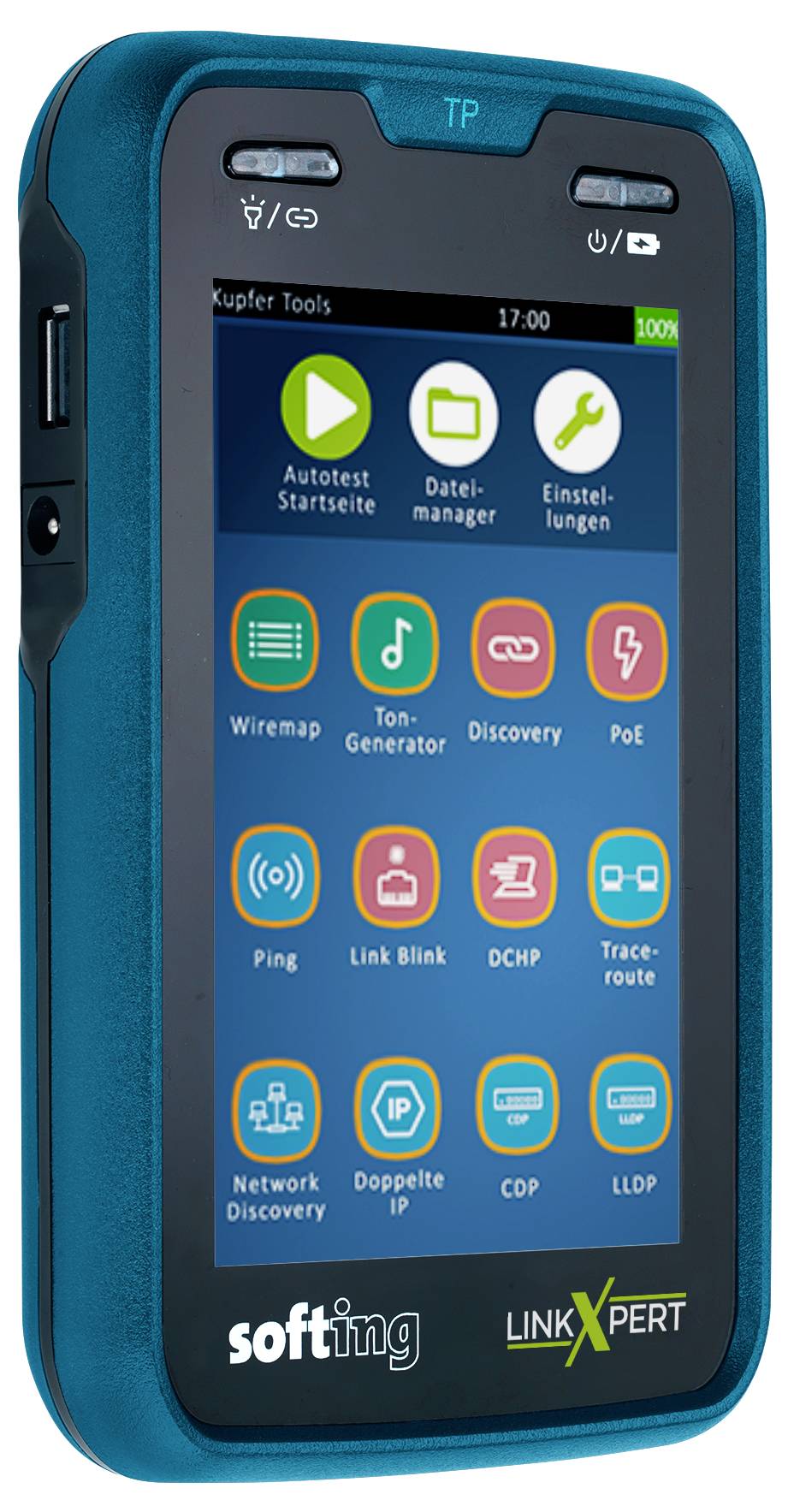

Handheld network testing device showing a touchscreen menu of tools like Wiremap, Tone Generator, Discovery, PoE, Ping, Link Blink, DHCP, Trace-route, and LLDP.

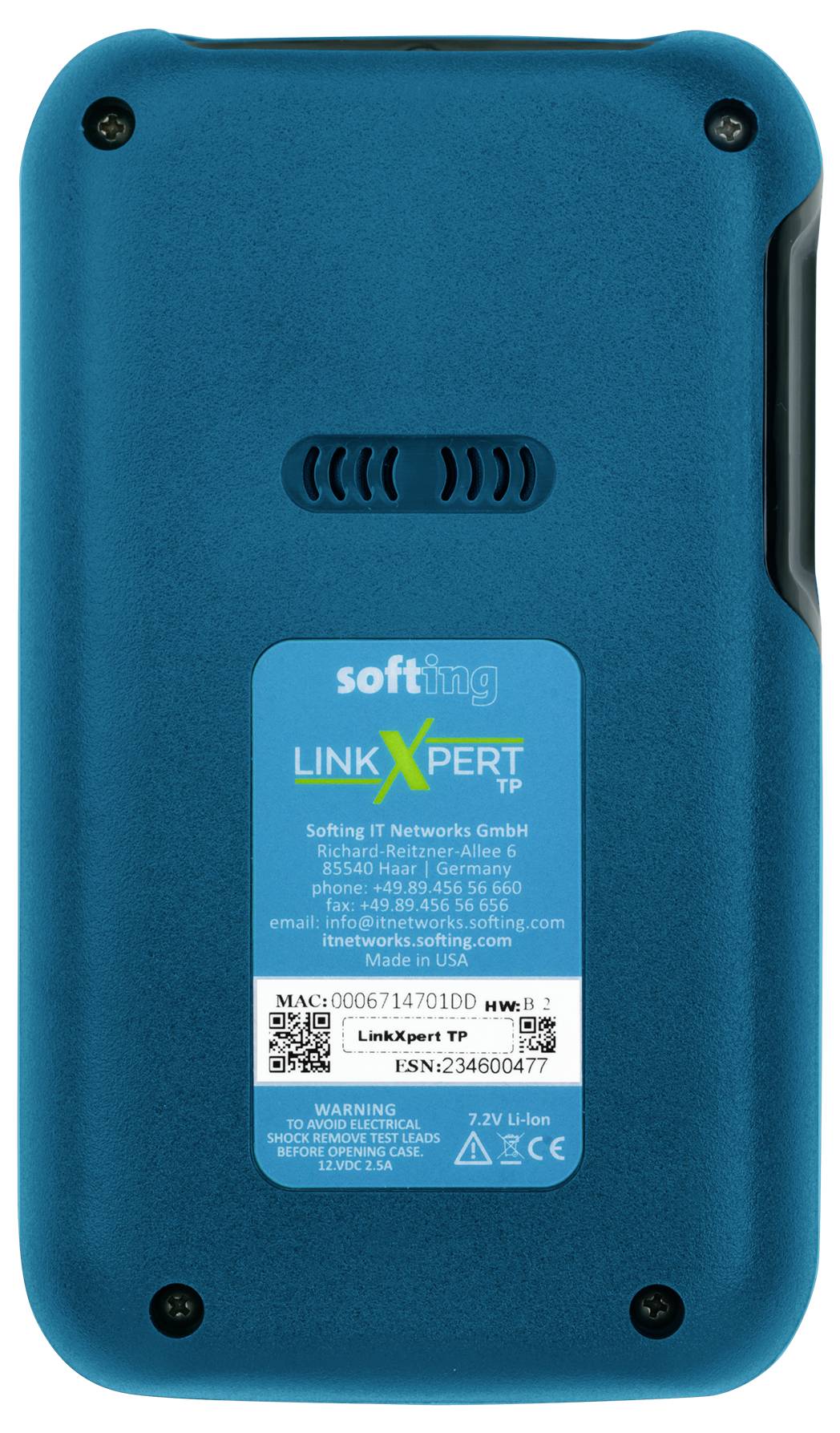

Back view of a blue LinkXpert TP handheld device with a center label, vents, and corner screws.

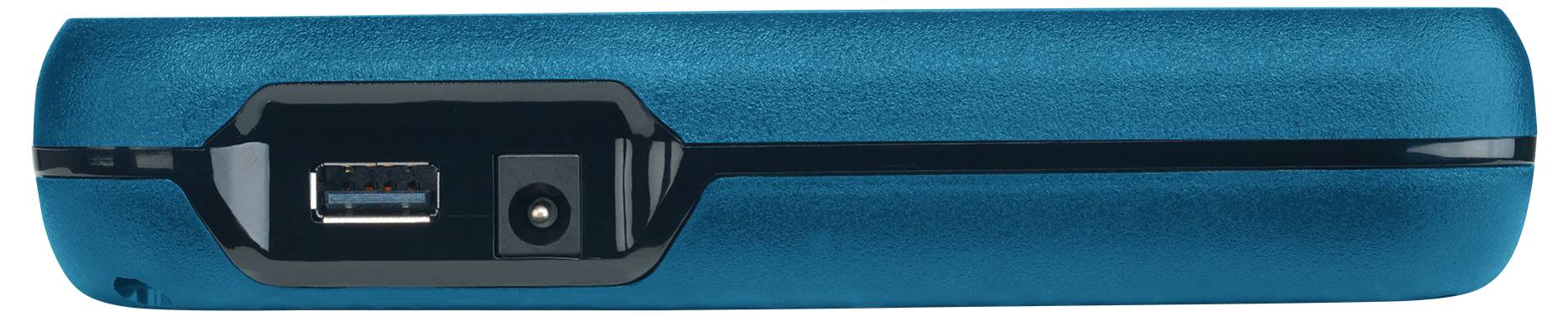

Close-up of a blue portable device with a USB port and small power/input jack on the front.<br>

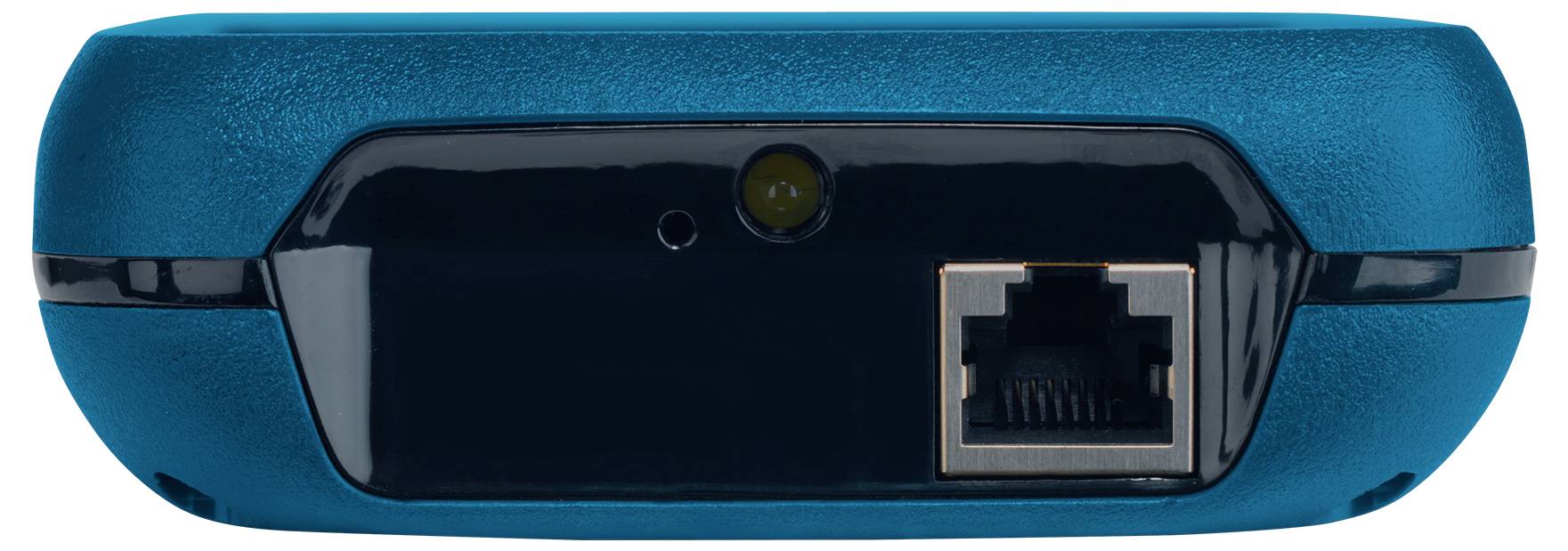

Close-up of a blue network device showing a front Ethernet port and indicator light.

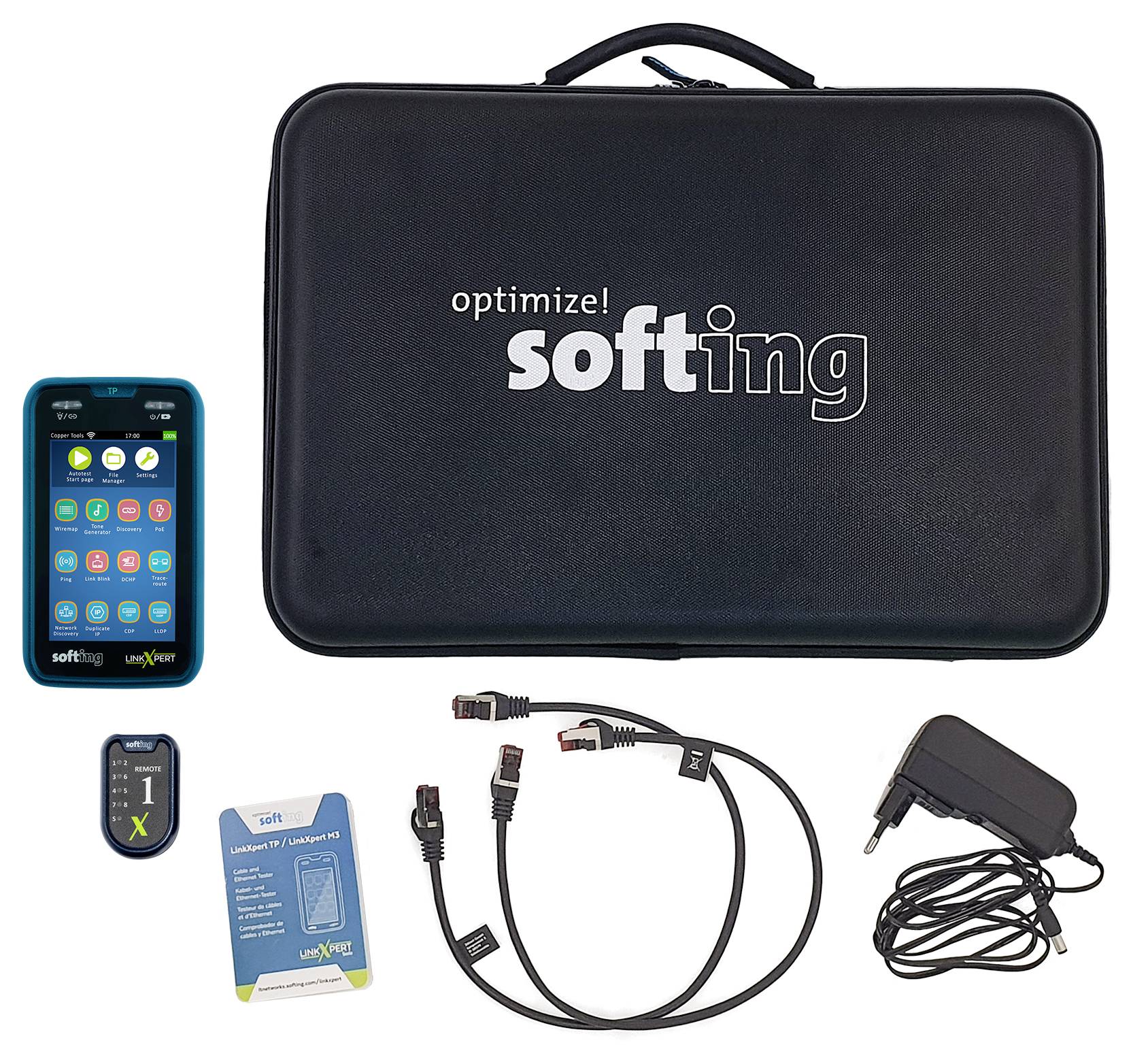

Softing test kit set with a black carrying case, handheld device, adapter card, cable, and power supply.<br>

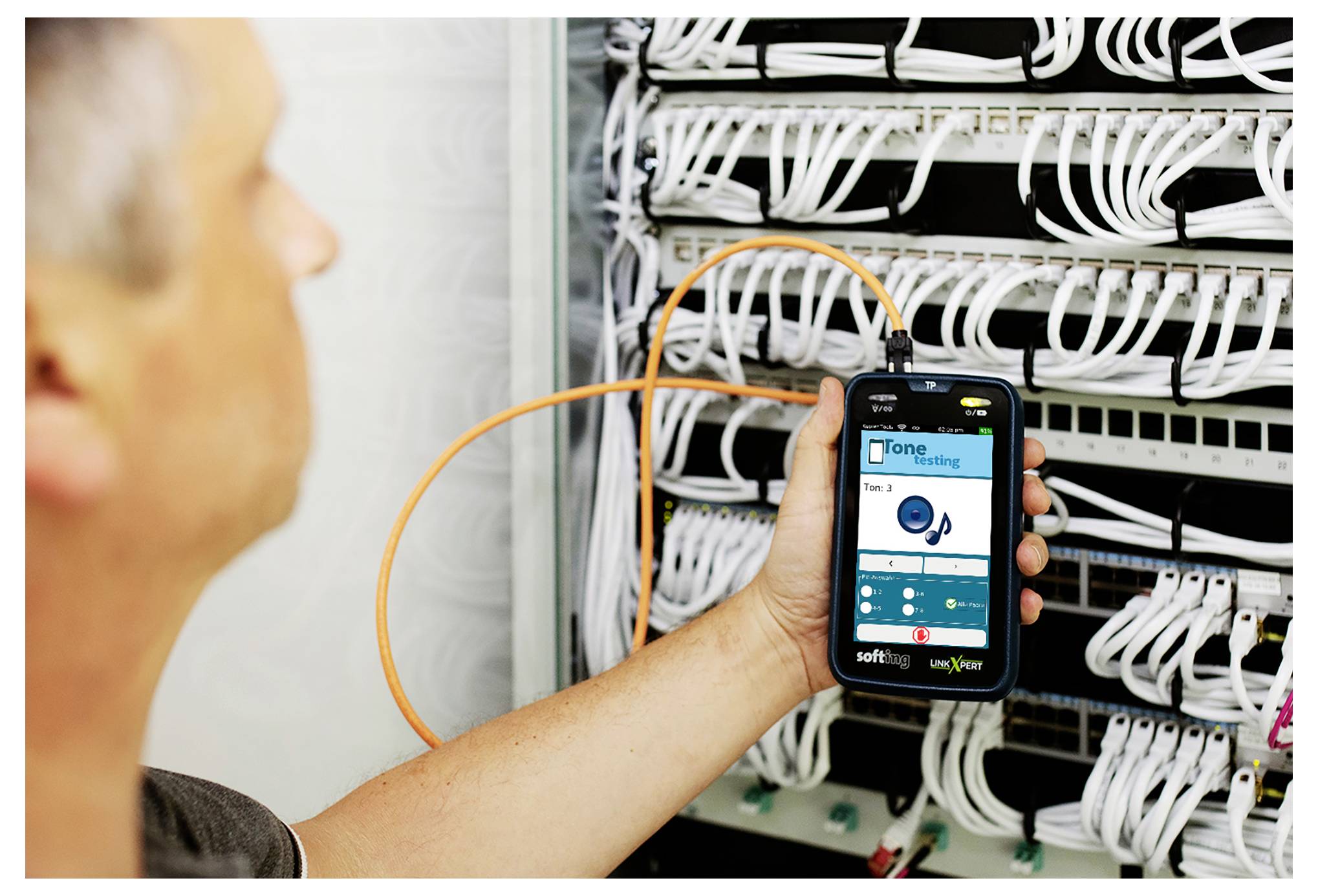

Technician holding a smartphone to inspect network cables in a server rack using a monitoring app.

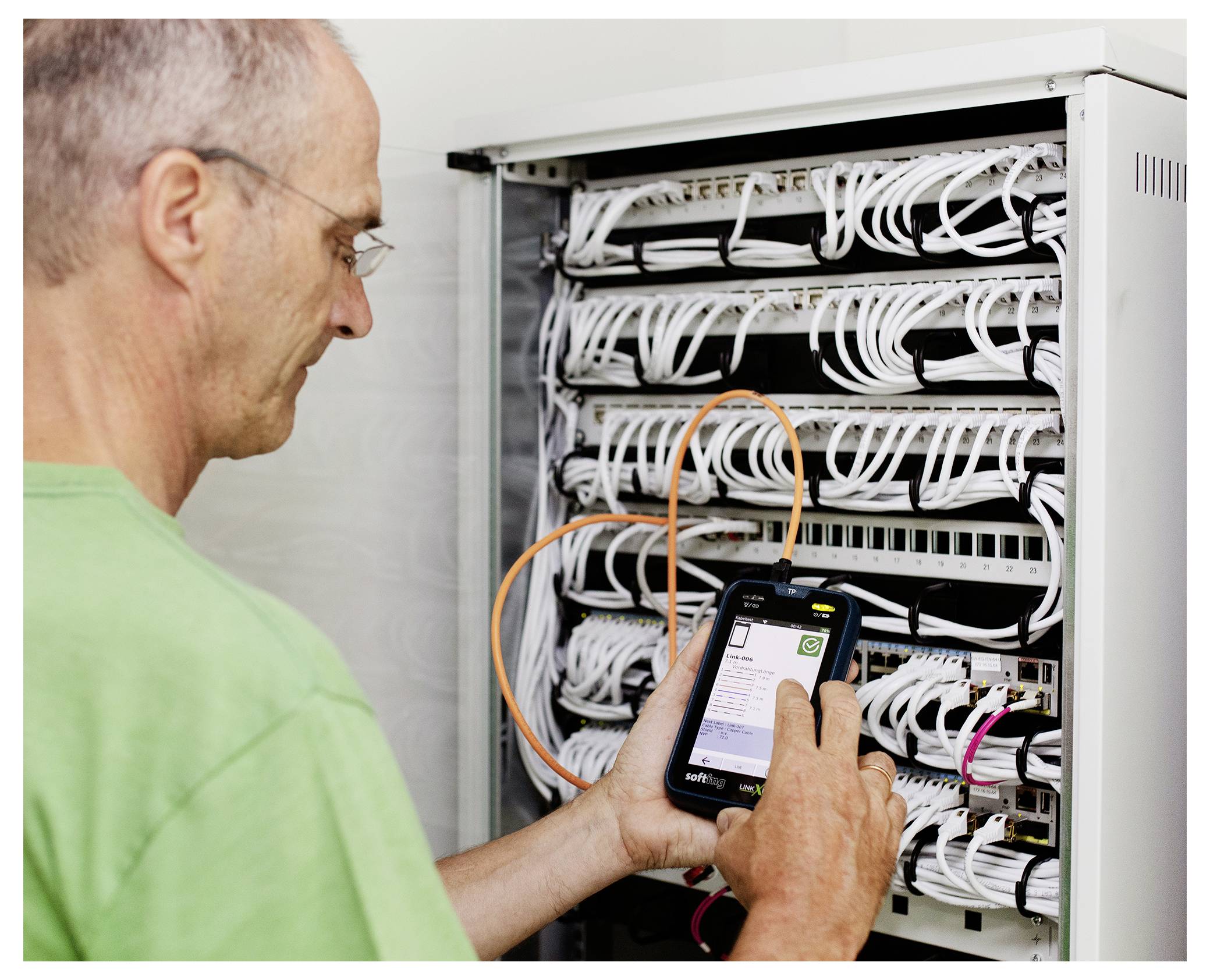

Technician using a smartphone to inspect and troubleshoot network cables in a server rack.

1/9

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,219.00 / piece)

€ 1,219.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LinkXpert TP cable and Ethernet tester for copper networks

Technical specifications

Product type: Cable meter

Function: Location

Acoustic signal: Yes

Display: Touchscreen

Optical display: Yes

Dim: (W x H x D) 93 x 160 x 33 mm

Weight: 2.692

Range: Networks

Features: RJ45 remotes

Width: 93 mm

Height: 160 mm

Depth: 33 mm

Type: LINKXPERTTP

: Connection tester

: Twisted Pair

: TRUE

: Touch screen

: TRUE

: FALSE

: TRUE

: TRUE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3192647 Cable meter 226103 Softing LINKXPERTTP Networks

User & Safety Instructions

User & Safety Instructions 3192647 Cable meter 226103 Softing LINKXPERTTP Networks

Information

Information 3192647 Cable meter 226103 Softing LINKXPERTTP Networks

Description

Cable and network tests are easy and intuitive via large color touch screen
The LinkXpert TP is the perfect companion for installation and documentation as well as troubleshooting copper networks in SoHo, office environments and industrial applications. The device offers a unique combination of cabling tests and comprehensive Ethernet network diagnostics to help users solve everyday Ethernet network problems and keep the network up and running around the clock. For network commissioning, the LinkXpert TP can perform automatic tests, which can be configured individually. All tests can also be performed individually for troubleshooting purposes.

Displays wiring faults according to TIA568 specification.
Determine cable length and distance to breaks in wires, wire pairs or all wires at the same time via TDR test.
Tests twisted-pair network and coaxial cabling.
Detection and load tests on PoE++ up to 90 W power.
Link test up to 1 Gbit/s for determining the link status and speed.
Ethernet troubleshooting features: DHCP, DNS, Ping, Traceroute, Network discovery, Dual address scanner, LLDP, CDP, VLAN.

Warning when detecting pending voltage.
5 1/4" TFT touchscreen.
Tone generator - can be used for cable tracking with a tracing probe (optional accessory).
LED torch for simplified working in dark conditions.
Test report and creation of documentation with PC analysis software or on the device.

Delivery: 1 main unit, 1 RJ45 Smart remote, 2 RJ45 patch cable (50 cm), 1 power supply, 1 manual, 1 transport case

This text is machine translated.
