Buy Charged aerosol detector PCE Instruments PCE-CMM 10 Temperature, Humidity, CO2 USB interface

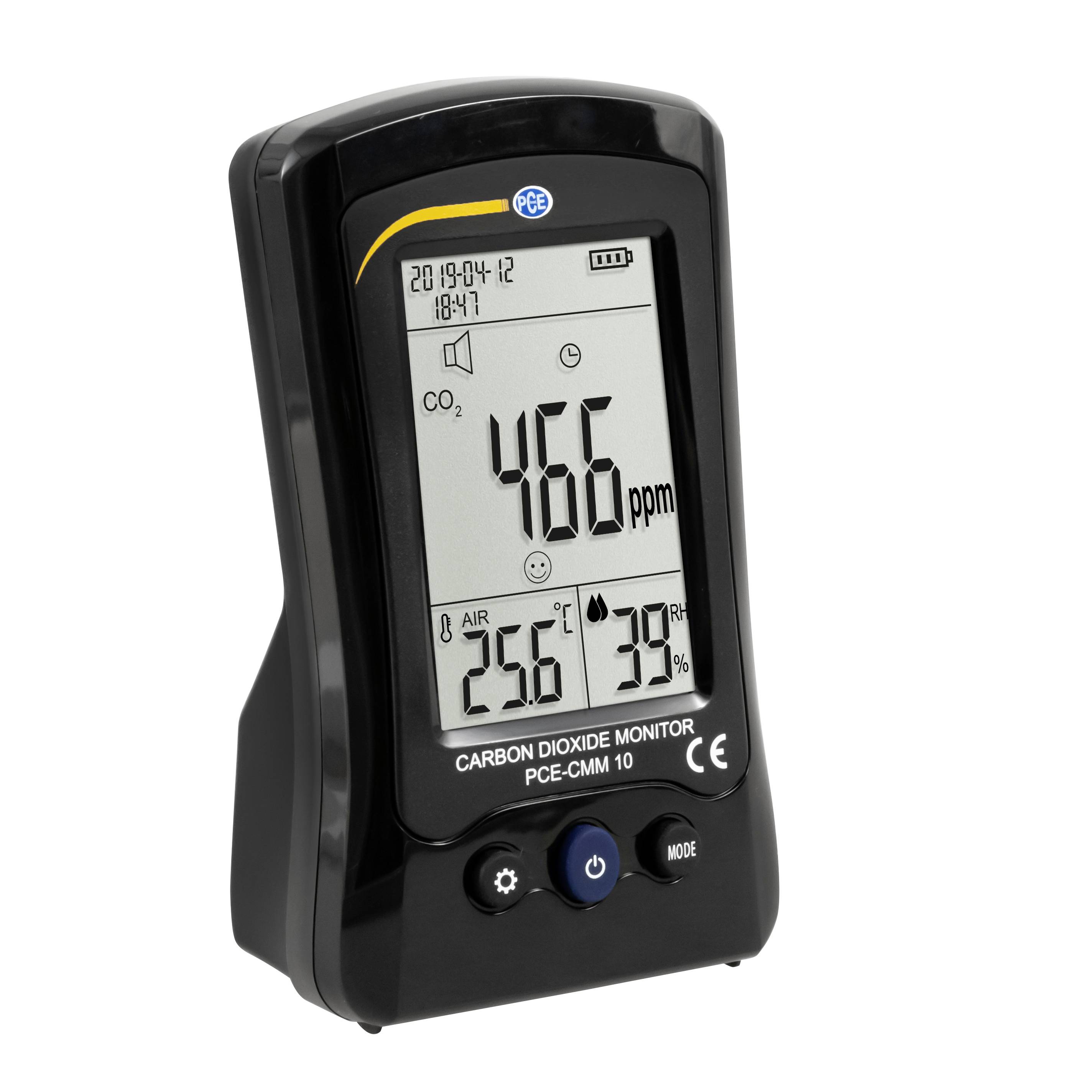

Portable carbon dioxide monitor displaying 466 ppm CO2, 25.6°C air temperature, and 39% humidity on a digital screen.

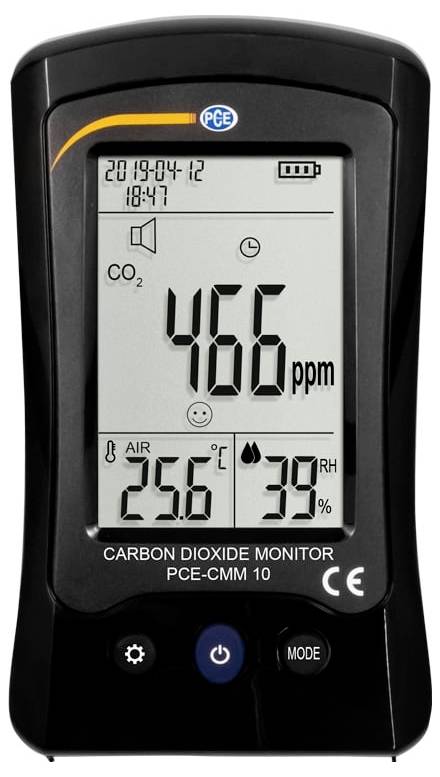

Portable carbon dioxide monitor displaying CO2 at 466 ppm, air temperature 25.6°C, and humidity 39% RH.

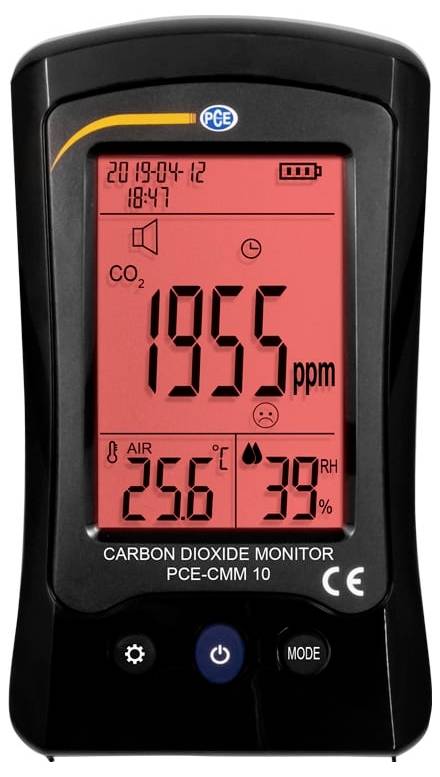

Handheld carbon dioxide monitor showing CO2 at 1955 ppm, air temperature 25.6°C, and humidity 39% RH.

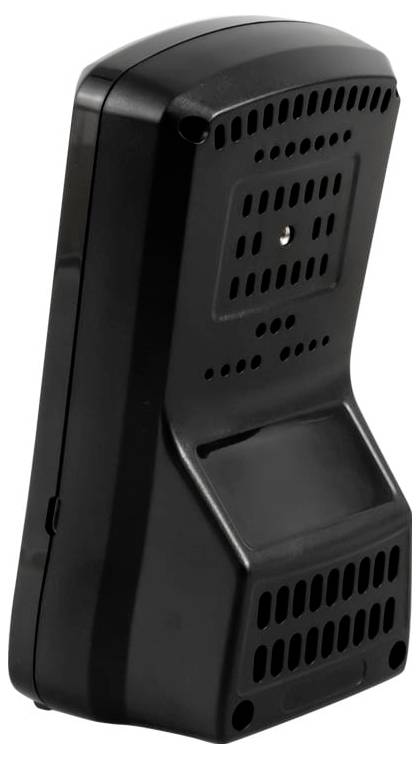

Black wall-mounted electronic device with vented panels, shown in side view on a white background.

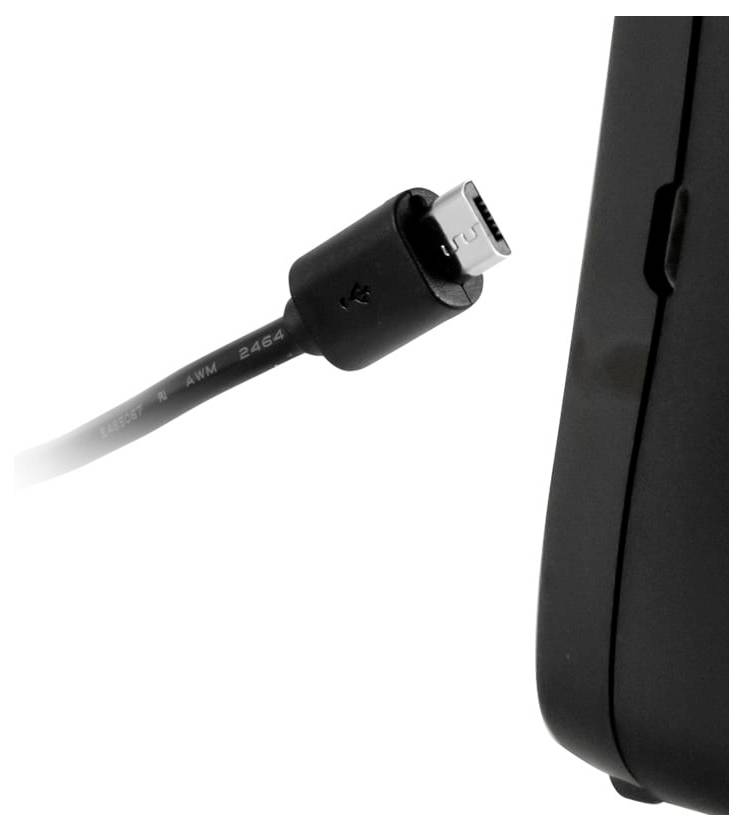

Close-up of a USB cable plug next to the side of a black device, showing where it connects.<br>

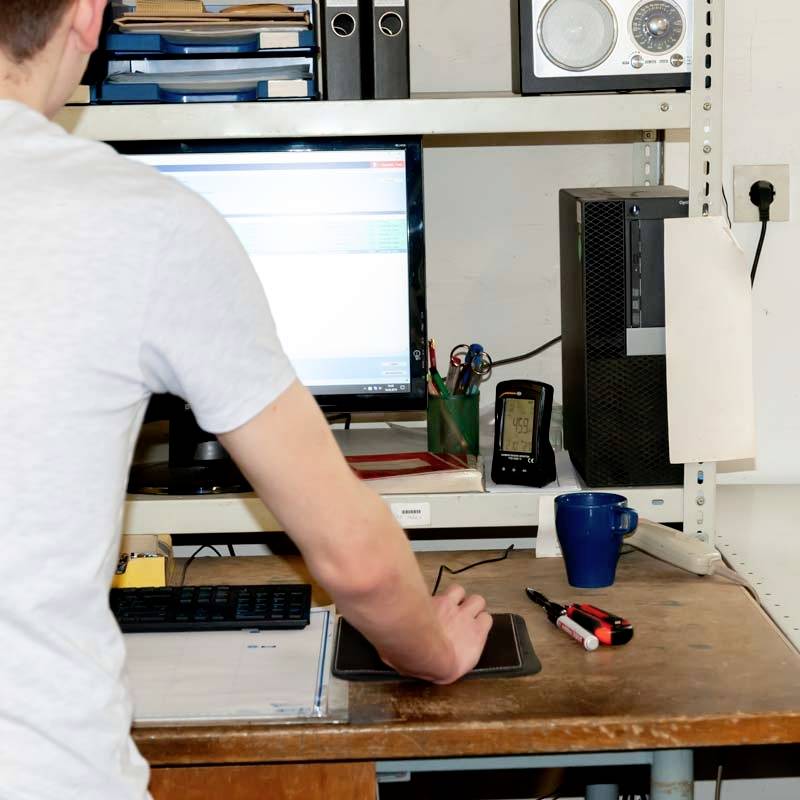

A person is standing at a desk with a computer, displaying a spreadsheet. Office supplies are lying next to the monitor.

1/6

Fast track dispatch on Fri, 11 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 201.67 / piece)

€ 201.67

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

Work safety measuring device PCE-CMM 10

Aerosol meter Operation via accumulatorsAlarm limits 400 ... 5000 ppmTemperature readingVisual and audible alarmsAutomatic switch-offCan be charged via USBUnits can be changedLC display Temperature range -10 ... 50 °CCO2 measurementBattery operationLimit violationBacklightAir temperatureTable caseHumidityAcoustic signal

Technical specifications

Measuring range CO2 400 ... 5000 ppm
Resolution 1 ppm
Accuracy ± (5% + 50 ppm) between 400 ... 2000 ppm and an atmospheric pressure of 1013 mbar
Resolution 0.1 °C
Accuracy ± 1 °C (can be influenced by own waste heat)
Measuring range air humidity 0 ... 99 % r.F.
Resolution 1% r.h.
Accuracy ± (5 % at 25 °C) between 10 ... 90 % r.F.
Sensor NDIR principle
ABC Automatic Baseline Correction
Audio alarm buzzer
Visual alarm
Red backlight
Display 3 inch (7.62 cm) LC-display
Battery display four-stage display
Display frequency 3 seconds
Automatic switch-off, switches off automatically after 2 hours
Background lighting White background lighting
Working conditions 0 ... 50 °C, 0 ... 85 % r.F.
Storage conditions -20 ... 60 °C, 0 ... 95 % r.F.
Power supply in-built 3.7 VDC rechargeable battery.

Product type: Charged aerosol detector

Reading range: -10 - 50 °C

Unit of measurement: Temperature
Humidity
CO2

Features: USB interface

Accuracy: 1 °C

Weight: 195 g

Reading range (max.): 50 °C

Reading range (min.): -10 °C

Width: 55 mm

Height: 130 mm

Length: 75 mm

: Manufacturer's standards (no certificate)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2299553 Charged aerosol detector PCE Instruments PCE-CMM 10 Temperature, Humidity, CO2 USB interface

Description

The aerosol meter is a multi-function meter for measuring the air quality. This aerosol meter synchronously measures the CO2 concentration, the air temperature and the air humidity. In addition, the aerosol meter has permanently programd alarm limits. As soon as the currently measured CO2 measured value exceeds the alarm limit, the alarm switches on. The user is alerted to the aerosol meter by an acoustic and visual signal. With the help of the in-built USB-interface, you can continuously charge the aerosol meter at your PC-workstation, for example. Thanks to the small form, you can position the aerosol meter optimally at your workplace. The 3-inch display and strong backlight ensure you can read the measured values in the best possible way.

This text is machine translated.
