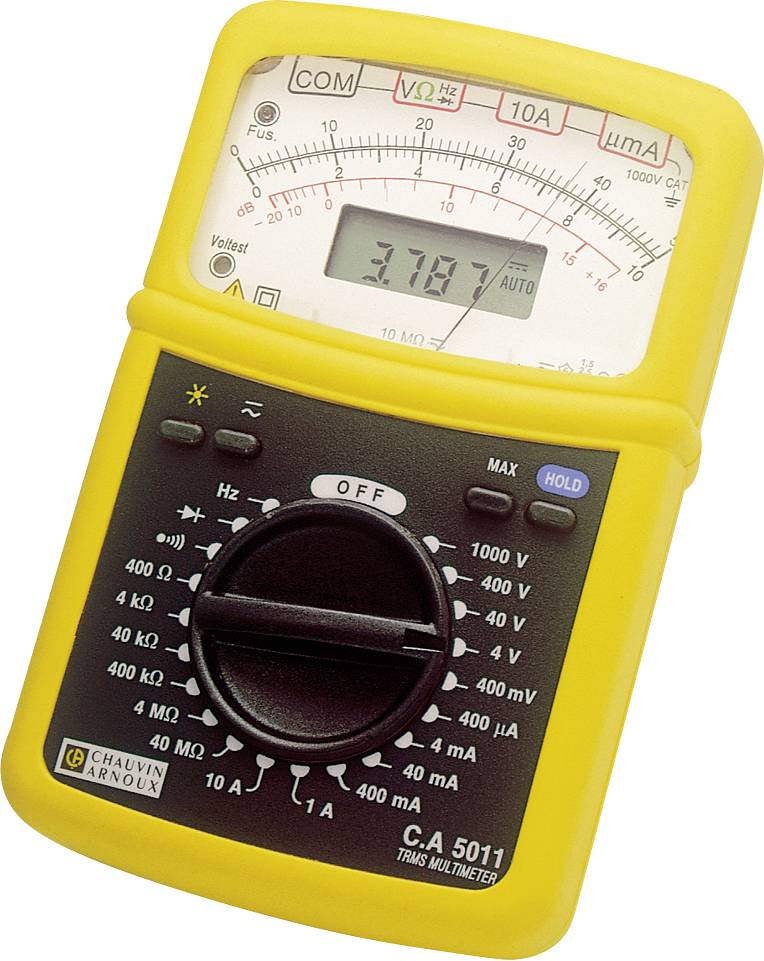

Name: Chauvin Arnoux C.A 5011 Handheld multimeter Digital, Analogue CAT III 1000 V, CAT IV 600 V Display (counts): 4000
Brand: Chauvin Arnoux
SKU: 1432153
Price: 839 EUR
Availability: InStock

Highlights & Details

C.A 5011 incl. transport case

RMS measurement
Illuminated digital display with 4000 digits and analogue display and Nullgalvanomter

Technical specifications

Voltage reading range DC (min.): 400 mV

Product type: Handheld multimeter

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 400 mV

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 400 µA

A DC reading range (max.): 10 A

A AC reading range (min.): 400 µA

Amperage reading range AC (max.): 10 A

Measurement type (details): True RMS

Power supply (details): 9 V battery

Height: 105 mm

Width: 160 mm

Length: 56 mm

Weight: 500 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Current reading: AC/DC

Type: C.A 5011

Display: Digital
Analogue

Display (counts): 4000

Dim: (L x W x H) 56 x 160 x 105 mm

Documents & Downloads

Datasheet

Datasheet 1432153 Chauvin Arnoux C.A 5011 Handheld multimeter Digital, Analogue CAT III 1000 V, CAT IV 600 V Display (counts): 4000

User & Safety Instructions

User & Safety Instructions 1432153 Chauvin Arnoux C.A 5011 Handheld multimeter Digital, Analogue CAT III 1000 V, CAT IV 600 V Display (counts): 4000

Description

High safety through 2 indicator lights:
"Fus": Monitoring of high-power fuse
"VoltestTM": External voltage display at
Resistance measurements
Two supplementary indicators:
Digital with background lighting for high accuracy
Analogue for fast reading and trend detection
Automatic AC/DC detection
Compact, shock-proof casing with versatile
"MultistandTM"-Folding Prop

This text is machine translated.

Scope of delivery

Set of test leads
9 V batteries
User manual
Hard case

Description

High safety through 2 indicator lights:
"Fus": Monitoring of high-power fuse
"VoltestTM": External voltage display at
Resistance measurements
Two supplementary indicators:
Digital with background lighting for high accuracy
Analogue for fast reading and trend detection
Automatic AC/DC detection
Compact, shock-proof casing with versatile
"MultistandTM"-Folding Prop

This text is machine translated.
