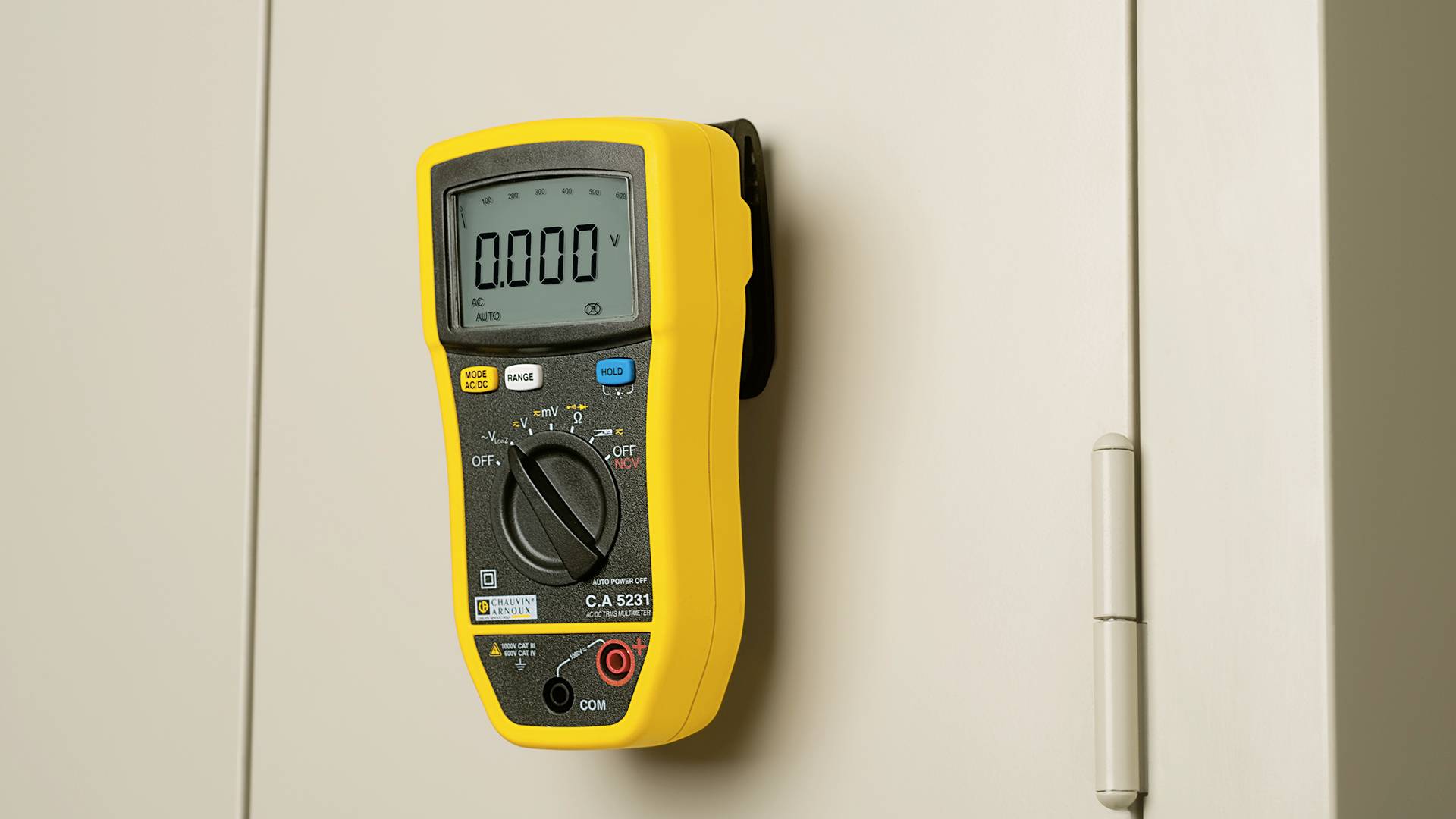

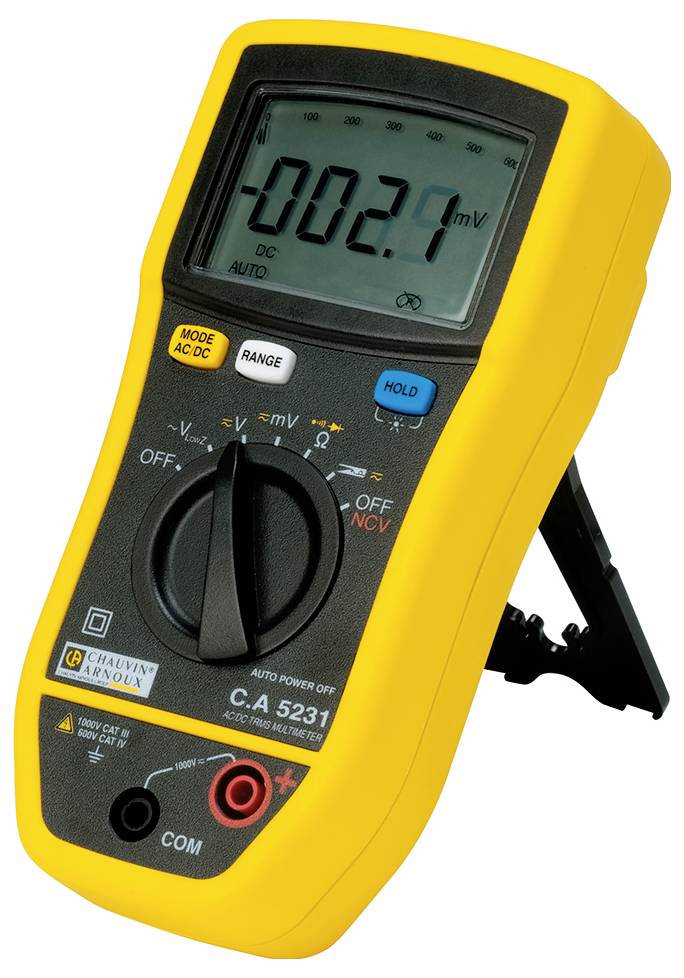

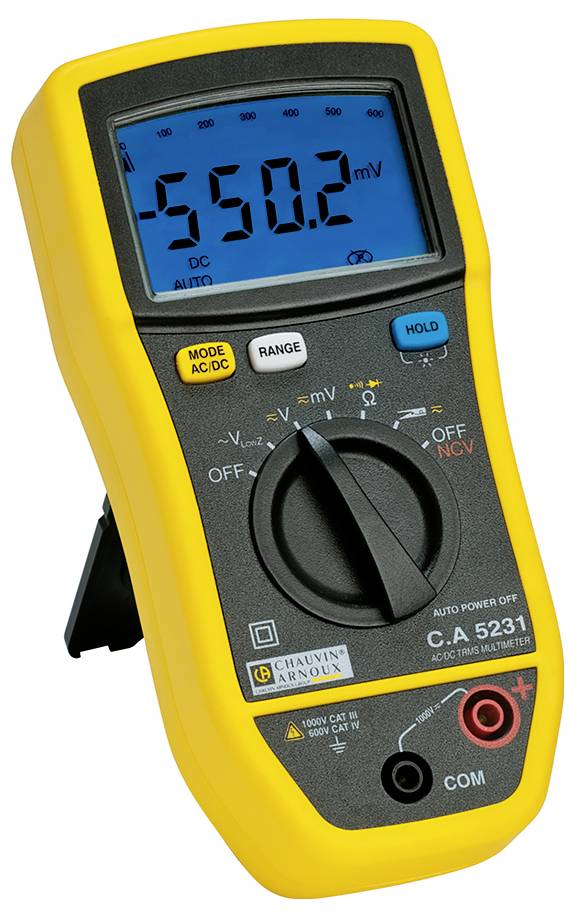

Name: Chauvin Arnoux C.A 5231 + MINI03 Handheld multimeter Digital Splashproof (IP54) CAT IV 600 V Display (counts): 6000
Brand: Chauvin Arnoux
SKU: 1195135
Availability: InStock

Highlights & Details

TRMS digital multimeter AC, DC, AC+DC

IEC 61010
600 V CAT IV
1000 V CAT III

Technical specifications

Display illuminated display 6000 Digit + bar graph with 61 segments
Measuring process True RMS (real effective value)
Auto range or manual range selection Yes
Bandwidth 3 kHz (V) / 1 kHz (A)
Basic accuracy 0.1%
AC voltage 1000 V (6 ranges) - Resolution 0.01 mV
AC-voltage "LowZ" 1000 V (4 ranges) - Resolution: 0.001
DC-voltage 1000 V (6 ranges) - Resolution 0.01 mV
AC/DC-current 600 A (1 area) with current transformer 1 mV/A Resolution: 0.1 A
Resistance measurement 60 MΩ (6 ranges) Resolution: 0.1 Ω
Power supply 9 V alkaline battery (6LF 22)
Protection class IP54
Electrical safety (IEC 61010) 600 V CAT IV / 1000 V CAT III 600 V CAT III/600 V CAT IV
Dimensions 155 x 75 x 55 mm
Weight 320 g.

Product type: Handheld multimeter

Voltage DC reading range (max.): 1000 V

V AC reading range (max.): 1000 V

A DC reading range (max.): 600 A

Amperage reading range AC (max.): 600 A

Basic accuracy: 0.1 %

Measurement type (details): True RMS

Power supply (details): 9 V battery

Height: 245 mm

Width: 140 mm

Length: 155 mm

Weight: 1005 g

: Manufacturer's standards (no certificate)

Reading category: CAT IV 600 V

Current reading: AC/DC

Type: C.A 5231 + MINI03

Display: Digital

Display (counts): 6000

Dim: (L x W x H) 155 x 140 x 245 mm

Features: Splashproof (IP54)

Documents & Downloads

Datasheet

Datasheet 1195135 Chauvin Arnoux C.A 5231 + MINI03 Handheld multimeter Digital Splashproof (IP54) CAT IV 600 V Display (counts): 6000

User & Safety Instructions

User & Safety Instructions 1195135 Chauvin Arnoux C.A 5231 + MINI03 Handheld multimeter Digital Splashproof (IP54) CAT IV 600 V Display (counts): 6000

Description

For all electric installers, for electricians, for heating and air conditioning technicians, for service technicians, these digital multimeter is the perfect instrument. Through the built-in surge protective cover devices are extremely robust.

This text is machine translated.

Features

AC/DC currents up to 10 A or up to 600 A
With pliers converter and direct reading
High sensitivity and resolution up to 0.01 mV
Overload protected up to 8000 V
VLowZ measuring function to avoid measurement errors due to stray voltages

Scope of delivery

2 test leads with test tips
1 alkaline battery 9 V
1 AC clip-on ammeter transformer 100 A
